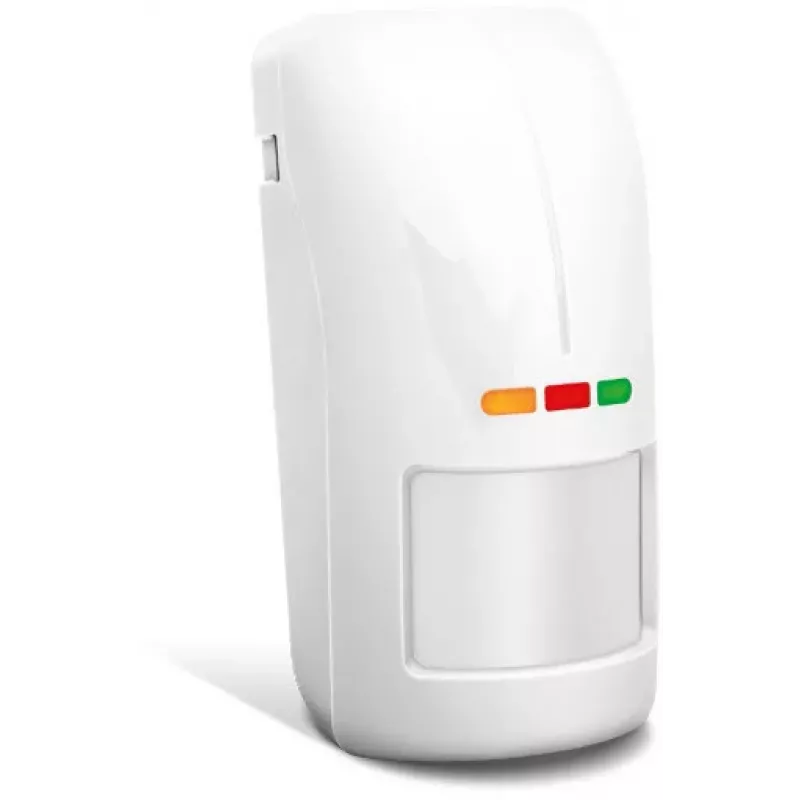

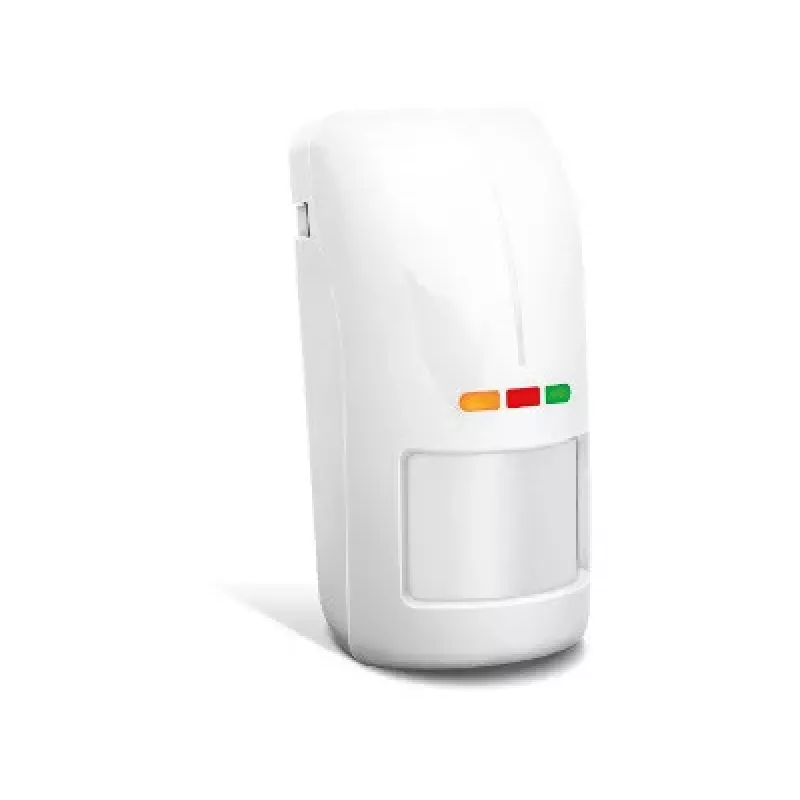

SATEL OPAL vonkajší duálny detektor pohybu, biely

The SATEL OPAL is a professional-grade outdoor dual technology motion detector combining passive infrared (PIR) and microwave (24 GHz) sensors for reliable intrusion detection. Designed for harsh environments, it offers a detection range of 15 m x 15 m (100°) and features active IR anti-masking, pet immunity up to 20 kg, and digital temperature compensation. The detector is housed in a white, IP54-rated enclosure suitable for wall mounting at 2.4 m height.

Advantages

Dual technology reduces false alarms by requiring both PIR and microwave triggers. Active IR anti-masking prevents sabotage. Pet immunity up to 20 kg avoids false triggers from small animals. Wide operating temperature range (-40°C to +55°C) ensures performance in extreme climates. Selectable EOL/2EOL resistors provide flexibility with alarm systems.

Suitable for

• Outdoor perimeter protection for residential and commercial properties
• Areas requiring high security with low false alarm rates
• Integration with SATEL alarm systems and other compatible control panels

Key specifications

• Detection Technology: Dual (PIR + Microwave)

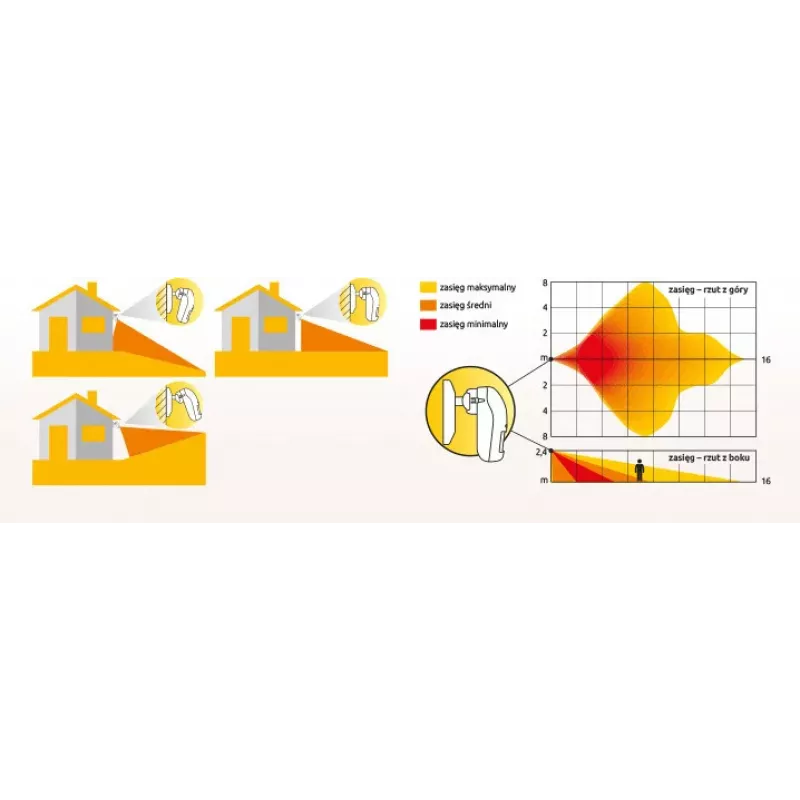

• Detection Range: 15 m x 15 m (100°)
• Microwave Frequency: 24 GHz
• Anti-Masking: Active IR
• Pet Immunity: Up to 20 kg
• Tamper Protection: Against opening and removal
• Power Supply: 12 V DC
• Current Consumption: 20 mA (standby), 28 mA (alarm)
• Alarm Output: NC Relay
• Operating Temperature: -40°C to +55°C
• IP Rating: IP54
• Recommended Mounting Height: 2.4 m
• Colour: White
• Digital Temperature Compensation: Yes
• Adjustable Sensitivity: PIR and MW independently
• EOL/2EOL Resistors: Selectable
• Creep Zone Detection: Yes

Recommendations

For optimal performance, mount the detector at 2.4 m height on a stable wall, avoiding direct sunlight and heat sources. Use with a compatible 12 V DC power supply and connect to an alarm panel supporting NC relay inputs. Test sensitivity settings during installation to suit the specific environment.
