SATEL PERFECTA-IP 64 M alarmová ústredňa

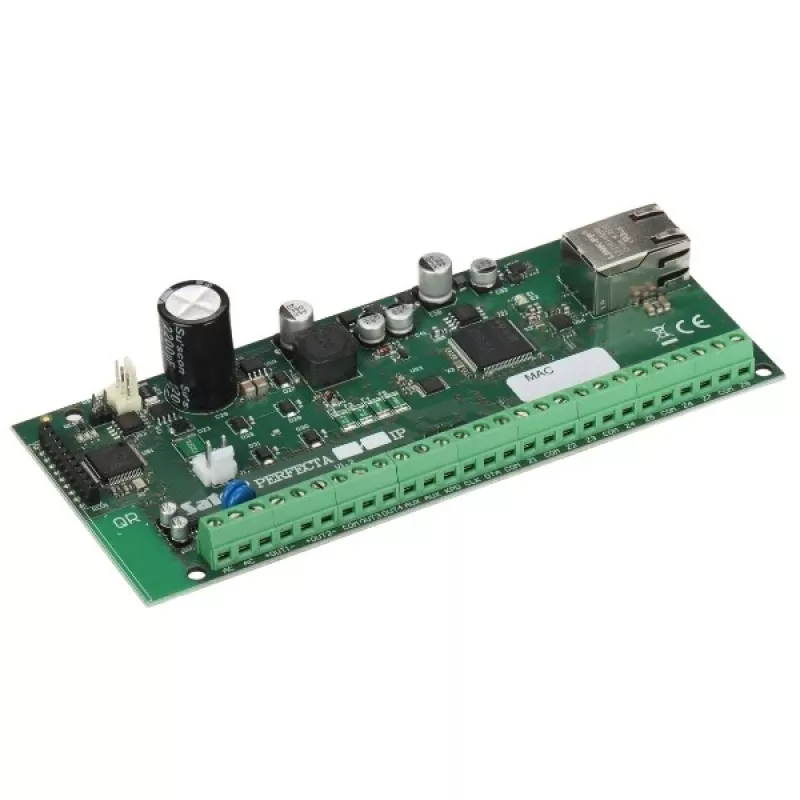

The SATEL PERFECTA-IP 64 M is a versatile alarm control panel designed for medium to large security installations. It supports up to 64 zones (wired or wireless) and offers built-in Ethernet and GPRS/GSM communication with dual SIM slots for reliable remote monitoring and control. The panel features a voice synthesizer, supports up to 15 users, and can be managed via keypads, mobile app (PERFECTA CONTROL), SMS, or voice messages. It is EN 50131 Grade 2 compliant, ensuring high security standards.

Advantages

Flexible zone expansion, dual-path communication (IP + GSM), remote firmware updates, and easy integration with expanders and keypads via a single bus.

Suitable for

• Residential and commercial security systems
• Installations requiring remote control and monitoring
• Upgrading existing wired or wireless alarm systems

Key specifications

• Max. Zones: 64 (wired or wireless)
• On-board Wired Zones: 8 (expandable to 32)
• Max. Outputs: 16 (wired or wireless)
• On-board Wired Outputs: 4 (expandable to 12)
• Communication: Built-in Ethernet and GPRS/GSM (2 SIM slots)
• User Capacity: 15 users + 1 installer
• Partitions: 4
• Event Log: 3584 events
• Power Supply Input: 18V AC
• Auxiliary Power Output: 12V DC / 0.5A
• Operating Temperature: -10°C to +55°C
• Control Methods: Keypads, Mobile App, SMS, Voice Messages
• Voice Synthesizer: Built-in
• Timers: 8
• Firmware Update: Via USB or remotely
• Compliance: EN 50131 Grade 2
• Bus Type: 1 bus for expanders and keypads
• Remote Configuration Software: DLOADX

Recommendations

For optimal performance, use SATEL expanders and keypads. Ensure proper power supply and antenna placement for GSM communication.
