SATEL PRF-LCD LCD klávesnica pre sériu PERFECTA

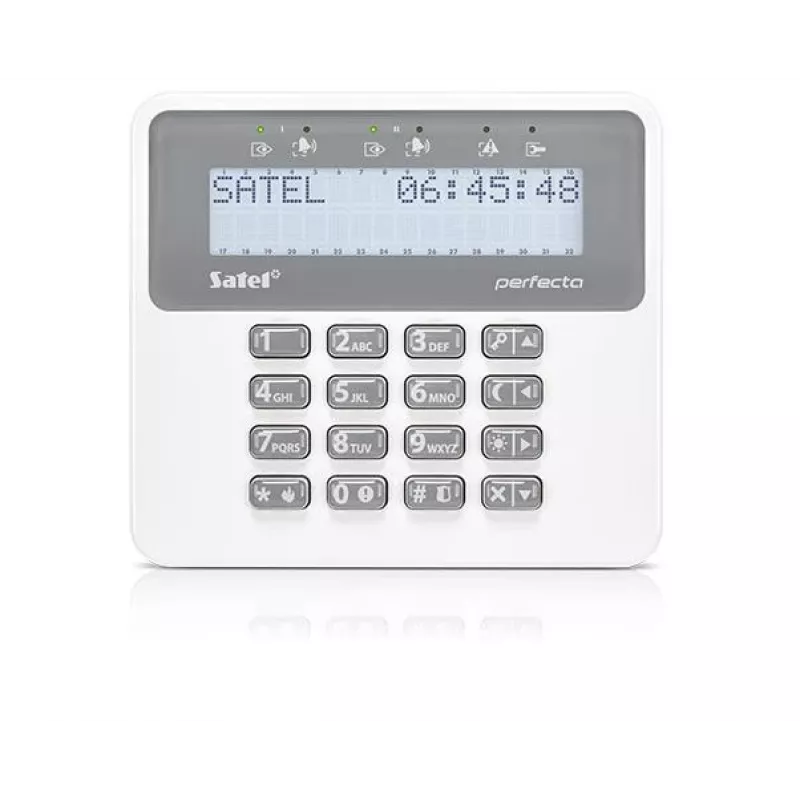

The SATEL PRF-LCD is a wall-mounted LCD keypad designed for use with SATEL PERFECTA series control panels. It features a 2-line, 16-character LCD display with blue backlight and a backlit keypad for easy operation in low-light conditions. The keypad provides system status indication via LEDs, acoustic signaling via a built-in buzzer, and function keys for quick system control. It communicates via the SATEL Bus and is powered directly from the control panel (12 V DC). The enclosure includes tamper protection against opening and detachment from the wall. The keypad is white and made of durable plastic.

Advantages

Clear LCD display with blue backlight for easy reading. Backlit keypad ensures usability in darkness. Built-in buzzer for audible feedback. Tamper protection enhances security. Simple wall-mount installation.

Suitable for

• SATEL PERFECTA 16, 32, 32-WRL, 64 M, and 64 M-WRL control panels
• Residential and commercial security systems
• Users requiring a reliable and intuitive keypad interface

Key specifications

• Display: LCD, 2 lines x 16 characters, blue backlight
• Keypad backlight: Yes
• Communication: SATEL Bus
• Power supply: 12 V DC (from control panel)
• Max current consumption: 110 mA
• Operating temperature: -10°C to +55°C
• Tamper protection: Enclosure opening and wall detachment
• LED indicators: Yes
• Function keys: Yes
• Acoustic signaling: Yes (built-in buzzer)
• Installation: Wall-mounted
• Enclosure material: Plastic
• Colour: White

Recommendations

For optimal performance, pair the PRF-LCD with a compatible SATEL PERFECTA control panel. Ensure proper wiring and mounting according to the installation manual.
