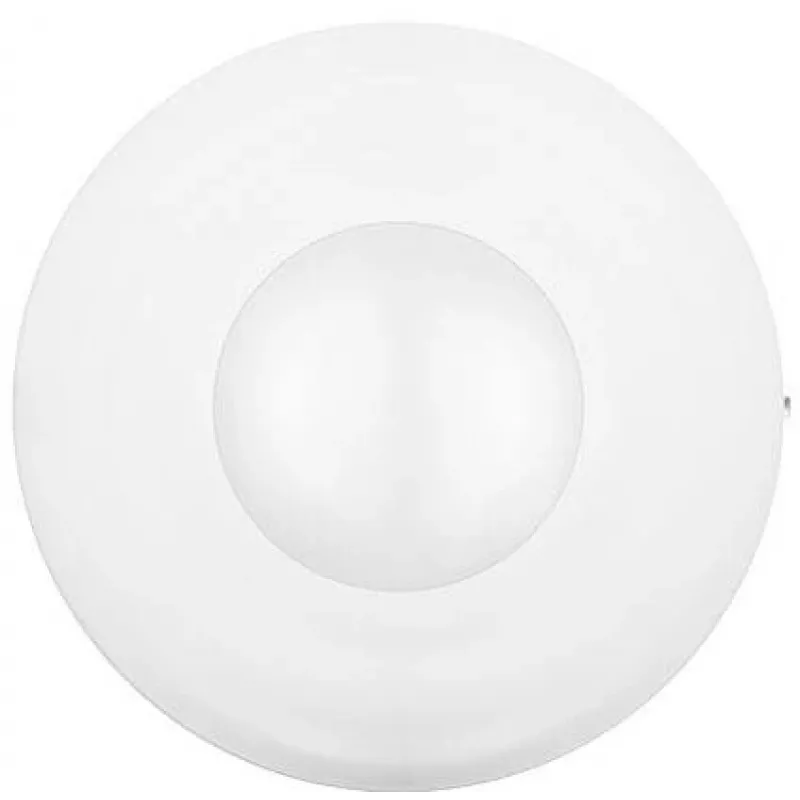

SATEL SLIM-S-DUAL-PRO stropný duálny detektor pohybu s antimaskovaním, povrchová montáž

The SATEL SLIM-S-DUAL-PRO is a ceiling-mounted dual technology motion detector combining passive infrared (PIR) and microwave (MW) sensors for reliable intrusion detection. Designed for indoor use, it features anti-masking protection based on microwave technology, ensuring that attempts to cover or block the sensor are detected. The detector offers a detection range of 15 m x 15 m and is suitable for surface mounting at a recommended height of 2.4 m.

Advantages

Dual technology (PIR + MW) reduces false alarms by requiring both sensors to trigger. Anti-masking feature prevents tampering. Pet immunity up to 20 kg allows use in homes with pets. Independent sensitivity adjustment for PIR and MW provides flexibility. LED alarm indication for easy status verification.

Suitable for

• Indoor security systems in residential and commercial premises
• Ceiling-mounted installations where wide-area coverage is needed
• Applications requiring tamper-resistant detection

Key specifications

• Detection method: Dual Technology (PIR + Microwave)
• Microwave frequency: 24.125 GHz
• Detection range: 15 m x 15 m
• Recommended mounting height: 2.4 m
• Supply voltage: 12 V DC (±15%)
• Max current consumption: 20 mA
• Standby current consumption: 12 mA
• Alarm output: NC (Normally Closed)
• Tamper output: NC (Normally Closed)
• EOL resistor support: 2EOL/NC, 3EOL/NC
• Operating temperature: -10°C to +55°C
• Environmental class: II (EN 50130-5)
• IP rating: IP20
• Housing material: ABS Plastic
• Colour: White

Recommendations

For optimal performance, mount the detector at the recommended height of 2.4 m and ensure the area is free from obstructions. Use with a compatible alarm control panel that supports NC inputs and EOL resistors.
