Pohybový senzor ALLNET ALL3051 infračervený senzor káblový nástenný biely

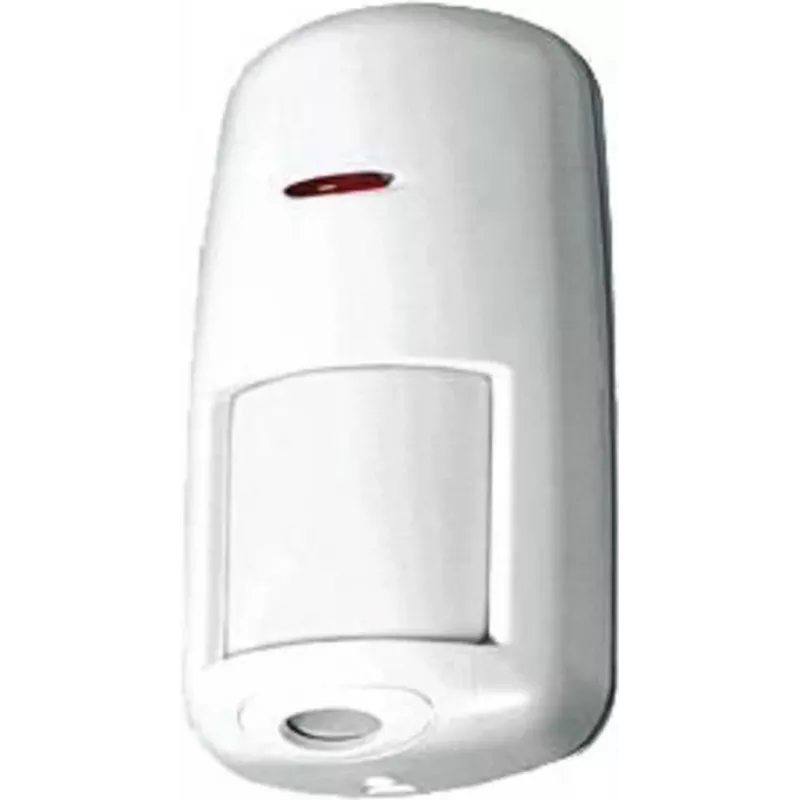

The ALLNET ALL3051 is a wired infrared motion detector designed for wall mounting. Compatible with ALL3000, 3418v2, 3500, 400x, 4500 and 5000 control panels, it provides a 90° detection angle (changeable lens included) and a manual detection range of up to 15 x 15 m. The unit uses a passive infrared sensor with high noise immunity and includes an NC tamper switch and a 1 m connection cable for integration into security or automation systems.

Advantages

The ALL3051 delivers reliable passive infrared motion detection with extremely high noise immunity to reduce false alarms. A changeable lens (standard set to 90°) and manual range adjustment allow flexible installation for different coverage needs. Built-in NC tamper protection and a 1 m cable simplify secure mounting and wiring to compatible alarm/control units.

Suitable for

• Indoor perimeter and room intrusion detection
• Integration with ALLNET alarm or automation control panels (ALL3000/3418v2/3500/400x/4500/5000)
• Areas requiring reliable, low-noise PIR sensing such as corridors, offices and storage rooms
• Wall-mounted installations where a 90° field of view and up to 15 m range are required

Key specifications

• Sensor type: Passive infrared (PIR)
• Detection angle: 90° (standard lens; changeable)
• Maximum manual range: up to 15 x 15 m
• Compatibility: ALL3000, 3418v2, 3500, 400x, 4500, 5000
• Tamper: NC tamper switch
• Cable: 1 m wired connection
• Color: White

How to use

Mount the ALL3051 on a wall at the recommended height for the monitored area, aiming the lens toward the expected motion path. Connect the 1 m cable to the compatible control panel according to the panel wiring diagram and secure the unit so the NC tamper switch is engaged. Adjust the lens and set the manual detection range as needed (up to 15 x 15 m) to optimize coverage and minimize blind spots. Test the detector after installation to confirm reliable activation and correct wiring with your alarm or automation system.

Recommendations

Install the detector away from direct sunlight, heating vents or air-conditioning outlets and avoid mounting facing reflective surfaces to preserve detection reliability. Use the changeable lens and range adjustment to tailor coverage to the room layout and perform a walk-test after installation to verify correct operation.
