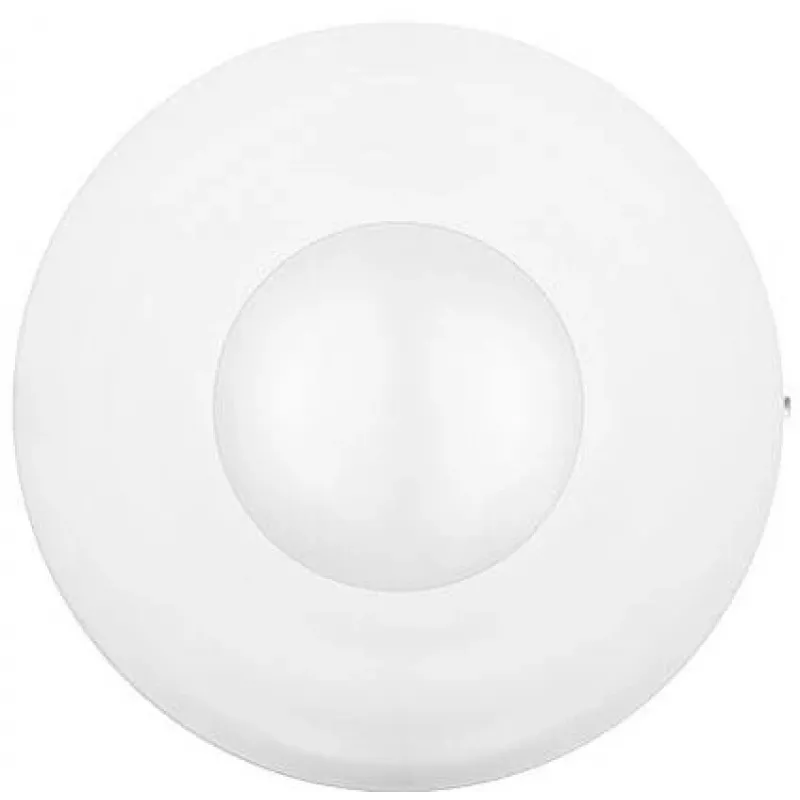

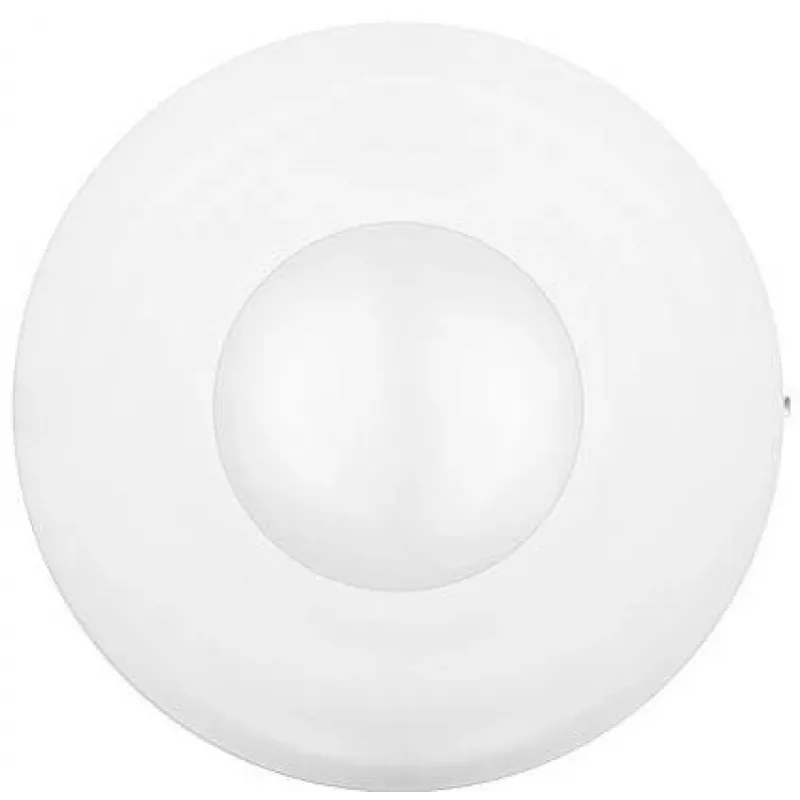

SATEL SLIM-S-PIR-LUNA BUS stropný PIR detektor pohybu

The SATEL SLIM-S-PIR-LUNA BUS is a ceiling-mounted passive infrared (PIR) motion detector designed for indoor security systems. It features a 360° detection angle with a diameter of up to 12 meters at a mounting height of 2.4 meters. The detector communicates via the SATEL BUS interface and is compatible with INTEGRA, INTEGRA Plus, VERSA, and VERSA Plus alarm panels. It offers remote sensitivity adjustment, digital temperature compensation, and a configurable LED indicator. The device is rated Grade 2 and Environmental Class II, ensuring reliable performance in residential and commercial applications.

Advantages

Easy ceiling installation with 360° coverage eliminates blind spots. Remote configuration via software reduces on-site adjustments. Digital temperature compensation maintains detection accuracy across varying temperatures. Low current consumption (max 15 mA) minimizes power load on the bus.

Suitable for

• Indoor security systems in homes, offices, and retail spaces
• Integration with SATEL alarm panels (INTEGRA, VERSA series)
• Ceiling-mounted applications requiring wide-area detection

Key specifications

• Detection Method: Passive Infrared (PIR)
• Mounting Type: Ceiling
• Detection Angle: 360°
• Detection Range (Diameter): Up to 12 m (at 2.4 m mounting height)
• Communication Interface: SATEL BUS (4-wire)
• System Compatibility: INTEGRA, INTEGRA Plus, VERSA, VERSA Plus
• Power Supply: 12 V DC (from bus)
• Current Consumption: Max. 15 mA
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN 50130-5)
• Security Grade: Grade 2 (EN 50131-2-2)
• Tamper Protection: Enclosure opening
• Sensitivity Adjustment: Remote via software
• Digital Temperature Compensation: Yes
• LED Indicator: Configurable (on/off)
• Application: Indoor

Recommendations

For optimal performance, mount the detector at a height of 2.4 m in a location with clear line of sight. Avoid areas with direct sunlight, heat sources, or air currents. Use SATEL BUS wiring for reliable communication.
