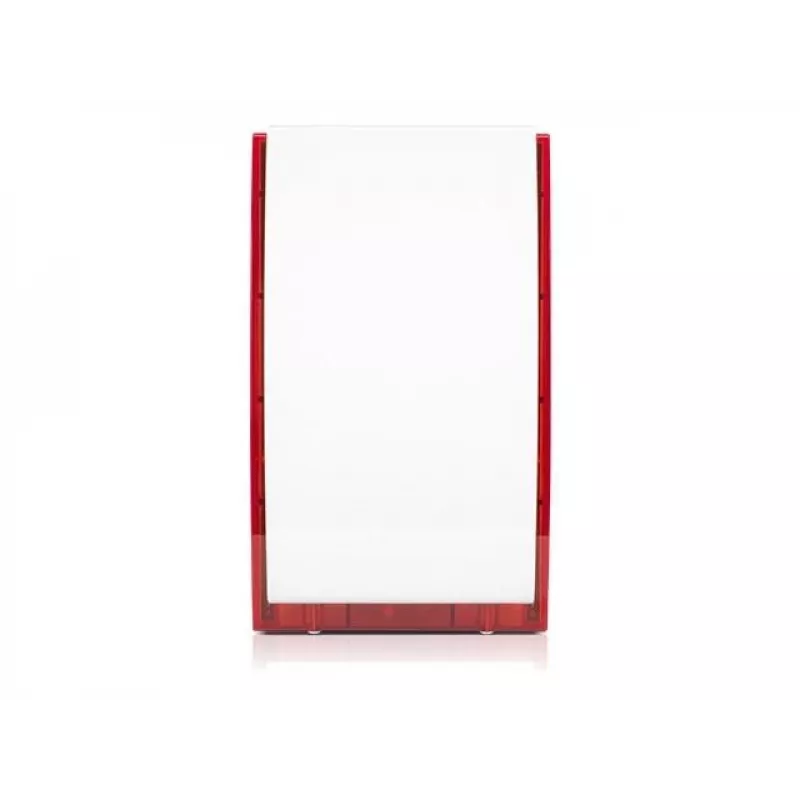

SATEL SP-4006R vnútorná siréna akusticko-optická, červený blik, biele puzdro

The SATEL SP-4006R is a high-performance indoor acoustic-optical signalling device designed for security alarm systems. It combines a powerful piezoelectric siren with a bright red LED strobe to provide both audible and visual alerts, ensuring effective notification in any indoor environment. The device features a sleek white ABS plastic housing and is surface-mounted for easy installation.

Advantages

With a maximum sound level of 120 dB at 1 meter, the SP-4006R delivers a loud, clear alarm that can be heard throughout the premises. The integrated red LED strobe provides a highly visible visual signal, making it ideal for areas where noise levels may be high or for individuals with hearing impairments. The tamper protection feature detects any attempt to open the enclosure, enhancing security. Compliance with EN 50131 Grade 2 ensures reliability and suitability for professional security systems.

Suitable for

• Indoor security alarm systems in residential, commercial, and industrial settings
• Areas requiring both audible and visual alarm notification
• Integration with SATEL and other compatible alarm control panels

Key specifications

• Product Type: Indoor Acoustic-Optical Signalling Device
• Signalling Method: Acoustic and Optical
• Sound Level (Max): 120 dB (at 1 meter)
• Optical Signalling Type: LED Strobe
• Strobe Light Color: Red
• Housing Color: White
• Power Supply Voltage: 12 V DC
• Max Current Consumption: 180 mA
• Operating Temperature Range: -10°C to +55°C
• Environmental Protection Rating: IP20
• Tamper Protection: Enclosure opening detection
• Mounting Type: Surface Mount
• Enclosure Material: ABS Plastic
• Compliance Standard: EN 50131 Grade 2
• Acoustic Element: Piezoelectric Transducer
• Application: Security Alarm Systems

Recommendations

For optimal performance, pair the SATEL SP-4006R with a compatible SATEL alarm control panel. Ensure the device is mounted in a location where both the sound and strobe light can be effectively perceived. Regular testing is recommended to maintain functionality.
