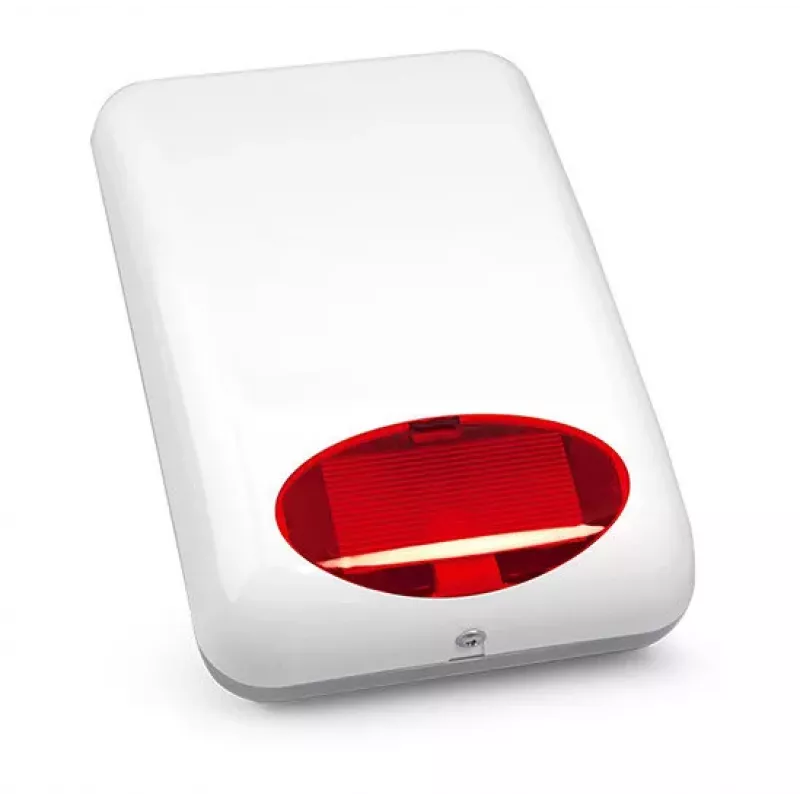

SATEL SPL-5010 R vonkajšia akusticko-optická siréna

The SATEL SPL-5010 R is a professional outdoor acoustic-optical signaling device designed for alarm systems. It combines a powerful piezoelectric transducer with bright red LEDs to provide both audible and visual alerts, ensuring effective notification in any environment. Built with a durable polycarbonate enclosure and IP54 rating, this siren is resistant to weather conditions and tampering, making it ideal for perimeter and building security.

Advantages

High sound intensity of 120 dB ensures audibility over large areas. The dual signaling (acoustic and optical) increases detection and response. Tamper protection against opening and removal from mounting surface enhances security. Wide operating temperature range (-30°C to +70°C) guarantees reliable performance in extreme climates. Complies with EN 50131 Grade 2 standards for alarm systems.

Suitable for

• Outdoor alarm systems for residential and commercial buildings
• Perimeter security and intrusion detection
• Industrial facilities requiring robust signaling

Key specifications

• Signaling Type: Acoustic-Optical
• Acoustic Element: Piezoelectric Transducer
• Optical Element: LEDs (Red)
• Sound Intensity: 120 dB
• Power Supply: 12 V DC
• Max Current Consumption (Acoustic): 250 mA
• Max Current Consumption (Optical): 100 mA
• Enclosure Material: Polycarbonate
• IP Rating: IP54
• Tamper Protection: Yes (opening and removal)
• Operating Temperature: -30°C to +70°C
• Mounting: Outdoor
• Dimensions (L x W x H): 298 x 197 x 90 mm
• Weight: 1.05 kg
• Compliance: EN 50131 Grade 2

Recommendations

For optimal performance, install the siren at a height of at least 2 meters and connect to a compatible 12 V DC alarm control panel. Ensure proper sealing of cable entries to maintain IP54 protection. Regular testing of both acoustic and optical functions is recommended.
