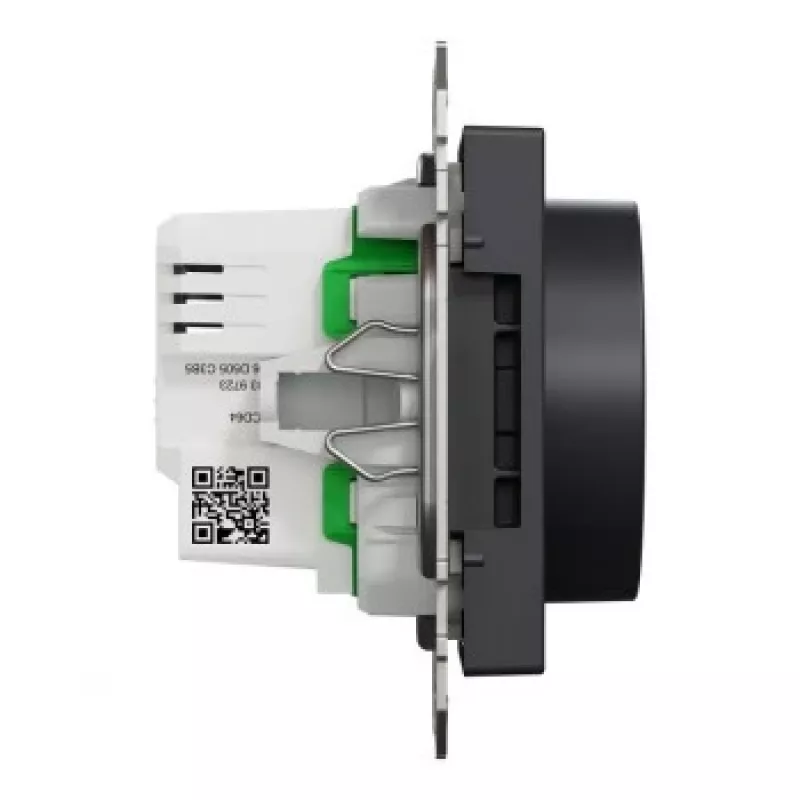

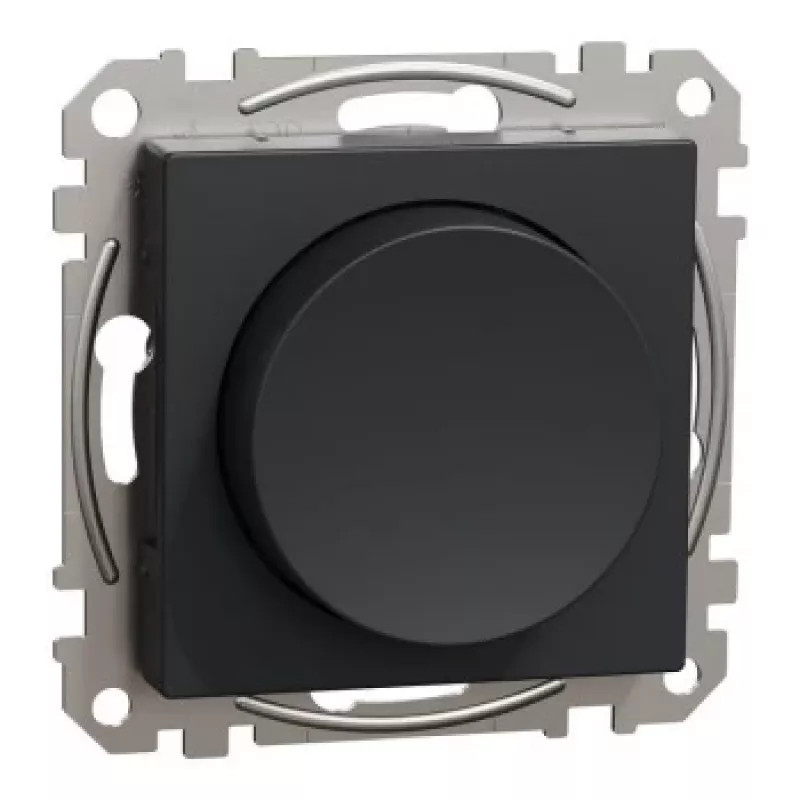

Schneider Electric Multiwire otočný LED stmievač 200W antracit

The Schneider Electric Multiwire Rotary LED Dimmer 200W Anthracite is a high-quality dimmer switch designed for precise lighting control in residential and commercial environments. Part of the Unica Top/Class series, this dimmer offers leading and trailing edge dimming technology, making it compatible with a wide range of light sources including LED, incandescent, halogen, and CFL lamps. With a maximum load of 200W (resistive/inductive) and 200VA (capacitive/LED), it provides reliable performance for various lighting setups.

Advantages

This dimmer features a rotary push-button control for intuitive operation and smooth dimming. Its compact 2-module design fits flush-mounted frames, saving space while maintaining a sleek appearance. Built-in protection against overload, short-circuit, and over-temperature ensures long-lasting safety and durability. The anthracite colour adds a modern touch to any interior.

Suitable for

• LED lighting systems requiring leading or trailing edge dimming
• Incandescent and halogen lamps up to 200W
• CFL lamps compatible with dimmable ballasts
• Residential and commercial installations with 230V AC supply

Key specifications

• Device Type: Dimmer Switch
• Dimmer Control: Rotary Push-button
• Dimming Technology: Leading Edge (RL) / Trailing Edge (RC)
• Max Load Power (Resistive/Inductive): 200 W
• Max Load Power (Capacitive/LED): 200 VA
• Supply Voltage: 230 V AC, 50 Hz

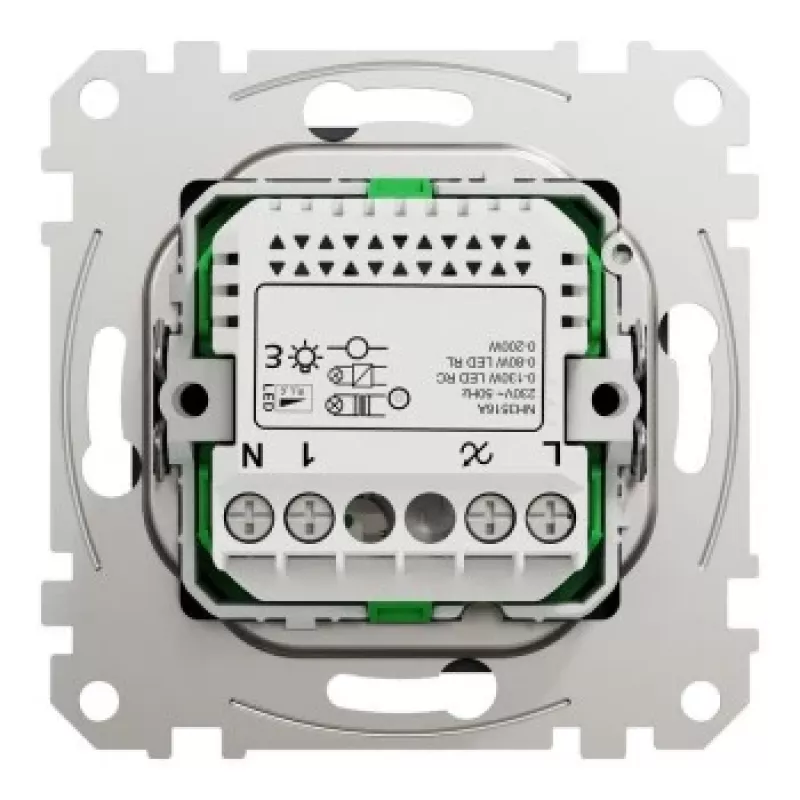

• Wiring System: 2-wire / 3-wire
• Mounting Type: Flush (requires mounting frame)
• Number of Modules: 2 modules (Unica system)
• Connection Type: Screw terminals
• Material: Polycarbonate (PC)
• Colour: Anthracite
• IP Rating: IP20
• Protection Features: Overload, Short-circuit, Over-temperature
• Operating Temperature: 5...40 °C
• Standards: EN 60669-2-1

Recommendations

For optimal performance, ensure the total connected load does not exceed the rated maximum. Use with compatible dimmable LED lamps. Professional installation by a qualified electrician is recommended.
