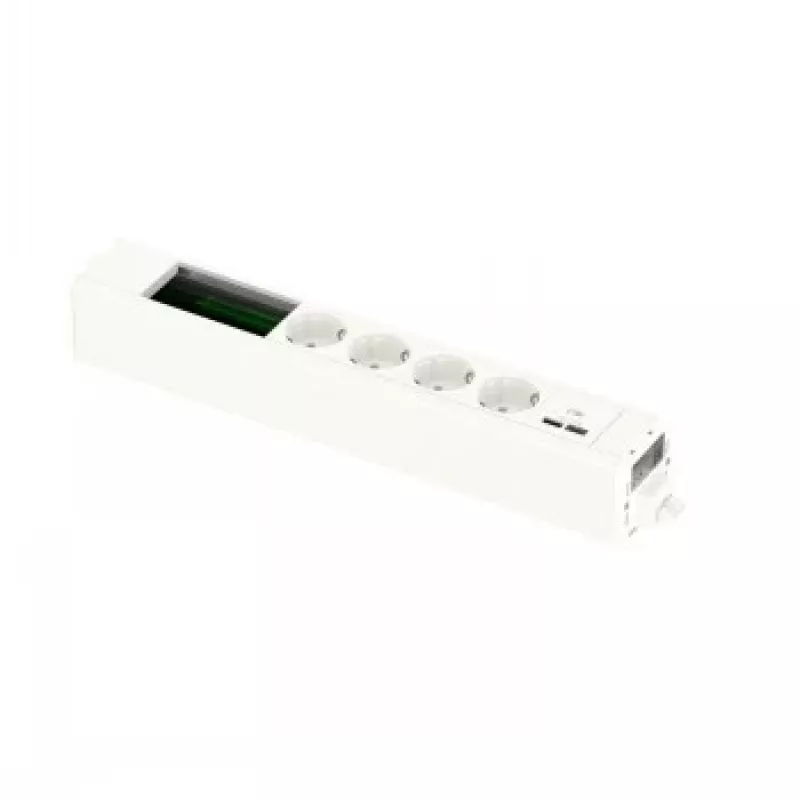

SCHNEIDER ELECTRIC UNICA SYSTEM+ MOD.UNIT 4XSCH+USBA/C+DATA BIELA

Where most desk power modules stop at basic sockets, the Unica System+ INS44256 goes further by combining four grounded Schuko outlets with a shared USB-A/USB-C charging stage and an RJ45 data pass-through in one compact, clamp-mountable block. That means a single cut-out or edge clamp serves laptops, monitors, phones, and wired network access without a tangle of adapters or extension leads. The white PC/ABS housing keeps the unit discreet on light desktops, while the 16 A per-socket rating and 3680 W total capacity handle demanding office equipment.

Highlights

• Four Schuko (Type F) power sockets, each rated 16 A / 230 V AC
• Integrated USB-A and USB-C charging ports, 5 V DC, 3 A shared output
• One RJ45 data port for Ethernet connectivity
• Desk clamp mounting with optional surface-mount configuration
• IP20 protection, CE and RoHS certified
• Total maximum load: 3680 W

In daily use

In a shared workspace or conference room, the INS44256 removes the usual scramble for power. The four Schuko sockets accept standard European plugs, while the USB ports charge phones, tablets, or headsets without occupying a socket. The RJ45 port keeps a wired network link available for video conferencing or high-speed transfers, avoiding Wi-Fi congestion. The clamp design attaches to desk edges from 10 to 50 mm thick, and the white finish blends with modern furniture. Because the unit is modular within the Unica System+ range, it can be combined with additional frames or inserts for a tailored installation.

Full specifications

• Brand: Schneider Electric
• Model: INS44256
• Series: Unica System+
• Product type: Modular desk power & data unit
• Number of power outlets: 4
• Power outlet type: Schuko (Type F)
• USB charging ports: Yes
• USB-A output ports: 1
• USB-C output ports: 1
• USB output voltage: 5 V DC
• USB max output current: 3 A (shared)
• Data ports: 1
• Data port type: RJ45 (Ethernet)
• Input voltage: 230 V AC
• Max current per socket: 16 A
• Total max power load: 3680 W
• Material: PC/ABS
• Protection rating: IP20
• Certifications: CE, RoHS
• Colour: White
• Mounting type: Desk clamp (optional surface mount)
• Application: Office, home office, conference rooms

Final note

The INS44256 is a practical upgrade for any desk that needs reliable power, charging, and data in one tidy module. Its modular design and robust ratings make it a long-term solution for professional environments.
