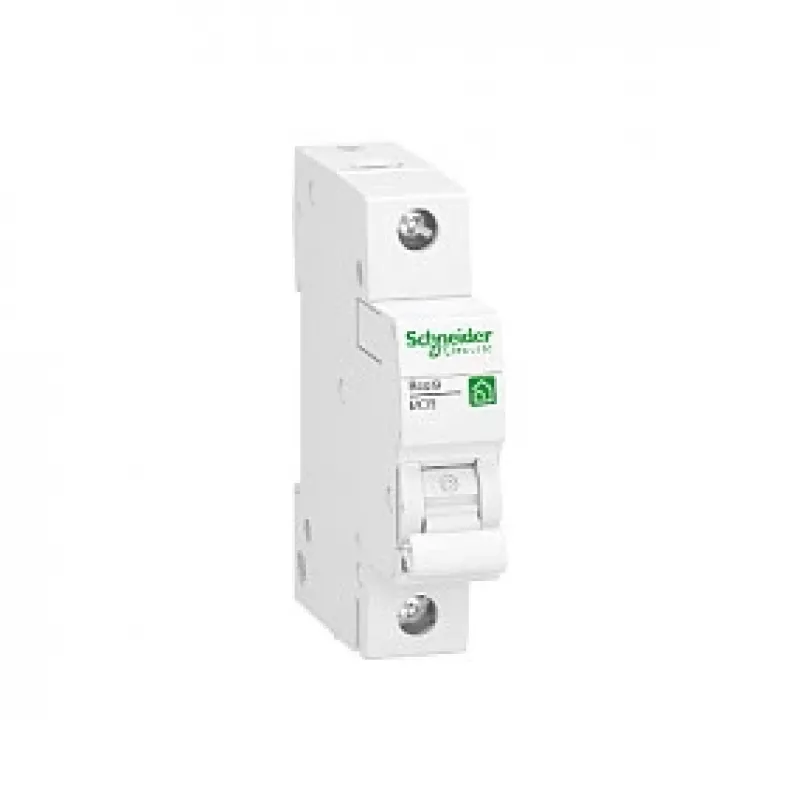

Schneider Resi9 istič 1P 16A B-charakteristika 6kA R9F23116

With a breaking capacity of 6kA, this Schneider Resi9 miniature circuit breaker delivers robust protection for residential and commercial circuits. The B-curve thermal-magnetic trip unit ensures reliable operation for general-purpose loads, while the 16A rating suits a wide range of applications.

Overview

The Schneider Resi9 R9F23116 is a single-pole MCB designed for DIN rail mounting. It provides overcurrent and short-circuit protection in AC networks, conforming to EN/IEC 60898-1. The compact 18mm width optimizes space in distribution boards.

What stands out

• 6kA breaking capacity for effective fault interruption
• B-curve for standard inrush current loads
• Thermal-magnetic trip mechanism for precise protection
• Wide operating temperature range from -25°C to 60°C
• High mechanical endurance of 20,000 cycles

Technical details

• Rated current: 16A
• Number of poles: 1
• Rated voltage: 230V AC
• Insulation voltage: 400V AC
• Impulse withstand voltage: 4kV
• Terminal capacity: 1-25mm² rigid, 1-16mm² flexible
• Tightening torque: 2 N.m
• IP20 protection

Our verdict

A dependable choice for residential electrical protection, combining Schneider quality with essential safety features. Its straightforward installation and proven performance make it a solid addition to any panel.
