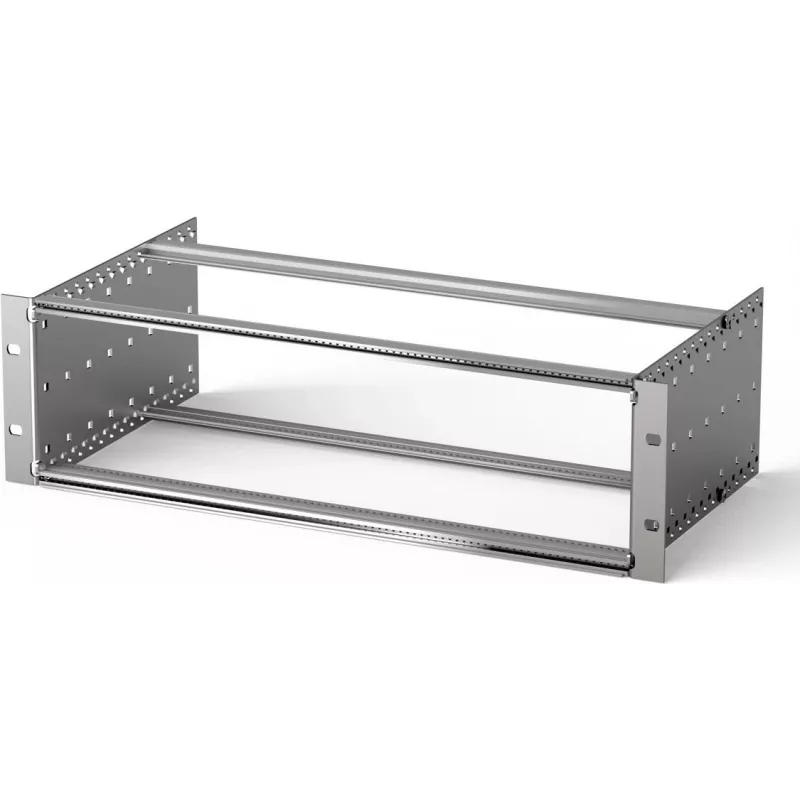

SCHROFF EuropacPRO nosič modulov 3U 84HP hĺbka 295mm strieborný 24564133

This SCHROFF EuropacPRO subrack delivers a robust, fully assembled 19-inch enclosure for Eurocard-based systems, combining 3U height, 84HP width, and a compact 295 mm depth in a lightweight yet rigid aluminum frame. Unlike generic open-frame racks, it arrives as a complete kit with side panels, front and rear horizontal rails, mounting brackets, and all assembly hardware, so you can build a professional card cage without sourcing extra components.

Highlights

• 3U / 84HP form factor — fits standard 19-inch cabinets and accepts 3U Eurocards up to 160 mm deep
• Precision aluminum construction: clear chromated side panels and anodized horizontal rails for corrosion resistance and clean grounding
• Tool-free assembly: all brackets, screws, and alignment aids included; no special tools required
• IEC 60297-3-101 compliant — guaranteed dimensional compatibility with Eurocard and plug-in unit standards
• Silver finish blends into existing rack infrastructure and provides a neutral backdrop for status LEDs and labelling

In daily use

The subrack integrates directly into any 19-inch rack or cabinet. Mount your Eurocards or plug-in units onto the front and rear horizontal rails, secure them with standard screws, and slide the assembled unit into the rack using the included mounting brackets. The 295 mm depth keeps the enclosure shallow enough for wall-mount racks or tight cabinets while still accommodating standard 160 mm Eurocards with room for rear I/O and cable routing. The aluminum side panels are pre-drilled for ventilation and can be easily removed for maintenance or custom machining.

Full specifications

• Brand: SCHROFF
• Model: 24564133
• MPN: 24564133
• EAN: 4036088071898
• Product type: Subrack
• Series: EuropacPRO
• Rack unit height: 3U
• Horizontal pitch: 84 HP
• Overall depth: 295 mm
• Mounting type: 19-inch rack mount
• External width: 482.6 mm (19 inches)
• External height: 133.35 mm (3U)
• Internal width for cards: 426.72 mm (84 HP)
• Side panel material: Aluminum
• Horizontal rail material: Aluminum
• Side panel finish: Clear chromated
• Horizontal rail finish: Anodized
• Standard compliance: IEC 60297-3-101
• Application: Housing for Eurocards and plug-in units
• Included hardware: Side panels, horizontal rails (front/rear), rear horizontal rails, mounting brackets, assembly material
• Compatibility: Eurocard format
• Colour: Silver

Final note

A complete, standards-compliant subrack that saves engineering time and ensures a clean, professional installation for your Eurocard-based electronics.
