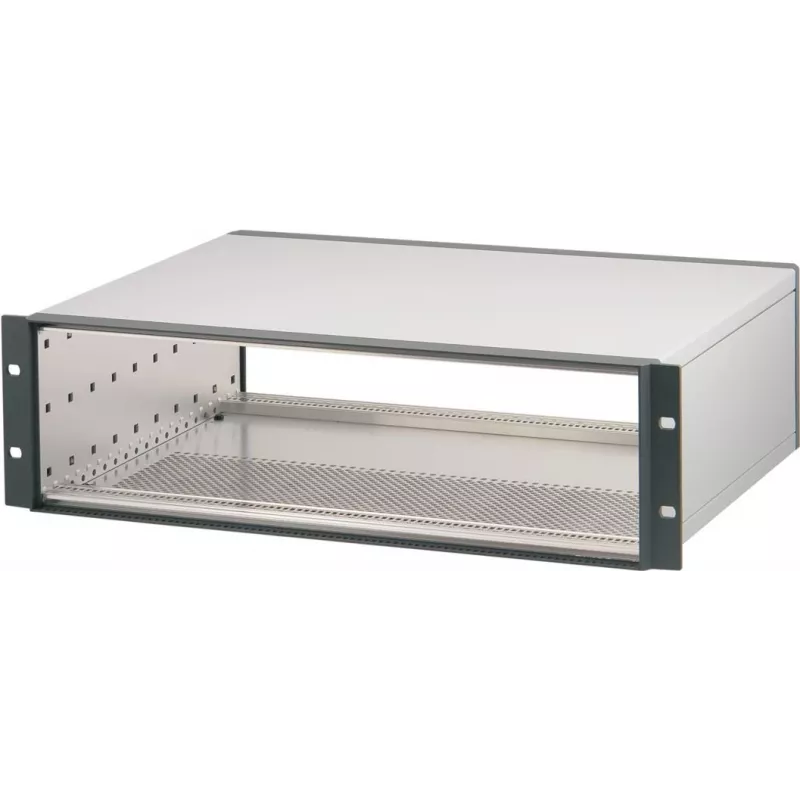

SCHROFF ratiopacPRO 3U 84HP 435mm hlboké desktop puzdro, svetlosivé 24571443

The SCHROFF ratiopacPRO is a robust 3U desktop enclosure offering 84HP of horizontal pitch and a 435mm external depth, ideal for housing standard Eurocard-based electronics. Its modular aluminium frame with EMC shielding ensures reliable protection and signal integrity in industrial environments.

Advantages

The enclosure combines a lightweight yet rigid aluminium construction with steel cover plates for durability. Anodized side panels resist corrosion and wear, while the light grey RAL 7035 finish blends into professional settings. Passive ventilation slots maintain thermal performance without moving parts, and the IP20 rating guards against solid object ingress.

Suitable for

• 19-inch rack-mount and desktop instrumentation
• Industrial control systems and test equipment
• Embedded computing and telecommunications hardware
• Prototyping and small-series production of Eurocard-based devices

Key specifications

• Rack units: 3U (internal height 128.4 mm)
• Horizontal pitch: 84HP (internal width 426.7 mm)
• External dimensions: 448 mm width × 140 mm height × 435 mm depth
• Internal usable depth: approximately 400 mm
• Materials: anodized aluminium side panels, steel cover plates, aluminium front/rear frames
• Colours: light grey cover plates (RAL 7035), black handles and feet (RAL 9005)
• EMC shielding: Yes
• Protection class: IP20
• Ventilation: passive via slots

Recommendations

For engineers seeking a reliable, modular enclosure that supports standard 3U Eurocard formats with EMC protection, the ratiopacPRO offers a proven platform. Pair it with SCHROFF front panels and guide rails for a complete system integration.
