SCOT ES-S12AC/DC-MB PROFI symetrický elektrický otvárač s pamäťou a blokádou

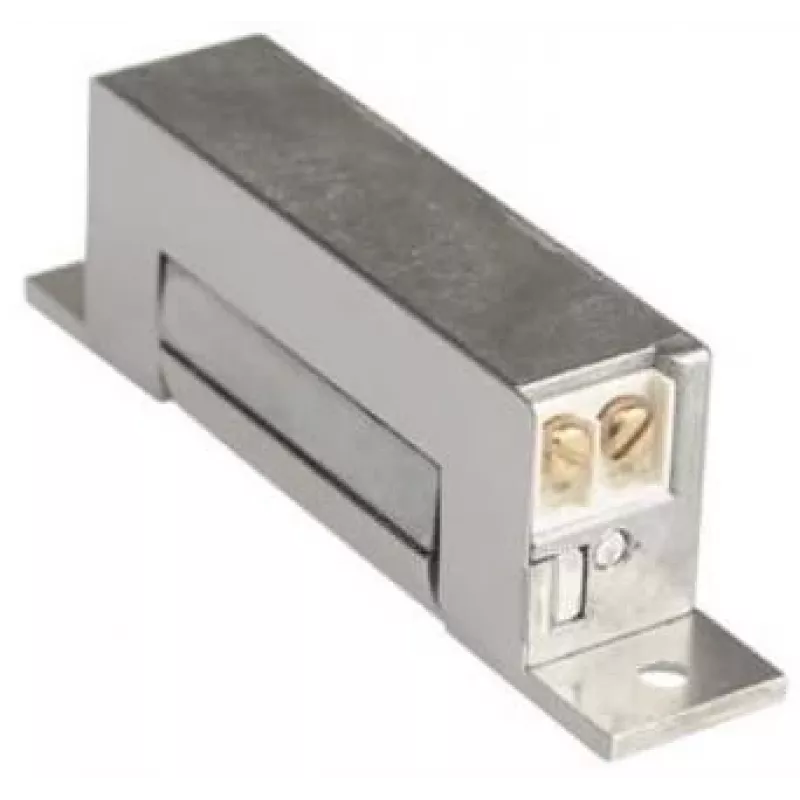

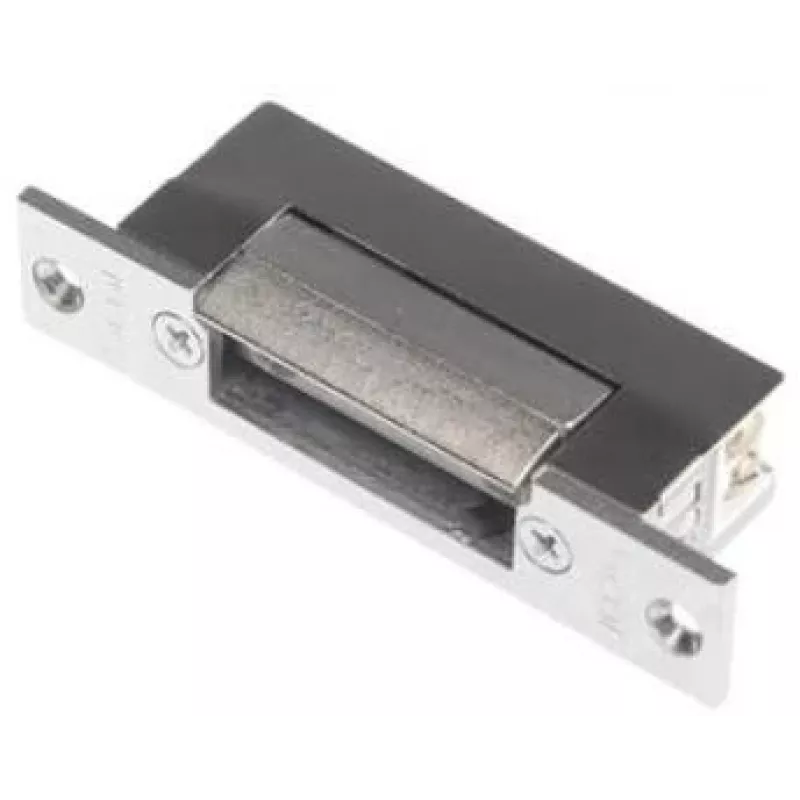

The SCOT ES-S12AC/DC-MB PROFI is a symmetrical electric strike with memory and blockade. Its symmetrical design allows installation in both left- and right-handed doors, eliminating the need to specify door handing. It operates by releasing the secured entrance when voltage is applied to the coil, and can be controlled by intercom, video intercom, access control, or a simple push button.

Key features

• Symmetrical electric strike with memory and blockade
• Can be mounted in both left and right doors
• Memory function: a short electrical pulse unlocks the strike; after the door is opened, it returns to resting position
• Mechanical blockade switch with OPEN and CLOSED positions
• In OPEN position, passage is possible without electrical pulses; in CLOSED position, it operates as a standard electric strike
• Universal power supply: can be powered with direct current (from a DC power supply) or alternating current (from a transformer)
• Latch tongue adjustment range: 0 ~ 4 mm from standard position
• Standard mounting strip included

Specifications

• Brand: SCOT
• MPN: ES-S12AC/DC-MB PROFI
