Serverová skriňa Inter-Tech 3U-3416 Rack čierna

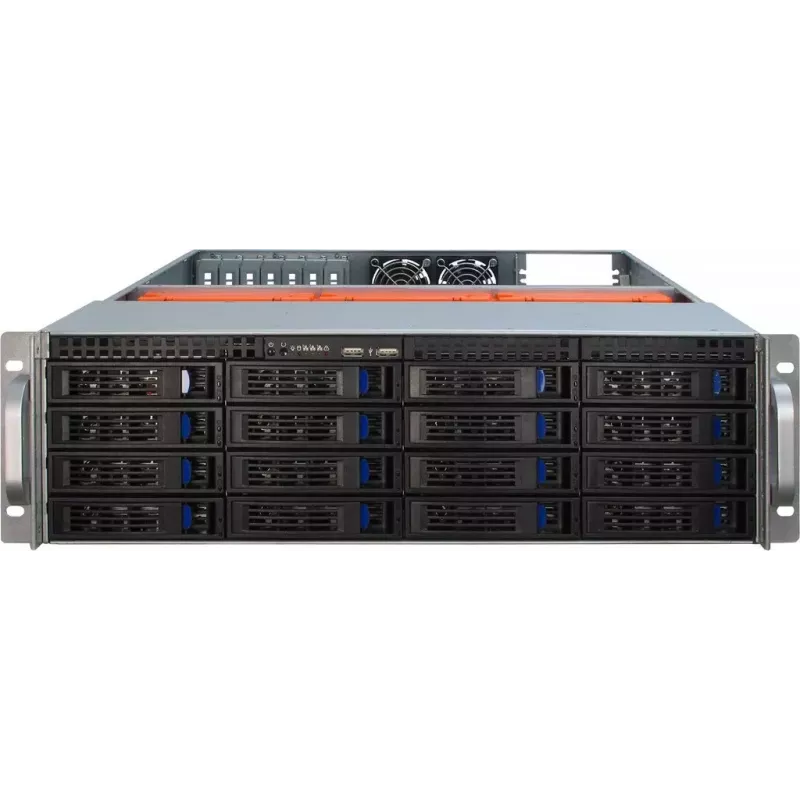

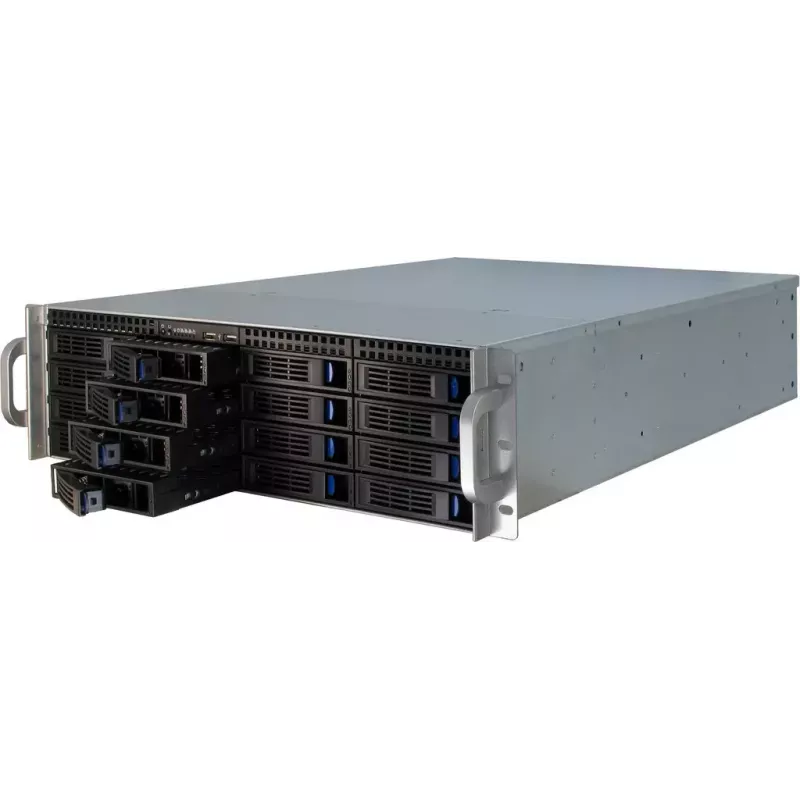

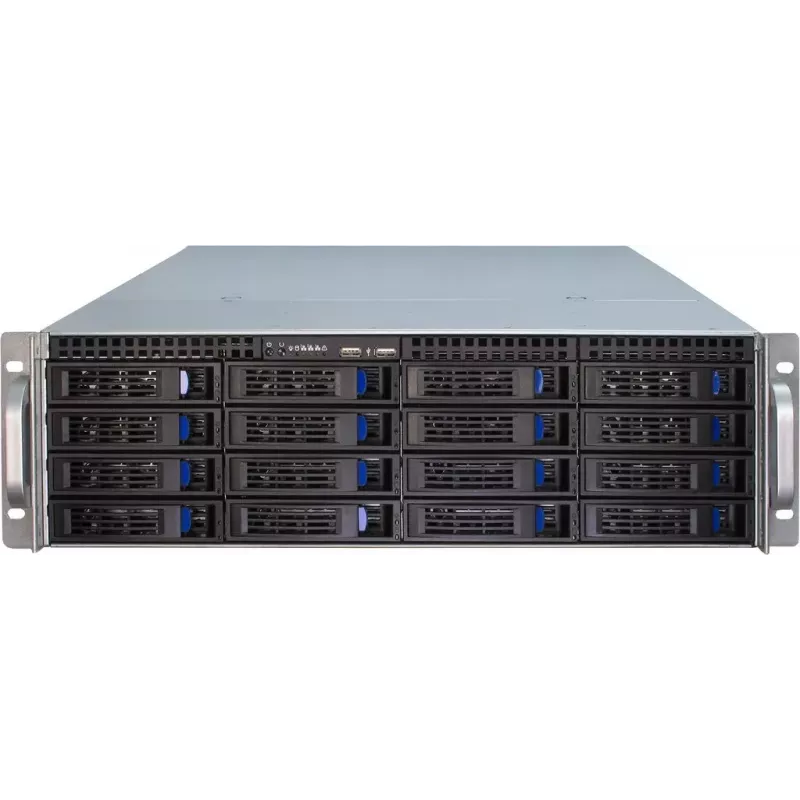

The Inter-Tech IPC 3U-3416 Rack Black is a 3U rack server case designed for compact, cost-effective server installations. Constructed from steel and finished in black, it supports SSI EEB, EATX, ATX, Micro ATX and Mini-ITX motherboards and offers flexible drive accommodation for both 2.5" and 3.5" drives. The chassis measures 482 mm (W) x 685 mm (D) x 134 mm (H) and weighs 13.4 kg.

Advantages

This server case provides a high-density storage option with support for up to sixteen hot-swap 2.5" or 3.5" drives plus additional internal drive bays, a dedicated 5.25" slim external bay and included cooling. The steel construction and perforated, reusable slot brackets improve durability and airflow. The case ships with five fans (three 120 mm mounted at the drive brackets and two 60 mm at the rear) to ensure effective cooling for drives and components.

Suitable for

• Small office or home lab servers
• Storage servers requiring multiple 2.5" or 3.5" drives
• Rack-mounted applications in limited 3U space
• Systems using SSI EEB, EATX, ATX, Micro ATX or Mini-ITX motherboards

Key specifications

• Form factor: 3U rack
• Dimensions (W x D x H): 482 x 685 x 134 mm
• Material: steel
• Colour: black
• Supported drives: up to sixteen hot-swap 2.5" or 3.5" HDDs + three internal 2.5" HDDs + one slim 5.25" external bay
• Included fans: three 120 mm (drive bracket) + two 60 mm (rear)
• Motherboard support: SSI EEB, EATX, ATX, Micro ATX, Mini-ITX
• Front I/O: 1 × USB 3.2 Gen 1 Type-A, 1 × USB 2.0
• Weight: 13.4 kg

How to use

Mount the Inter-Tech IPC 3U-3416 into a suitable 19" rack using standard rack rails. Install a compatible motherboard according to the supported form factors and secure the power supply (not included). Populate drive bays with 2.5" or 3.5" drives as required; hot-swap cages allow drive replacement without powering down the system. Connect the included fans to the motherboard or fan controller and route cables to maintain unobstructed airflow.

Recommendations

For reliable operation, ensure proper rack ventilation and avoid blocking front or rear airflow. Use compatible drive trays and verify power supply capacity for the number of installed drives and components.
