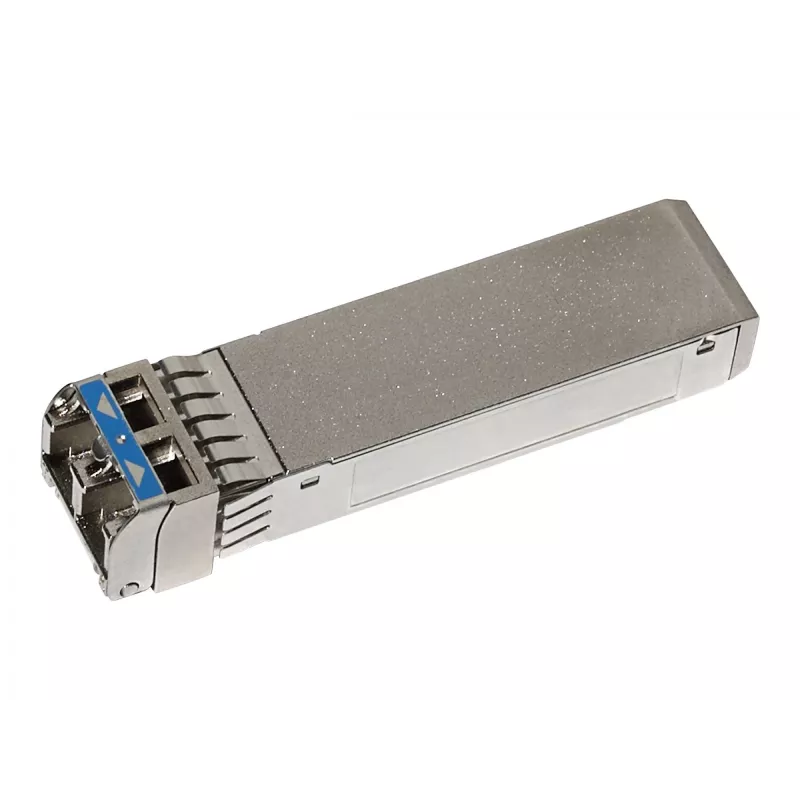

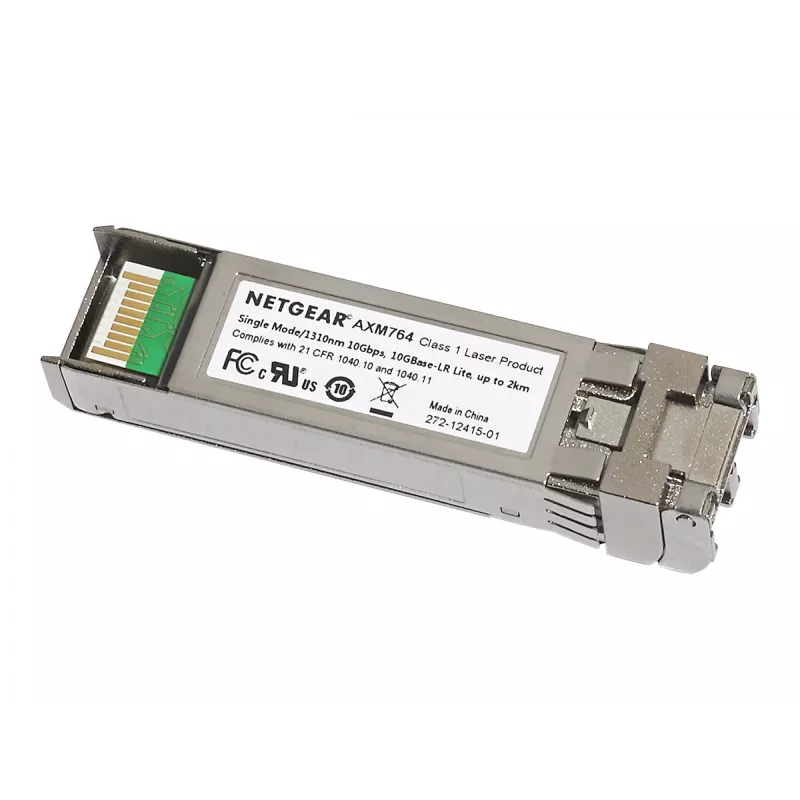

SFP+ optický transceiver Netgear 10GBASE-LR Lite – 10 Gbit/s, rozhranie SFP+, Singlemode

Netgear 10GBASE-LR Lite SFP+ is a single-mode fiber optic transceiver module with an SFP+ interface supporting data rates up to 10,000 Mbit/s. Designed for long-reach 10G links over single-mode fiber, this module uses an LC duplex connector and is supplied as a single unit for upgrading or expanding 10G fiber networks. It is compatible with Netgear M5300, M6100, M7100 and M7300 switches and fits standard SFP+ ports. The 10GBASE-LR Lite variant specifies an operational reach of approximately 2 km over standard 9/125µm single-mode fiber and provides a cost- and space-efficient option where full 10GBASE-LR range is not required.

Advantages

This SFP+ transceiver offers a compact SFP+ form factor and support for 10 Gbit/s throughput while maintaining compatibility with multiple Netgear switch models. The single-mode LC duplex interface facilitates connection to existing SMF runs, and the Lite variant provides defined reach for medium-length single-mode links. As a single-unit supply, the module is suitable for selective upgrades or incremental network expansion without replacing existing infrastructure.

Suitable for

• Upgrading SFP+ ports on Netgear M5300, M6100, M7100 and M7300 switches to 10 Gbit/s single-mode fiber
• Establishing point-to-point 10G links over single-mode fiber up to about 2 km
• Incremental expansion of campus or data center fiber segments where full long-range optics are unnecessary
• Environments requiring LC duplex connectors and SFP+ form factor for space-constrained switch ports

Key specifications

• Interface: SFP+ form factor with LC duplex optical connector
• Link type: single-mode fiber (SMF), 9/125 µm
• Maximum data rate: 10 Gbit/s
• Nominal reach: approximately 2 km over standard single-mode fiber (10GBASE-LR Lite specification)
• Transceiver type: 10GBASE-LR Lite (single-mode, long-reach lite)

How to use

Insert the SFP+ transceiver into an available SFP+ port on a compatible Netgear switch until it latches. Connect LC duplex single-mode fiber patch cables to the transceiver, observing correct transmit/receive orientation. Ensure the connected ports are configured for 10 Gbit/s operation in the switch management interface and verify link status and diagnostics after installation. Handle the optical module with electrostatic precautions and keep protective dust caps on connectors when not in use.

Recommendations

Use this 10GBASE-LR Lite module where single-mode fiber runs are up to about 2 km and where the SFP+ form factor and LC duplex connectors are required. Verify compatibility with the target Netgear switch model and confirm port settings before deployment. For longer reaches or different fiber types, choose an appropriate standard 10GBASE-LR or other transceiver type.
