SHIVERPEAKS S/CONN maximum connectivity LC/LC OM5 duplex LWL patch kábel, 50/125µm, limetkovozelený, 3m 07-500415

With a maximum attenuation of just 2.3 dB/km at both 850nm and 953nm, this OM5 fiber optic patch cable delivers exceptional signal clarity for high-speed data networks. The SHIVERPEAKS S/CONN maximum connectivity LC/LC duplex cable is engineered for 40/100/200/400 Gigabit Ethernet, making it a future-proof backbone for data centers, SANs, and enterprise LANs.

Overview

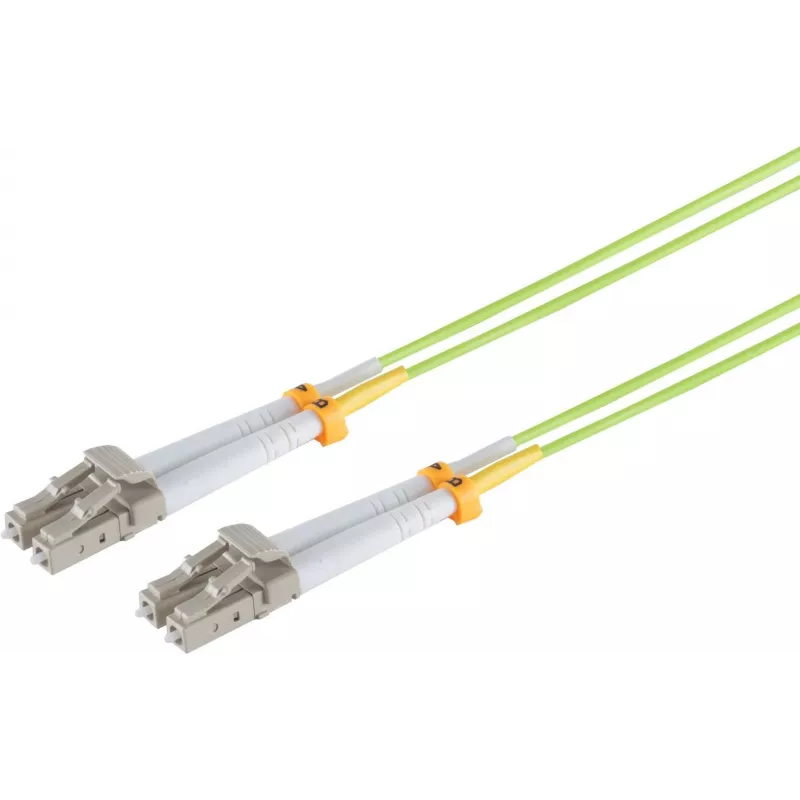

This 3-meter lime green patch cable features LC duplex connectors on both ends and a 50/125µm multimode fiber core. It is built to OM5 (WBMMF) standards, supporting short-wavelength division multiplexing (SWDM) for higher bandwidth over existing multimode infrastructure. The duplex construction ensures reliable bidirectional communication, while the vibrant lime green jacket simplifies identification in dense cabling environments.

What stands out

• OM5 broadband multimode fiber (WBMMF) for 40/100/200/400G Ethernet
• Low insertion loss: max 0.3 dB per connector
• High return loss: min 30 dB for multimode
• Lime green jacket for easy port mapping and cable management
• Compliant with ISO/IEC 11801-1 and TIA-568.3-D

Technical details

• Connector type: LC to LC duplex
• Fiber type: Multimode 50/125µm (OM5)
• Cable length: 3.0 m
• Number of fibers: 2
• Attenuation: ≤2.3 dB/km @ 850nm and 953nm
• Insertion loss: ≤0.3 dB per connector
• Return loss: ≥30 dB
• Supported protocols: 40GBASE-SR4, 100GBASE-SR4/SWDM4, 200/400G Ethernet
• Applications: Data centers, SAN, LAN, high-speed interconnects

Our verdict

For professionals seeking a reliable, high-performance multimode link, this SHIVERPEAKS OM5 patch cable offers excellent signal integrity and standards compliance, making it a smart investment for current and next-generation network upgrades.
