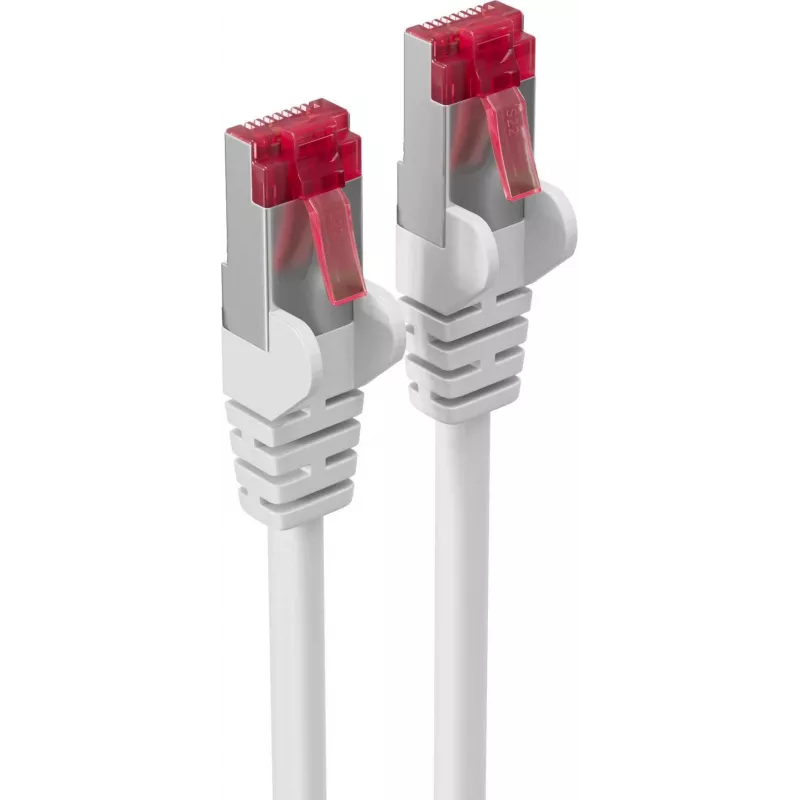

SHIVERPEAKS S/FTP Cat.6A PIMF bezhalogénový GHMT certifikovaný patch kábel, biely, 30m (BS75730-AW)

For installations where air quality and fire safety are non-negotiable, this SHIVERPEAKS patch cable pairs a halogen-free LSZH jacket with full S/FTP shielding and PIMF pair isolation. The result is a 30-metre Cat.6A link that handles 10-Gigabit traffic up to 500 MHz without emitting corrosive gases or dense smoke in a fire.

Highlights

• Cat.6A performance: 10 Gbps up to 500 MHz, ideal for 10GBASE-T networks
• Double shielding: S/FTP with PIMF (pairs in metal foil) for excellent alien crosstalk resistance
• Halogen-free LSZH jacket: low smoke, zero halogen, meets IEC 60332-1 flame retardancy
• GHMT certified: independently verified for Cat.6A compliance
• Stranded 26 AWG copper conductors for flexibility and easy routing
• RJ45 male connectors on both ends, wired to TIA/EIA 568B
• 30 m length in clean white, suitable for visible cable runs

In daily use

This cable is built for structured cabling in offices, schools, hospitals, and data centres where high bandwidth and low fire hazard must go hand in hand. The S/FTP construction with PIMF keeps crosstalk at bay even in dense bundles, while the LSZH jacket ensures that in the event of a fire, the cable will not contribute to toxic smoke or corrosive gas. The white colour blends into walls and ceilings, and the stranded conductors make the cable easy to pull through conduits and patch panels.

Full specifications

• Brand: SHIVERPEAKS
• Model: BS75730-AW
• MPN: BS75730-AW
• EAN: 4017538152763
• Cable type: Ethernet patch cable
• Category: Cat.6A
• Shielding: S/FTP (screened/foiled twisted pair)
• Pair shielding: PIMF (pairs in metal foil)
• Length: 30 m
• Colour: White
• Jacket material: LSZH (low smoke zero halogen)
• Certification: GHMT
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Connector type: RJ45 male (both ends)
• Conductor material: Copper
• Conductor gauge: 26 AWG
• Wiring standard: TIA/EIA 568B
• Application: 10 Gigabit Ethernet (10GBASE-T)
• Cable construction: Stranded
• Flame retardancy: IEC 60332-1

Final note

When your network demands both speed and safety, this SHIVERPEAKS cable delivers certified Cat.6A performance in a halogen-free design that protects people and equipment.
