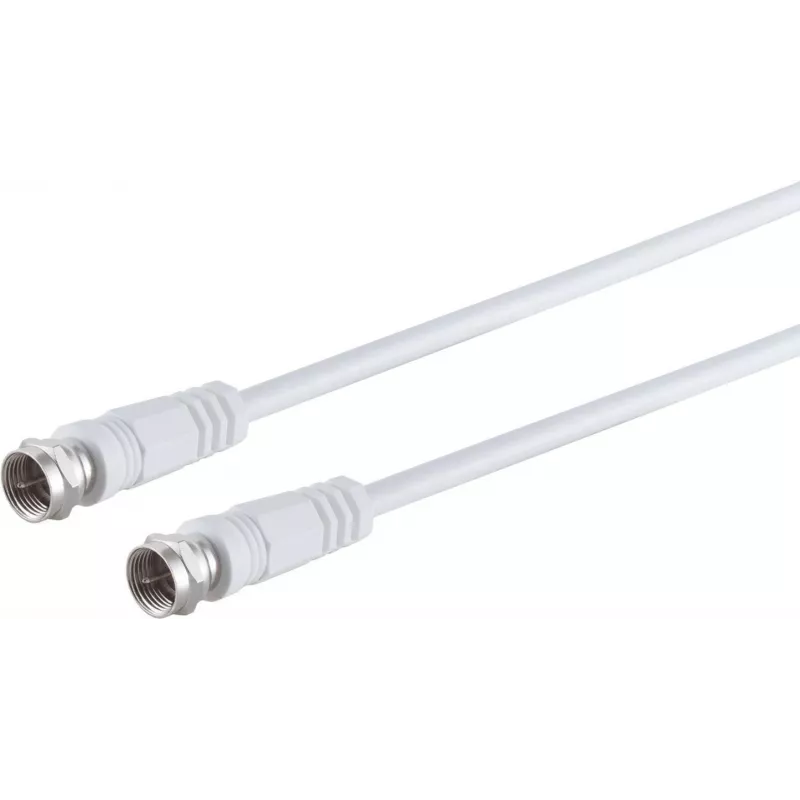

SHIVERPEAKS SAT prepojovací kábel, F-Type konektor samec na F-Type konektor samec, 0,2 m, biely TR80092-0.2-128

When space is tight and signal integrity is non-negotiable, this 0.2-metre SAT connection cable from SHIVERPEAKS steps in. Unlike generic fly leads, it is purpose-built for short-range RF links between satellite receivers, LNB switches, wall outlets, and distribution hardware. The double-shielded coaxial core keeps interference out, while the bright white PVC jacket blends neatly into domestic installations. With nickel-plated F-type connectors on both ends, it provides a secure, low-loss connection for DVB-S/S2 and cable TV systems.

Highlights

• Ultra-short 0.2 m length reduces clutter behind AV furniture and in patch panels
• Double shielding (foil + braid) suppresses EMI and RFI for stable reception
• Copper-clad steel conductor with foamed PE dielectric maintains 75 Ohm impedance
• Nickel-plated F-type male connectors ensure corrosion resistance and repeatable mating
• Supports frequencies up to 2400 MHz, covering satellite IF and terrestrial bands
• RoHS compliant, PVC jacket in white for discreet routing

In daily use

Whether connecting a set-top box to a wall plate, linking an LNB to a multiswitch, or bridging two RF components in a headend rack, this cable delivers clean signal transfer without excess length. The short run minimises attenuation, making it ideal for high-frequency satellite signals where every decibel counts. The white colour matches most modern interiors and can be easily labelled or concealed. The connectors are crimped for durability, and the flexible jacket allows tight bends without kinking.

Full specifications

• Brand: SHIVERPEAKS
• Model: TR80092-0.2-128
• MPN: TR80092-0.2-128
• EAN: 4017538041265
• Cable type: SAT connection cable
• Connector A: F-type male
• Connector B: F-type male
• Cable length: 0.2 m
• Colour: White
• Impedance: 75 Ohm
• Shielding: Double shielded (foil + braid)
• Conductor material: Copper clad steel (CCS)
• Dielectric material: Foamed PE
• Jacket material: PVC
• Connector plating: Nickel
• Cable diameter: approx. 4.8 mm
• Frequency range: 0 - 2400 MHz
• Application: Satellite TV, DVB-S/S2, cable TV
• RoHS compliant: Yes

Final note

For installers and enthusiasts who demand a clean, low-loss RF link in a compact form, the SHIVERPEAKS TR80092-0.2-128 offers a dependable, standards-compliant solution that disappears into the background while keeping your signal strong.
