Siemens 5SV1316-7KK06 RCBO, 1P+N, 6 A, charakteristika C, 30 mA, typ A, 6 kA

With a rated switching capacity of 6 kA and a 30 mA residual current sensitivity, this Siemens RCBO protects against both overcurrent and earth leakage faults in a single 18 mm module.

Overview

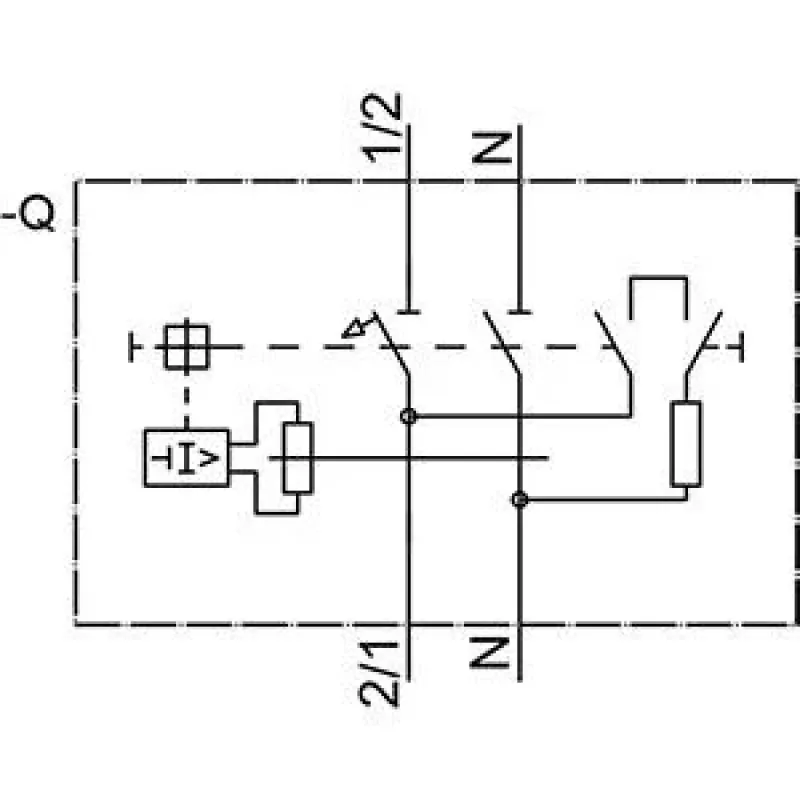

The Siemens 5SV1316-7KK06 is a residual current circuit breaker with overcurrent protection (RCBO) for DIN rail mounting. It combines 1-pole + N switching with a rated current of 6 A and a C tripping characteristic, making it suitable for circuits with moderate inrush currents. The device detects Type A residual currents (AC and pulsating DC) at a sensitivity of 30 mA, providing personal and fire protection. With a breaking capacity of 6 kA and a rated voltage of 230 V AC, it is a reliable choice for residential and commercial installations.

What stands out

• Compact 1 MW (18 mm) width saves space on the DIN rail
• Type A residual current detection covers AC and pulsating DC faults
• High 6 kA switching capacity for robust short-circuit protection
• Wide operating temperature range from -25 to +45 °C
• Long electrical endurance of 10,000 switching cycles

Technical details

• Number of poles: 1P+N
• Rated current: 6 A
• Tripping characteristic: C
• Rated residual operating current: 30 mA
• Type of residual current: A
• Rated switching capacity: 6 kA
• Rated voltage: 230 V AC
• Frequency: 50/60 Hz
• Mounting type: DIN rail (TH 35 mm)

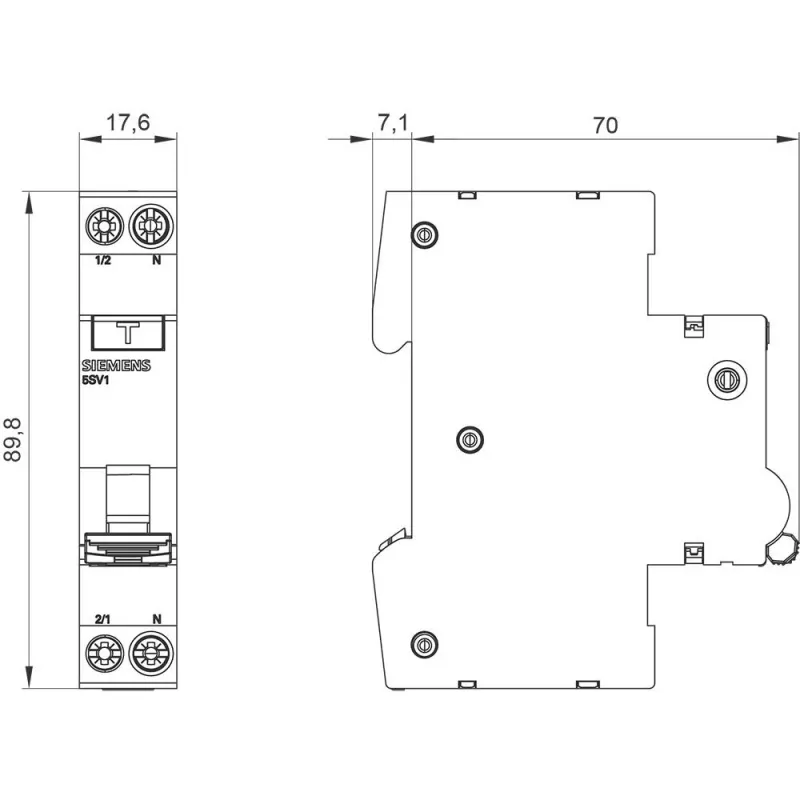

• Module width: 1 MW (18 mm)
• Degree of protection: IP20 (terminals), IP40 (with enclosure)
• Operating temperature: -25 to +45 °C
• Electrical endurance: 10000 switching cycles
• Mechanical endurance: 20000 switching cycles
• Overvoltage category: III
• Pollution degree: 2
• Standards: IEC 61009-1

Our verdict

A compact and dependable RCBO that delivers essential protection in a space-saving design, ideal for modern electrical installations.
