Siemens 6SL3244-0BB13-1FA0 SINAMICS G120 Control Unit s PROFINET a Safety Integrated

Equipped with PROFINET IO and integrated safety functions including STO, SS1, SBC, SLS, SSM, and SDI, this Siemens control unit delivers high-performance motion control for SINAMICS G120 power modules.

Overview

The Siemens 6SL3244-0BB13-1FA0 is a control unit designed for the SINAMICS G120 drive system. It provides advanced control and communication capabilities, making it suitable for a wide range of industrial applications. The unit supports PROFINET IO for seamless integration into automation networks and features an integrated web server for easy commissioning and diagnostics.

What stands out

• Integrated safety functions (STO, SS1, SBC, SLS, SSM, SDI) for enhanced machine safety.
• PROFINET IO communication for fast and reliable data exchange.

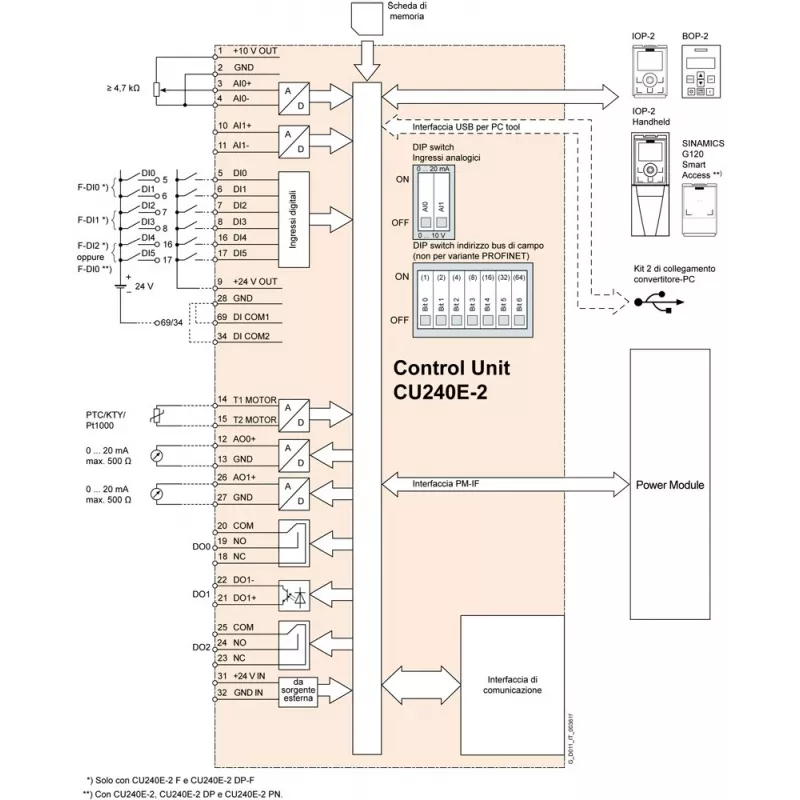

• Onboard digital and analog I/O: 6 DI, 3 relay DO, 2 AI, 2 AO.
• Encoder interface for HTL/TTL/SSI incremental encoders.
• SD card slot for parameter backup and firmware updates.
• USB interface for commissioning and diagnostics.
• Integrated PID controller, basic positioner, and brake control.

Technical details

• Product Type: Control Unit for SINAMICS G120
• Series: SINAMICS G120
• Communication Interface: PROFINET IO
• Safety Integrated Functions: Yes (STO, SS1, SBC, SLS, SSM, SDI)
• Digital Inputs (DI): 6 (freely parameterizable)
• Digital Outputs (DO): 3 (relay outputs)
• Analog Inputs (AI): 2 (0-10V, 0/4-20mA)
• Analog Outputs (AO): 2 (0-10V, 0/4-20mA)
• Encoder Interface: Yes (for incremental encoders HTL/TTL/SSI)
• Memory Card Slot: SD card slot
• Supply Voltage: 24 V DC
• Protection Class: IP20
• Operating Temperature: 0 to 50 °C
• Mounting Type: Wall mounting / DIN rail mounting
• Integrated Web Server: Yes
• USB Interface: Yes (for commissioning and diagnostics)
• Integrated Functions: PID controller, Basic positioner, Brake control
• Compatibility: SINAMICS G120 Power Modules
• Firmware Version: V4.7 SP9 or higher
• Certifications: CE, UL, cUL, RCM, KC

Our verdict

A versatile and safety-focused control unit that brings advanced motion control and connectivity to SINAMICS G120 drives, ideal for demanding industrial environments.
