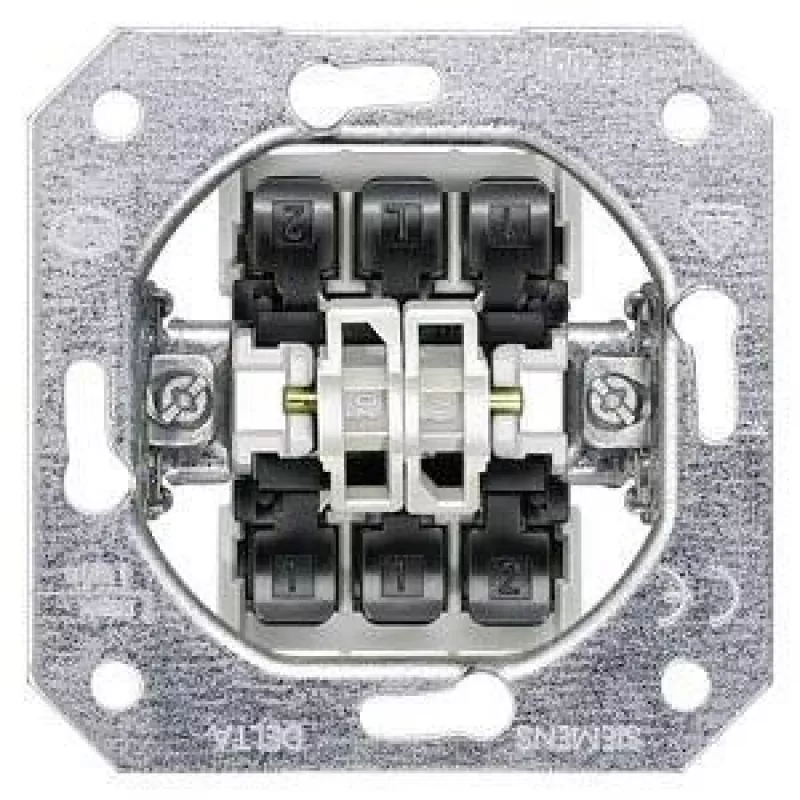

Siemens DELTA spínač žalúzií/roletových 5TA21180KK, polárna biely

The Siemens DELTA blind/shutter switch insert provides reliable up/down control for motorized blinds and shutters in residential and commercial installations. Its rocker switch mechanism ensures intuitive operation, while the flush-mount design integrates seamlessly into standard wall boxes.

Advantages

The switch insert is made of thermoplastic for durability and is halogen-free. It features screw terminals that accept solid or stranded conductors from 1.5 to 2.5 mm², ensuring secure wiring. The switch is rated for 10 A at 250 V AC, suitable for most blind motors.

Suitable for

• Controlling blinds and shutters in homes, offices, and public buildings
• Flush-mounted installations with standard 60 mm wall boxes
• Use with Siemens DELTA cover plates and frames (not included)

Key specifications

• Switch function: Up/Down control for blinds/shutters
• Switch type: Rocker switch
• Number of poles: 1
• Rated current: 10 A
• Rated voltage: AC 250 V
• Frequency: 50/60 Hz
• Mounting type: Flush-mount
• Connection type: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm²
• Housing material: Thermoplastic
• Colour: Polar White
• Series: Siemens DELTA
• IP protection class: IP20
• Operating temperature: -25 to +50 °C
• Halogen-free: Yes
• Overvoltage category: III
• Pollution degree: 2
• Compliance: VDE

Recommendations

Combine this insert with a Siemens DELTA cover plate and frame in matching polar white for a complete switch. Ensure installation is carried out by a qualified electrician.
