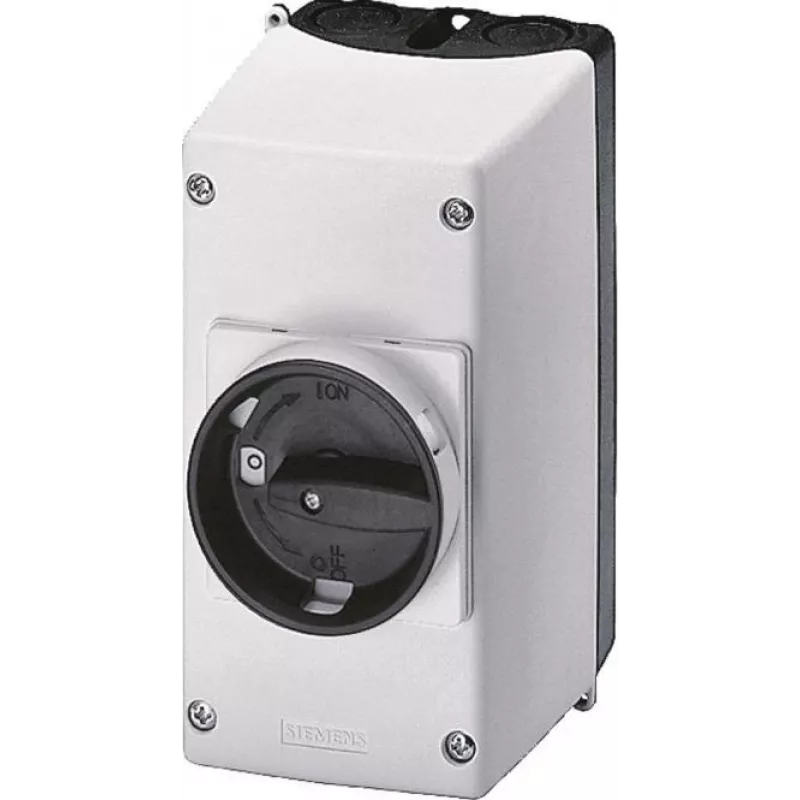

Siemens povrchové puzdro IP55 72mm 3RV1923-1DA (3RV19231DA00)

The Siemens 3RV1923-1DA surface mounting enclosure is a robust and reliable housing designed for circuit breakers of the SIRIUS 3RV2 series. With an IP55 rating, it offers protection against dust and water jets, making it suitable for industrial environments. The enclosure is lockable and made of durable plastic in grey color.

Advantages

High ingress protection (IP55) ensures reliable operation in harsh conditions. The lockable design prevents unauthorized access. Compatible with Siemens SIRIUS 3RV2 devices in sizes S00 and S0, providing flexibility for various applications.

Suitable for

• Industrial control panels
• Machine building
• Power distribution systems
• Automation environments requiring IP55 protection

Key specifications

• Product Type: Enclosure
• Intended Application: Circuit Breaker Housing
• Compatible Device Series: Siemens SIRIUS 3RV2
• Compatible Device Size: S00, S0
• Ingress Protection (IP) Rating: IP55
• Mounting Method: Surface mounting
• Locking Mechanism: Lockable
• Enclosure Material: Plastic
• Color: Grey
• Operating Ambient Temperature: -20 to +60 °C
• Storage Temperature: -50 to +80 °C
• Relative Humidity: 10-95% (non-condensing)
• Pollution Degree: 3 (according to IEC 60947-1)
• Certifications/Approvals: CE, UL, CSA, CCC, EAC, RCM, KC

Recommendations

This enclosure is ideal for protecting Siemens SIRIUS 3RV2 circuit breakers in demanding industrial settings. Ensure proper installation and use of appropriate cable glands to maintain IP55 rating.
