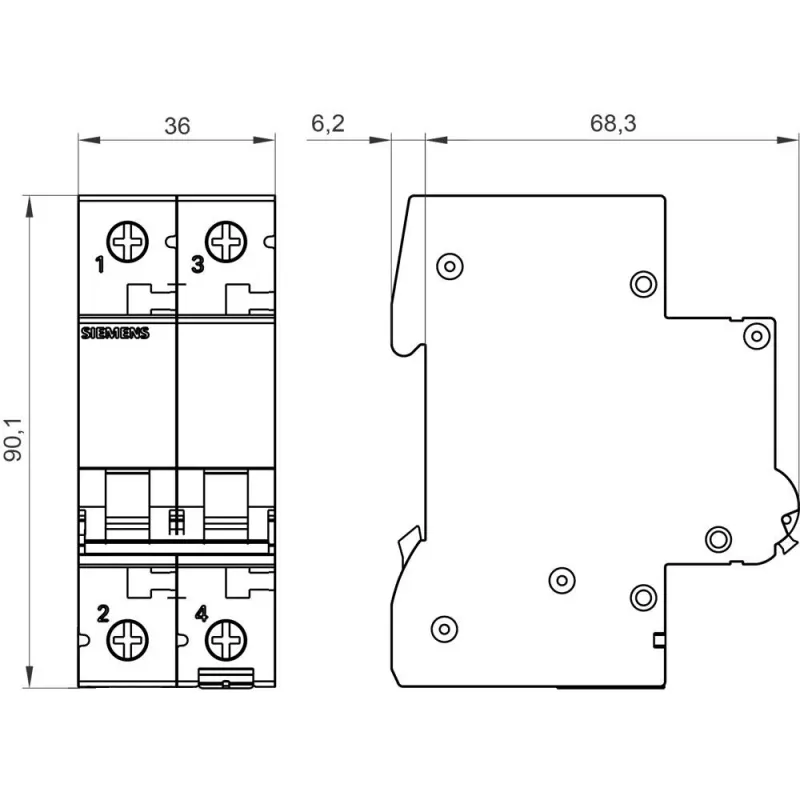

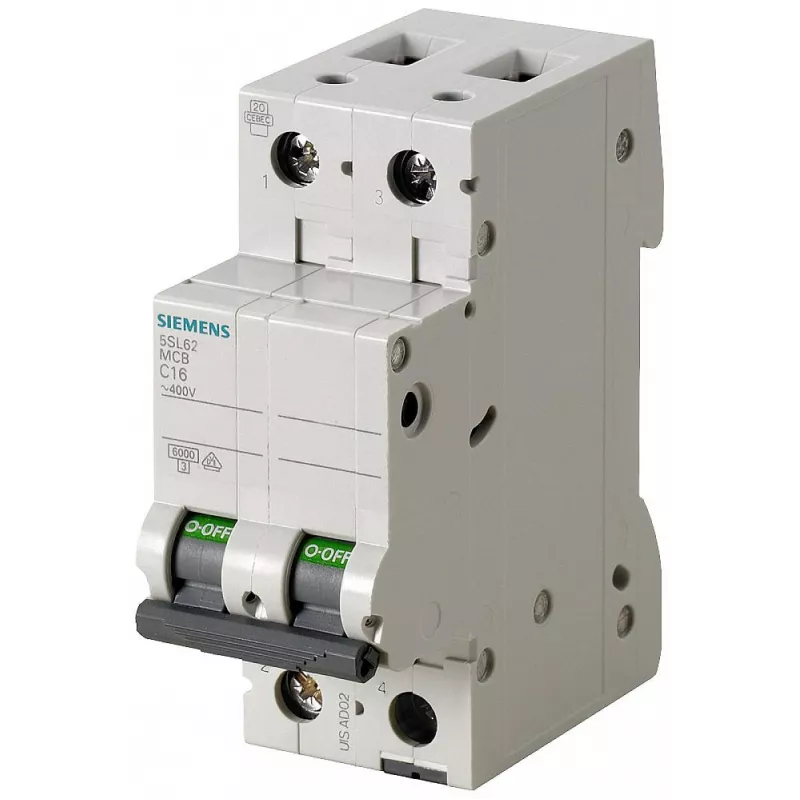

Siemens SENTRON 5SL62067 MCB 2-pólový C 6A 6kA 230/400V AC

The Siemens 5SL62067 is a 2-pole miniature circuit breaker (MCB) with a C tripping characteristic, rated at 6 A. It is part of the SENTRON 5SL series and is designed for reliable protection of electrical circuits in residential and commercial installations. With a rated switching capacity of 6 kA according to IEC 60898-1, it offers robust performance for standard applications.

Highlights

• 2-pole design for phase and neutral switching
• C characteristic suitable for general lighting and socket circuits
• Rated current 6 A with 6 kA breaking capacity
• DIN rail mounting for easy installation

In daily use

The 5SL62067 provides dependable overcurrent and short-circuit protection. Its screw terminals accept conductors from 0.75 to 35 mm² (solid) or 0.75 to 25 mm² (stranded), allowing flexible wiring options. The device operates at 230/400 V AC and 50/60 Hz, making it compatible with standard European power systems.

Full specifications

• Rated current: 6 A
• Tripping characteristic: C
• Number of poles: 2
• Rated operational voltage: 230/400 V AC
• Rated switching capacity: 6 kA (IEC 60898-1)
• Frequency: 50/60 Hz
• Mounting type: DIN rail (EN 60715)
• Degree of protection: IP20 (terminals), IP40 (with enclosure)
• Terminal type: Screw terminals
• Terminal capacity (solid): 0.75 - 35 mm²
• Terminal capacity (stranded): 0.75 - 25 mm²
• Energy limitation class: 3
• Electrical endurance: 10,000 switching cycles
• Mechanical endurance: 20,000 switching cycles
• Ambient operating temperature: -25 to +45 °C
• Storage temperature: -40 to +75 °C
• Standard: IEC 60898-1
• Product series: SENTRON 5SL
• Overvoltage category: III
• Pollution degree: 2

Final note

The Siemens 5SL62067 is a reliable choice for circuit protection in residential and commercial electrical installations, offering proven performance and ease of installation.
