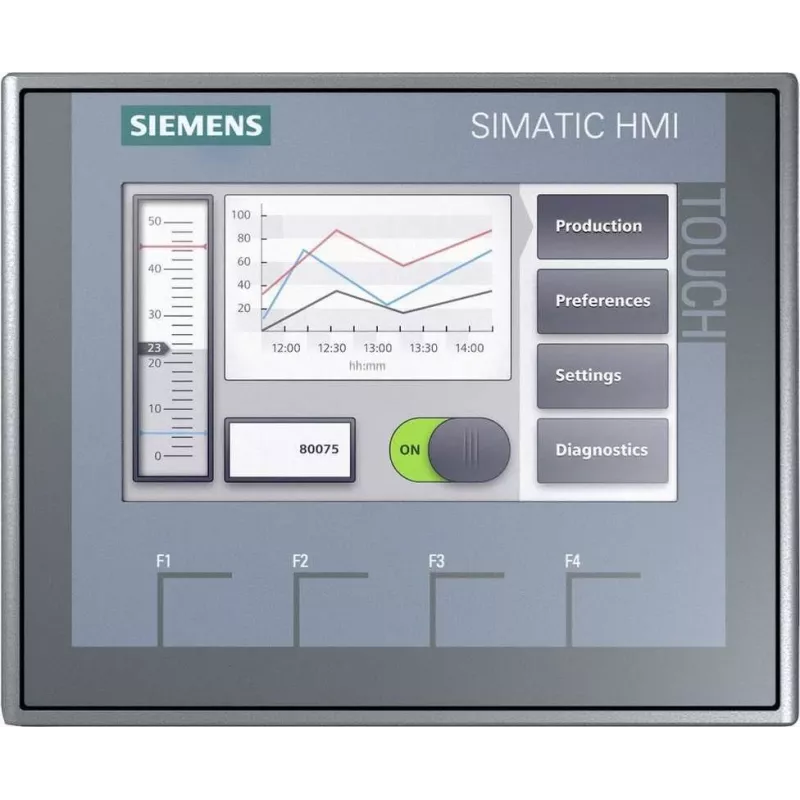

Siemens SIMATIC HMI KTP400 Basic Panel (6AV2123-2DB03-0AX0)

The Siemens SIMATIC HMI KTP400 Basic Panel is a Basic Panel with key and touch operation and a 4-inch TFT display showing 65536 colours. It features a PROFINET interface and can be configured from WinCC Basic V13 / STEP 7 Basic V13. The Basic Panels are designed for cost-effective implementation of simple visualization tasks in the machine-level area.

Key features

• Key and touch operation
• 4-inch TFT display with 65536 colours
• PROFINET interface
• Configurable from WinCC Basic V13 / STEP 7 Basic V13
• Contains open source software, provided free of charge, see enclosed CD
• Basic equipment and functionality for simple visualization tasks

Specifications

• Brand: Siemens
• MPN: 6AV21232DB030AX0
• Module type: Digital
• International protection (IP) code: IP65
• Product colour: Grey
• Operating temperature: 0 - 50 °C
• Width: 140 mm
• Height: 116 mm
• Weight: 459 g
• Conformity certificates: CE, RoHS, REACH
