Siemens SIRIUS ACT otočný prepínač predný element, plast, biely, 2-pozície, aretovaný, 22mm 3SU1002-2BP60-0AA0

With a robust IP69K protection rating, this Siemens SIRIUS ACT selector switch front element is built for demanding industrial environments. The white actuator and black front ring provide clear visual status indication.

Overview

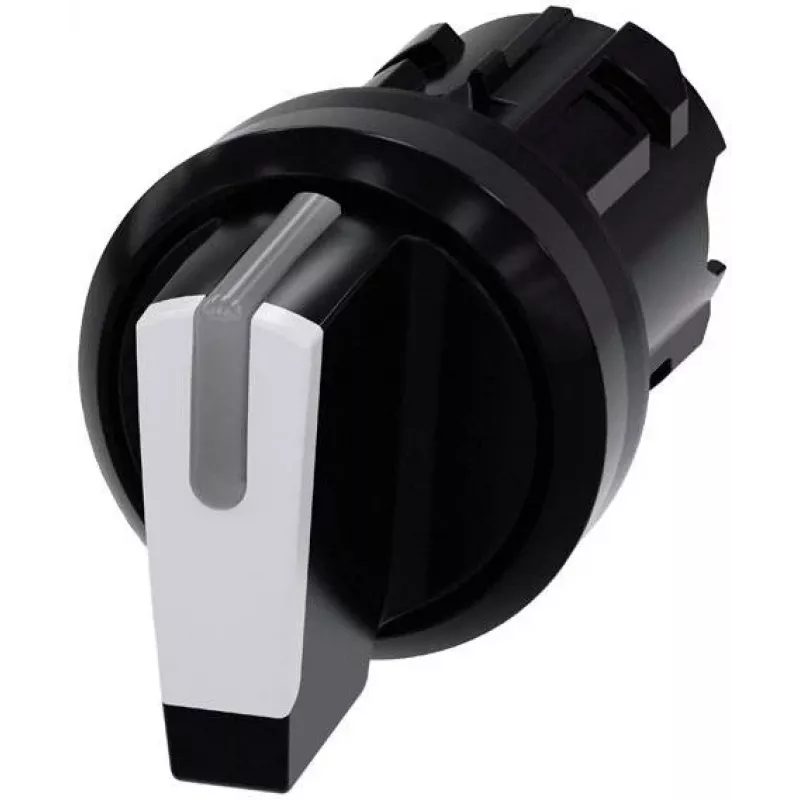

The Siemens SIRIUS ACT front element is a 22mm selector switch actuator designed for use with compatible holder and contact blocks (sold separately). It features a short handle with two latching positions marked O-I, offering a 90° operating angle. The actuator is made of plastic and is non-illuminated.

What stands out

• High degree of protection: IP66, IP67, IP69, IP69K
• Wide operating temperature range: -25 to +70 °C
• Compact 22.3mm mounting diameter fits standard 22mm cutouts
• Clear O-I position marking for easy status recognition

Technical details

• Product type: Selector switch front element
• Series: SIRIUS ACT

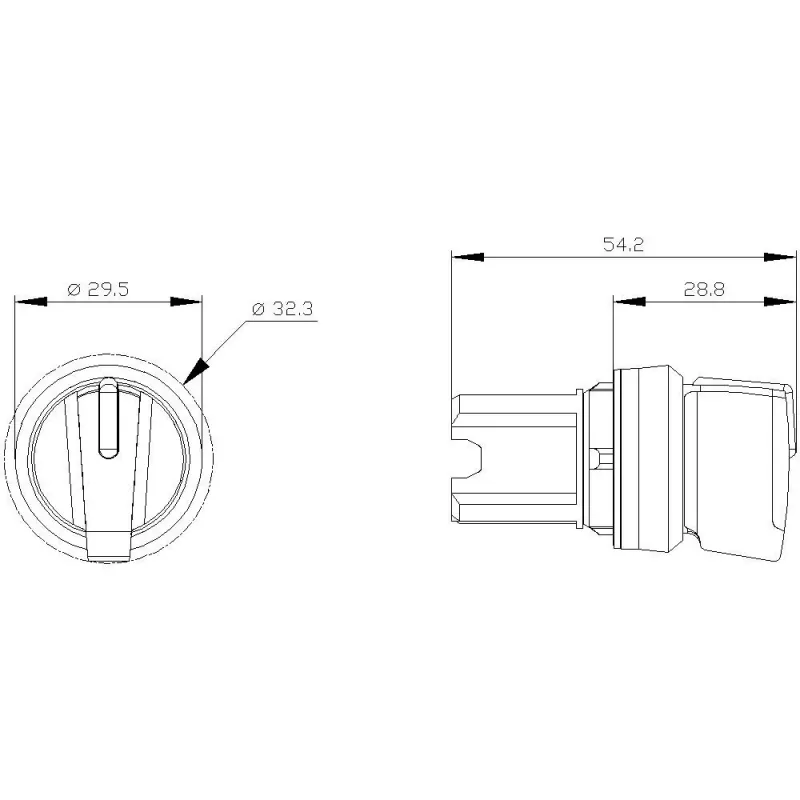

• Mounting diameter: 22.3 mm
• Actuator design: Short handle
• Number of switch positions: 2
• Switching position marking: O-I
• Operating angle: 90°
• Operation mode: Latching
• Illumination: Non-illuminated
• Material of actuator: Plastic
• Color of actuator: White
• Material of front ring: Plastic
• Color of front ring: Black
• Degree of protection (NEMA): NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
• Operating temperature: -25 to +70 °C
• Standards: IEC 60947-5-1, EN 60947-5-1, UL 508, CSA C22.2 No. 14
• Compatibility: Requires holder and contact blocks (sold separately)
• Design: Round

Our verdict

A reliable and durable selector switch front element for industrial control panels, offering high protection and clear operation.
