Siemens SIRIUS diódový modul pre stýkač veľkosť S00, DC 12-250 V, 3RT2916-1EH00

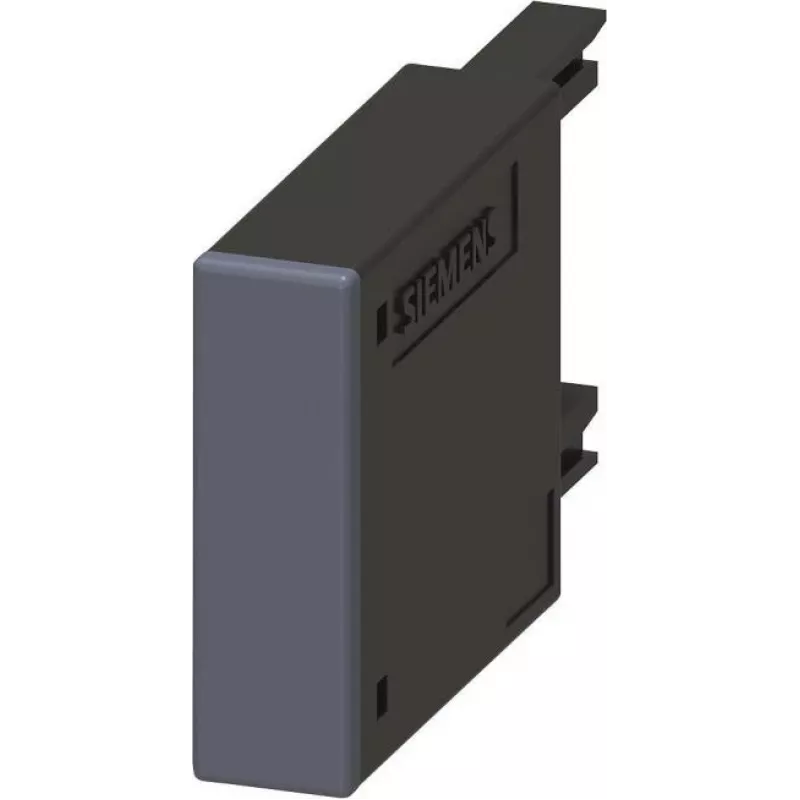

The Siemens SIRIUS 3RT2916-1EH00 is a high-quality diode module designed as a damping module for DC-operated contactor coils. It ensures reliable suppression of voltage spikes and extends the lifespan of contactors in industrial automation systems. This plug-in module is specifically compatible with Siemens SIRIUS 3RT2 contactors of frame size S00, offering easy front-side installation without additional wiring.

Advantages

• Effective coil damping for DC operation
• Compact design for space-saving installation
• Quick and tool-free front-side plug-in mounting
• High reliability with CE, UL, and CSA approvals
• Wide operating temperature range for harsh environments

Suitable for

• Siemens SIRIUS 3RT2 contactors with frame size S00
• DC control circuits with voltage range 12–250 V DC
• Industrial automation, machinery, and panel building

Key specifications

• Product Type: Diode module (damping module)
• Compatibility: Siemens SIRIUS 3RT2 contactors, frame size S00
• Operating Voltage: 12–250 V DC
• Mounting: Front-side plug-in
• Number of Diodes: 1
• Series: SIRIUS
• Ambient Operating Temperature: -25 to +60 °C
• Storage Temperature: -40 to +80 °C
• Approvals: CE, UL, CSA
• Electrical Connection: Plug-in

Recommendations

For optimal performance, use this diode module exclusively with Siemens SIRIUS 3RT2 contactors of frame size S00. Ensure the DC supply voltage is within the specified range. This module is not suitable for AC operation.
