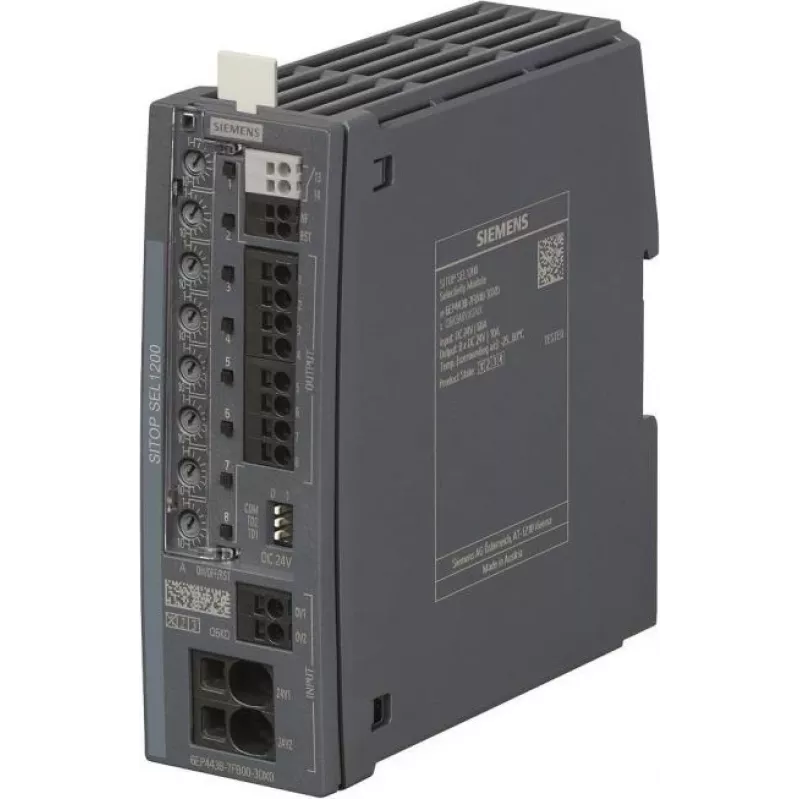

Siemens SITOP SEL1200 selektívny modul DC 24V 8x2-10A (6EP4438-7FB00-3DX0)

The Siemens SITOP SEL1200 selectivity module (6EP4438-7FB00-3DX0) provides selective overload and short-circuit protection for up to eight 24 V DC output circuits. Designed for DIN rail mounting, it ensures high system availability by isolating faulty channels without affecting the rest of the system.

Advantages

Electronic protection with adjustable current limits per channel (2 A to 10 A) enables precise coordination with downstream loads. Group alarm contact and LED status indicators per channel simplify diagnostics and reduce downtime.

Suitable for

• Industrial control cabinets requiring selective 24 V DC distribution
• Automation systems with multiple loads needing individual protection
• Integration with SITOP 24 V DC power supplies

Key specifications

• Input voltage: 24 V DC (20.4 V DC to 30 V DC)
• Number of outputs: 8
• Output current per channel: 2 A to 10 A (adjustable)
• Total output current: max. 60 A
• Protection: electronic, selective overload and short-circuit
• Mounting: DIN rail
• Signaling contact: 1 x NO (normally open) for group alarm
• Operating temperature: -25 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Protection class: IP20
• Connection: screw-type terminals
• Approvals: CE, cULus, ATEX, IECEx

Recommendations

Use with SITOP power supplies for optimal system reliability. Adjust channel currents according to load requirements.
