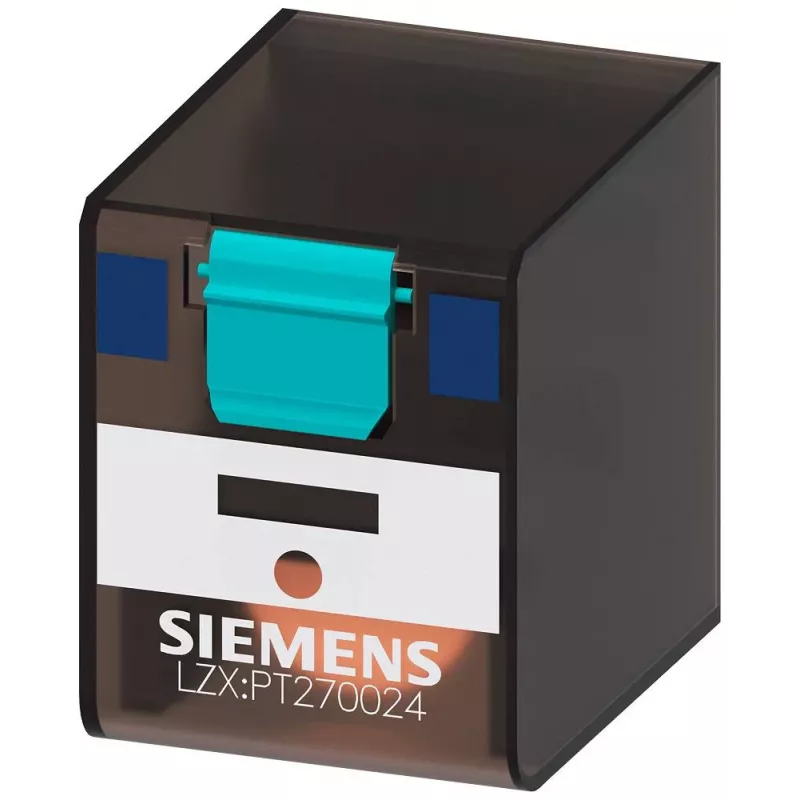

Siemens zásuvné relé 24VDC 2W LZX:PT270024

Plug-in relay with 2 changeover contacts, capable of switching up to 10 A. Coil voltage 24 V DC, coil power 2 W.

Advantages

Silver nickel contacts provide reliable switching performance. Plug-in design allows quick replacement without rewiring. Suitable for a wide range of industrial control applications.

Suitable for

• Industrial automation systems

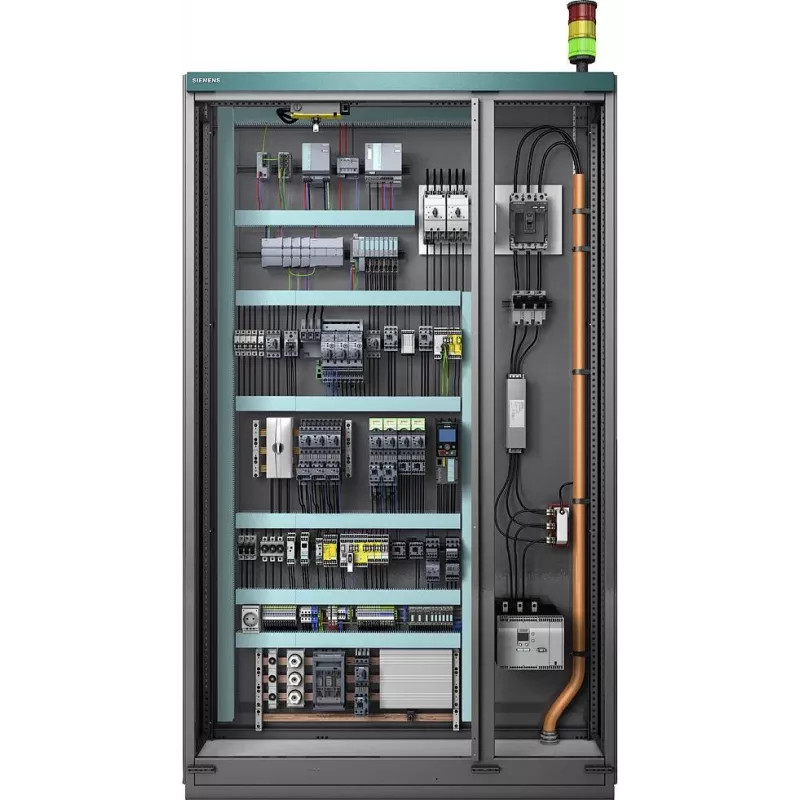

• Control cabinets
• Building installation

Key specifications

• Coil voltage: 24 V DC
• Coil power: 2 W

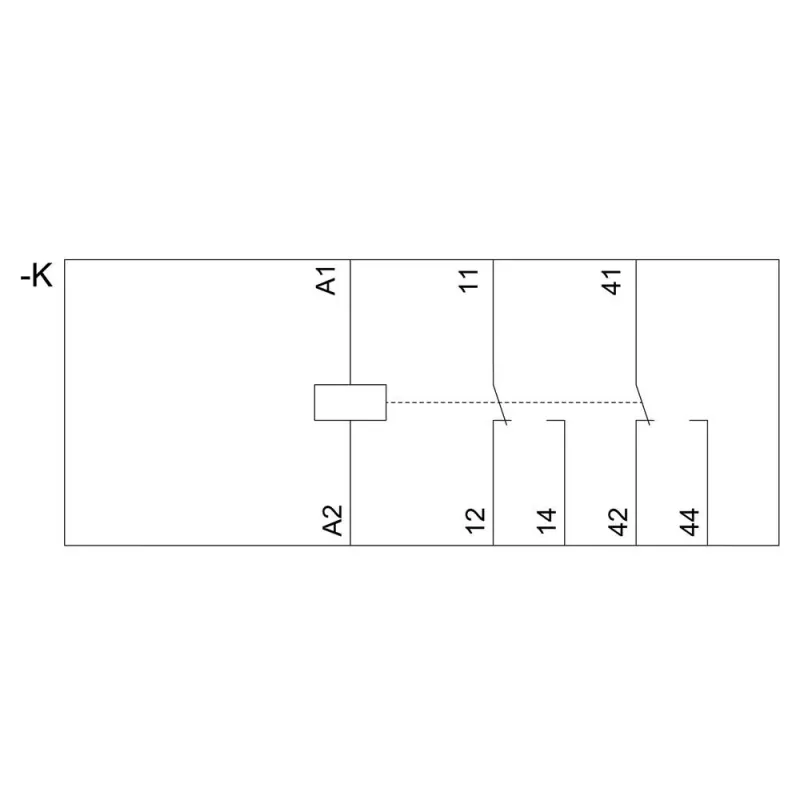

• Contact configuration: 2 changeover (DPDT)
• Rated switching current: 10 A
• Max switching voltage AC: 250 V AC
• Max switching voltage DC: 24 V DC
• Contact material: Silver Nickel (AgNi)
• Electrical life: 100,000 operations
• Mechanical life: 20,000,000 operations
• Operating temperature range: -25 to +60 °C
• Protection degree: IP40
• Mounting type: Plug-in
• Series: SIRIUS 3TG10
• Number of pins: 8

Recommendations

Use with a suitable relay socket for secure mounting and easy wiring.
