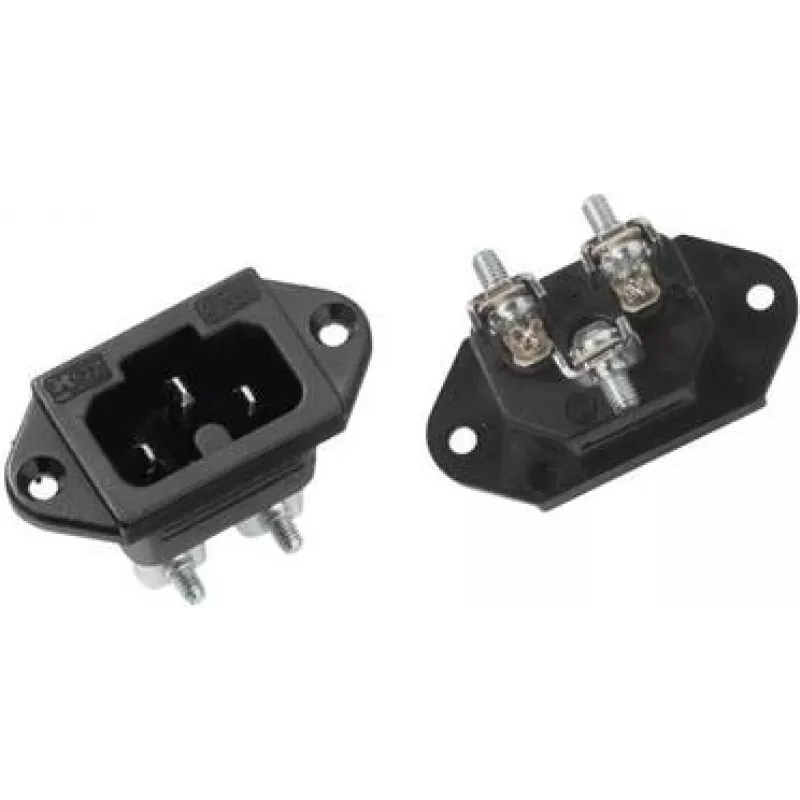

Sieťová zástrčka Bachmann 918.170 čierna

The Bachmann 918.170 electrical power plug in black is a thermoplast version designed for screw terminal connections. Constructed from durable thermoplastic, it accepts an AC input voltage of 250 V and supports a maximum current of 10 A, providing a compact and reliable connection solution for various electrical installations.

Advantages

The thermoplastic housing offers good mechanical stability and electrical insulation while keeping the unit lightweight. Screw terminal design simplifies wiring and ensures secure contact for conductors. The black finish provides a neutral appearance suitable for visible installations.

Suitable for (tasks / use cases)

• Small electrical appliances and equipment up to 10 A
• Temporary or fixed power connections in workshops and offices
• Replacement or repair of compatible power cords and plugs

Key specifications

• Brand: Bachmann
• Model / MPN: 918.170
• EAN: 4016514005895
• Housing material: Thermoplastic
• Colour: Black
• Rated voltage: 250 V AC
• Rated current: 10 A max
• Connection type: Screw terminal

How to use

Disconnect power before installation. Open the plug housing to access the screw terminals, strip the cable conductors to the recommended length, insert each conductor into the corresponding terminal, and tighten the screws to secure the connection. Reassemble the housing and verify that the plug is correctly assembled and free of exposed conductors before applying power.

Recommendations

Use the plug within its rated voltage and current limits (250 V, 10 A). Ensure correct conductor sizing and secure terminal screws to maintain safe operation. For installations requiring higher current or specific standards, choose a connector with appropriate ratings.
