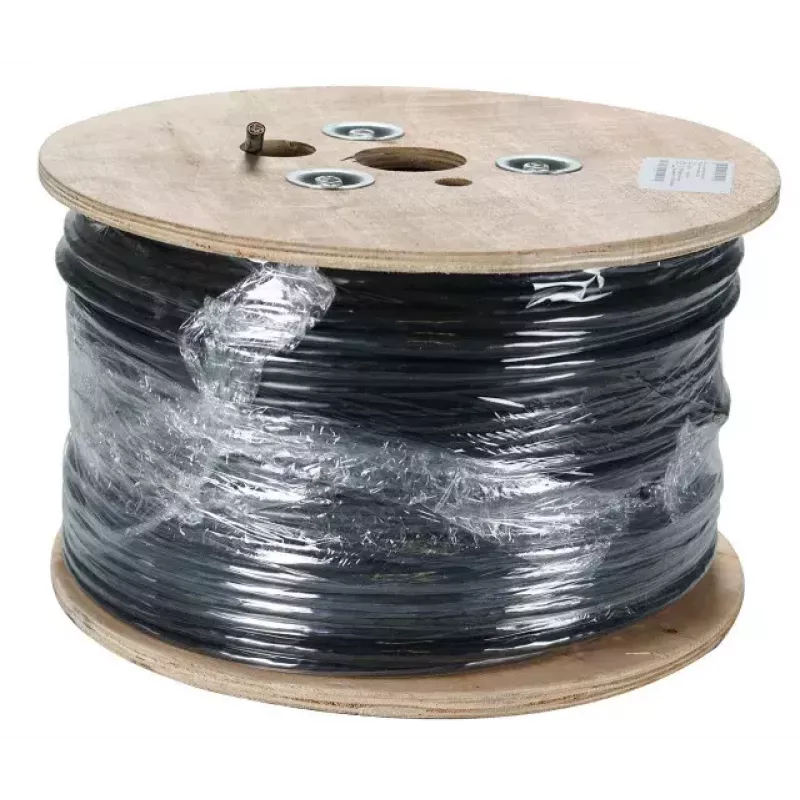

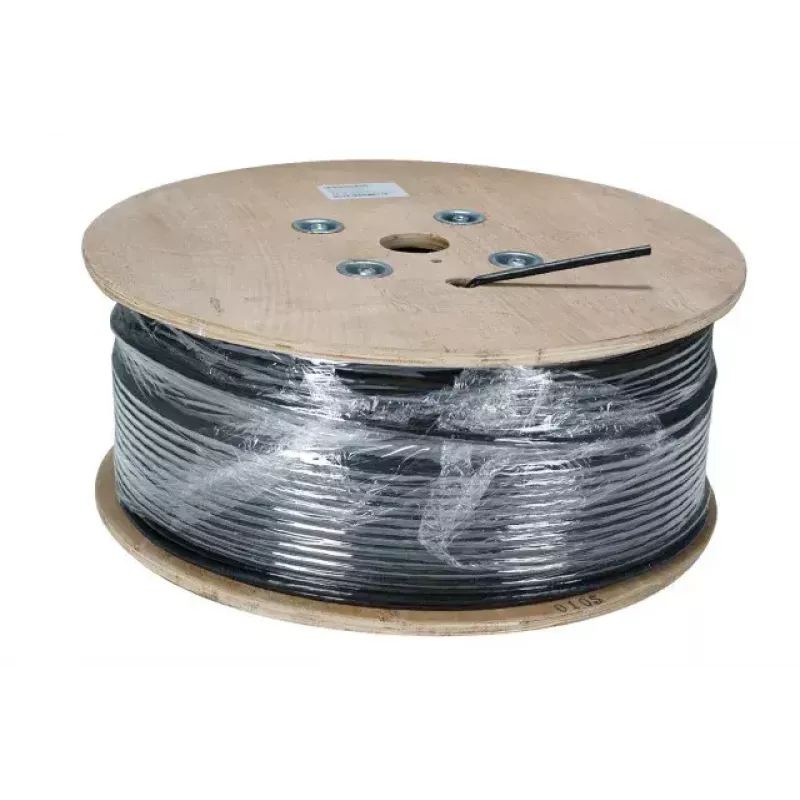

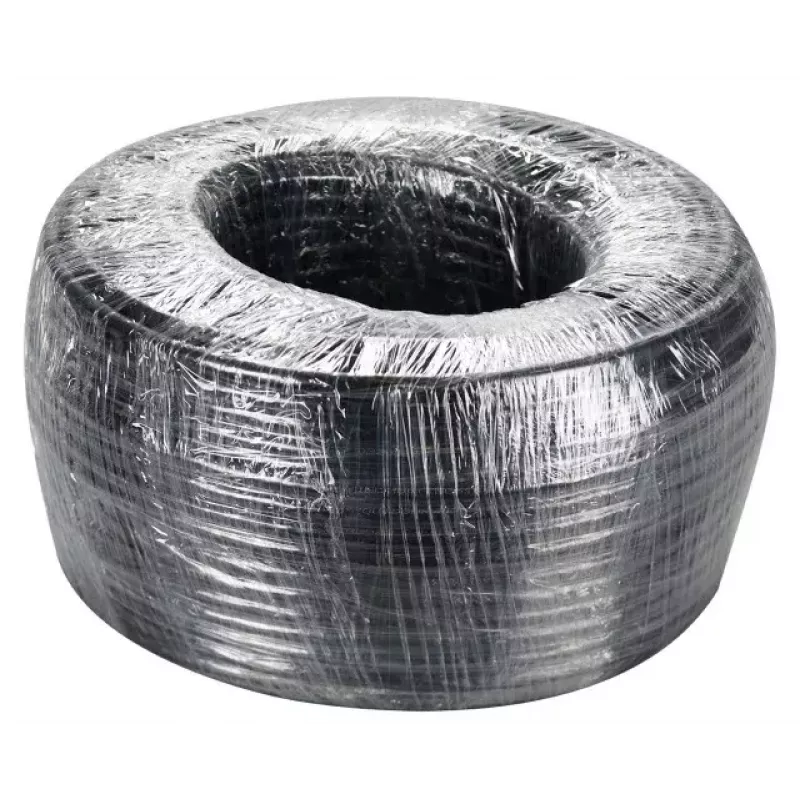

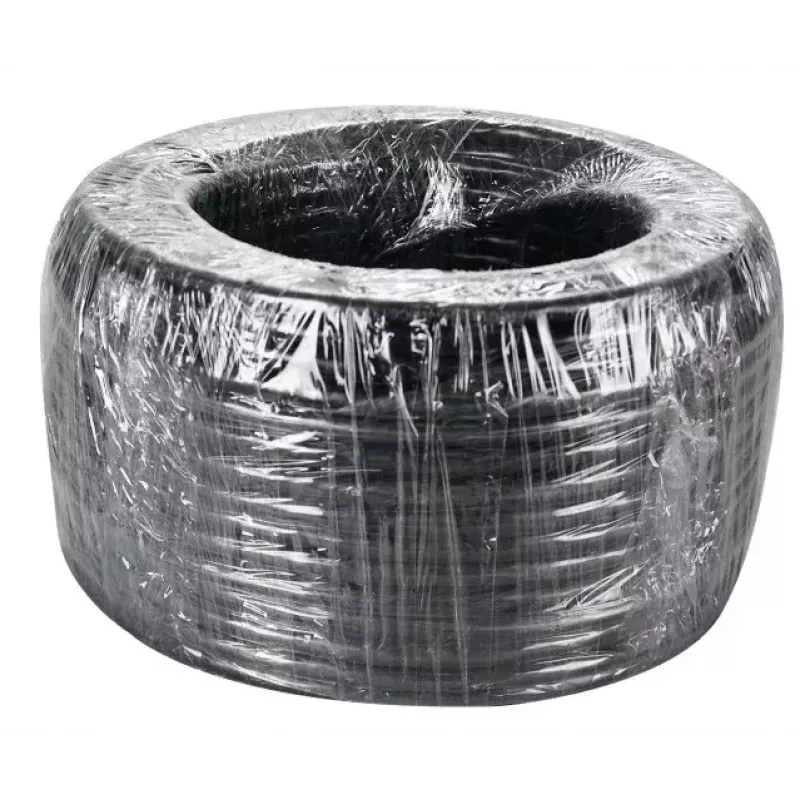

Sieťový kábel EFB Elektronik 99733.100-CPR S/FTP Cat7 100 m čierny

The EFB Elektronik 99733.100-CPR S/FTP Cat7 100m cable is a versatile networking cable for indoor, outdoor and underground installations. Constructed as 4x2xAWG23/1 with S/FTP shielding, it supports transmission frequencies up to 1200 MHz and data rates up to 10000 Mbit/s. The cable has a halogen-free inner sheath and a PE outer sheath and meets IEC 60332-1 as well as Construction Products Regulation Euroclass Dca. It is compliant with ISO/IEC 11801, DIN EN 50173 and DIN EN 50288-4-1 standards.

Advantages

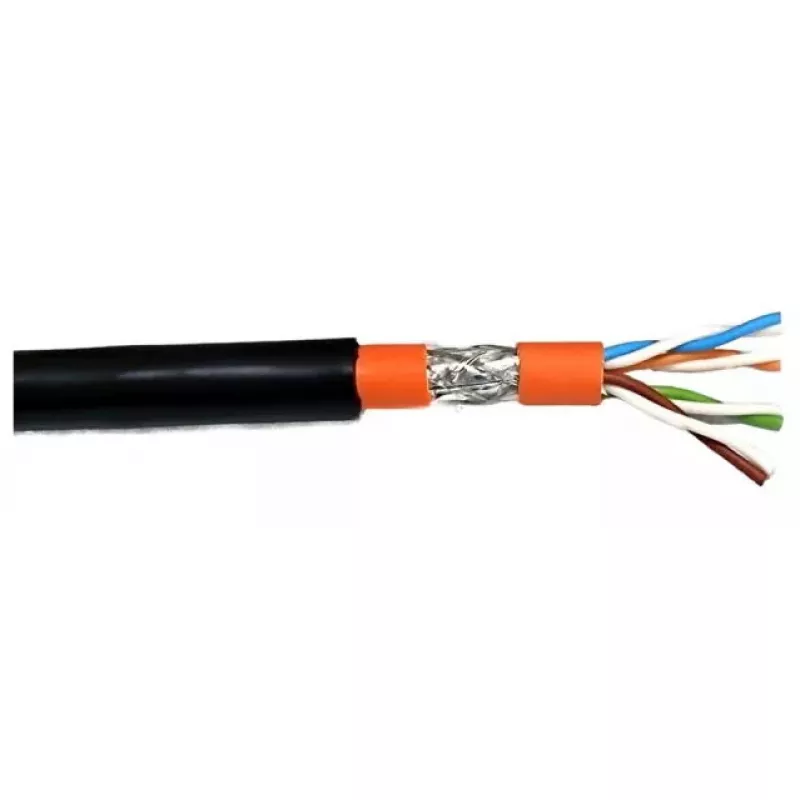

The S/FTP construction provides individual pair shielding plus an overall shield for improved protection against electromagnetic interference. The halogen-free inner sheath and PE outer sheath offer suitable material properties for installations in dry or damp rooms, outdoor exposure and buried applications. Compliance with IEC 60332-1 and Euroclass Dca ensures defined reaction-to-fire characteristics for building installations.

Suitable for

• Structured cabling in offices and data centers
• Indoor installations in dry or damp rooms
• Outdoor runs and direct-burial conduit installations
• High-speed Ethernet applications up to 10000 Mbit/s

Key specifications

• Type: S/FTP Cat7
• Conductor construction: 4x2xAWG23/1
• Transmission frequency: up to 1200 MHz
• Data rate: up to 10000 Mbit/s
• Length: 100 m
• Outer sheath: PE
• Inner sheath: halogen-free
• Standards: IEC 60332-1, ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1
• CPR Euroclass: Dca
• Colour: Black

How to use

Plan the cable route considering maximum run lengths and any bends or masonry penetrations. Terminate the S/FTP Cat7 cable with compatible RJ45 connectors or keystone jacks rated for Cat7/S/FTP use, ensuring correct pair alignment and shield connection to maintain performance. When installing outdoors or underground, protect the cable in conduit where required and follow local building codes and CPR marking requirements.

Recommendations

For best performance, avoid sharp bends and excessive tensile force during installation; ensure shields are properly grounded at termination points and use connectors and patch panels rated for Cat7 to preserve transmission characteristics.
