Sieťový kábel EFB Elektronik Cat.5e RJ-45 zelený 1m

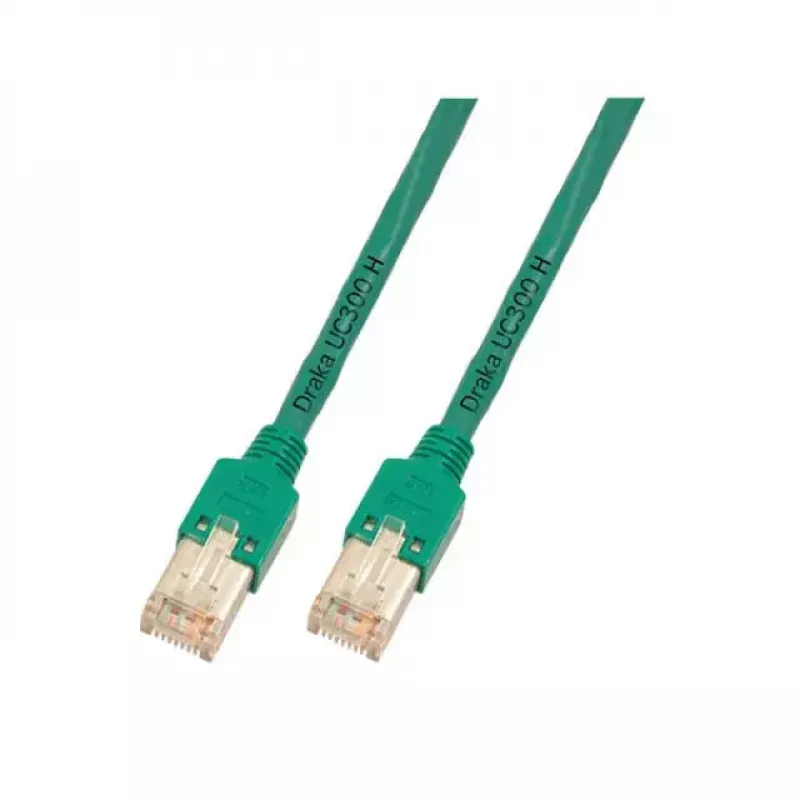

The EFB Elektronik Cat.5e F/UTP RJ-45 networking cable, 1 m long, provides 1 Gigabit Ethernet connectivity with foil-shielded twisted pairs for improved signal integrity. It is terminated with two shielded Hirose TM11 RJ45 plugs (IEC 60603-7-3) and coded to TIA/EIA 568B. The green jacket identifies the cable and the LSZH construction reduces hazardous emissions.

Advantages

Foil-shielded F/UTP construction with 4 pairs of AWG26/7 conductors delivers reliable 10/100/1000Base-T(X) performance up to 100 MHz. Shielded Hirose TM11 RJ45 plugs and an overall foil shield improve protection against electromagnetic interference. The cable meets flame retardant and low-halogen standards (IEC 60332-1, IEC 60754-2, IEC 61034) and includes a mounted strain relief boot for mechanical protection at the connector.

Suitable for

• Connecting switches, routers and network interfaces at Gigabit speeds
• Wired desktop or patch panel connections in offices and data closets
• Environments requiring reduced emissions and improved EMC—industrial and commercial installations

Key specifications

• Cable type: Cat.5e F/UTP, 4 x 2 x AWG26/7
• Bandwidth: 100 MHz (1 Gigabit Ethernet)
• Connectors: 2 × Hirose TM11 RJ45 shielded (IEC 60603-7-3), TIA/EIA 568B wiring
• Length: 1 m
• Jacket: LSZH, colour: Green, diameter ~5.4 mm
• Standards: Flame retardant IEC 60332-1, halogen-free IEC 60754-2, low smoke IEC 61034

How to use

Plug one RJ45 connector into the network port of your device and the other into a switch, router or patch panel port. Ensure connectors are fully seated until the strain relief boot aligns with the device housing. Use standard TIA/EIA 568B wiring ports; no configuration is required for basic Ethernet connectivity.

Recommendations

For best performance, avoid tight bends and prolonged compression of the cable; maintain bend radius greater than the cable diameter. Use the cable for in-room and patch-panel connections rather than long permanent horizontal runs.
