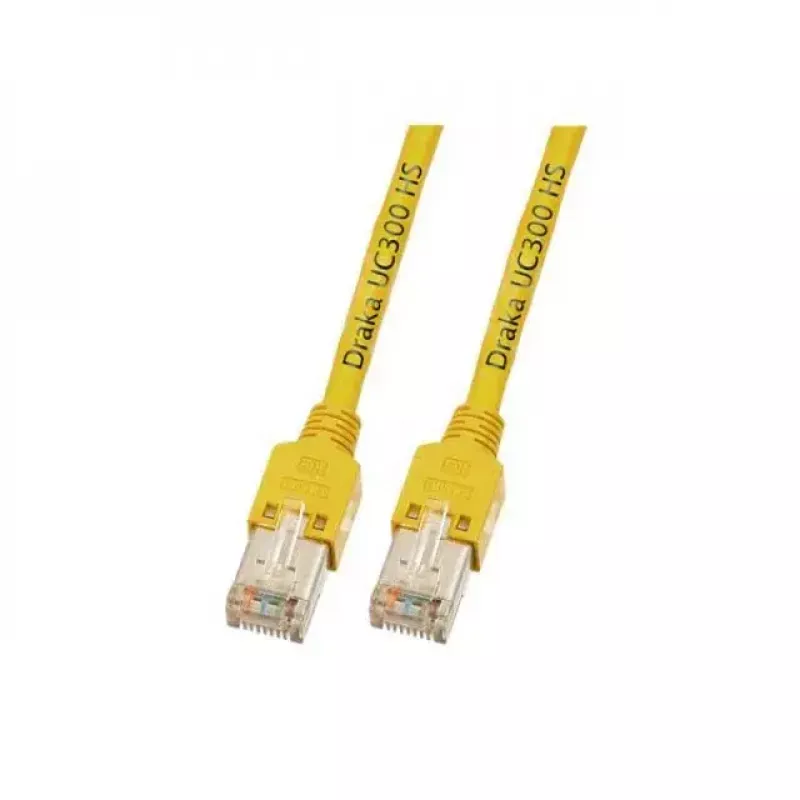

Sieťový kábel EFB Elektronik K8015.1 RJ-45 Cat5e 1 m žltý

The EFB Elektronik K8015.1 is a 1 m Cat5e Ethernet patch cable in yellow, designed for Gigabit Ethernet (10/100/1000Base-T(X)). It uses SF/UTP (S-FTP) construction with foil and braid shielding around the four twisted pairs to reduce electromagnetic interference. Both ends are fitted with shielded Hirose TM11 RJ45 plugs (IEC 60603-7-3) and the cable is wired to the TIA/EIA 568B standard.

Advantages

Shielded S-FTP construction provides improved protection against crosstalk and external interference compared with unshielded cables. Compact, shielded Hirose TM11 RJ45 plugs ensure reliable connector contact and mechanical stability. The cable meets flame retardant and low-smoke, halogen-free requirements (IEC 60332-1, IEC 61034, IEC 60754-2) and includes a mounted strain relief boot to reduce stress at the connector.

Suitable for

• Connecting switches, routers and patch panels in office or server environments
• Structured cabling where reduced EMI is required
• Short-distance Gigabit Ethernet links and device interconnects (1 m)

Key specifications

• Length: 1 m
• Standard: Cat5e, 100 MHz
• Data rates: 10/100/1000Base-T(X)
• Cabling: SF/UTP (S-FTP), 4 x 2 x AWG26/7
• Outer diameter: Ø 5.7 mm
• Connectors: 2 × Hirose TM11 RJ45, shielded (IEC 60603-7-3)
• Wiring: TIA/EIA 568B
• Safety: Flame retardant IEC 60332-1, halogen-free IEC 60754-2, low smoke IEC 61034
• Colour: Yellow

How to use

Plug each RJ45 connector into the network ports of the devices to be connected (for example, switch to workstation or patch panel). Ensure connectors are fully inserted until the shielded plug seats and the mounted strain relief boot is in place to minimize mechanical stress. Use the cable for short, horizontal or patch connections where a 1 m length is appropriate.

Recommendations

For optimal performance, avoid tight bends and kinks; maintain a bend radius of at least four times the cable diameter. Install in environments compatible with the cable's flame-retardant and halogen-free ratings, and consider additional grounding of shielded installations where required by local installation standards.
