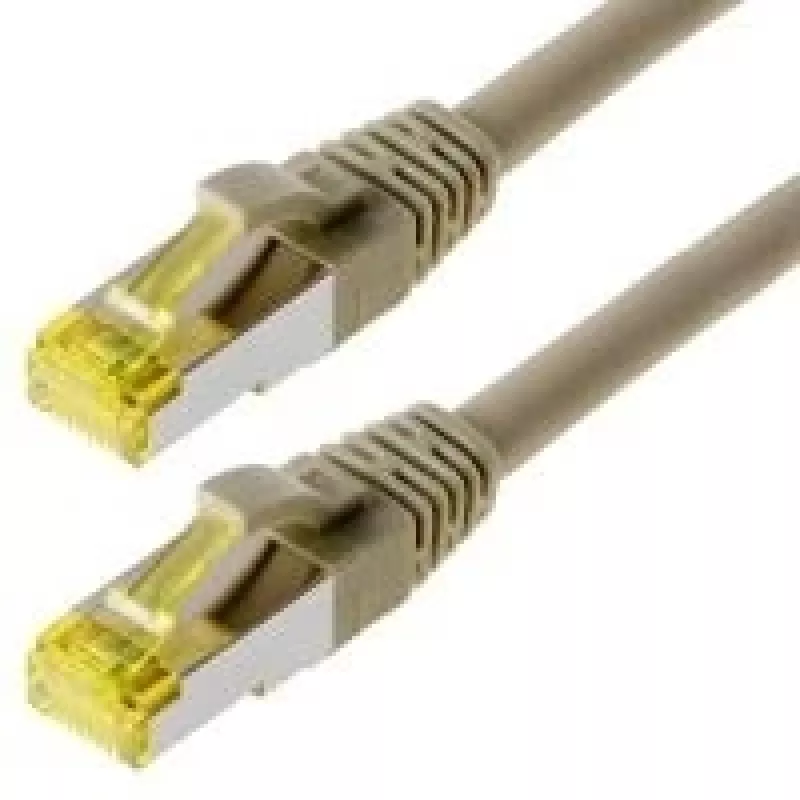

Sieťový kábel Helos CAT6a S/FTP (PIMF) 30 m

The Helos CAT6a S/FTP (PIMF) 30m networking cable is a shielded Ethernet cable designed for high-speed wired connections. It supports 10GBase-T cabling technology and provides data transfer rates up to 10000 Mbit/s. The cable is 30 metres long, finished in grey and terminated with RJ-45 connectors on both ends, making it suitable for connecting switches, routers, servers and workstations in commercial and home networks.

Advantages

The S/FTP (PIMF) construction combines an overall foil shield with individually shielded pairs, which reduces electromagnetic interference and crosstalk in densely cabled environments. Support for 10GBase-T ensures compatibility with modern gigabit and 10-gigabit network equipment. The 30 m length covers longer runs without the need for additional patch points, and the RJ-45 connectors provide broad compatibility with standard networking hardware.

Suitable for

• 10 Gigabit Ethernet links between switches and servers
• High-speed workstation and desktop connections
• Structured cabling in small to medium office environments
• Backbone or horizontal runs where shielding is required

Key specifications

• Cable length: 30 m
• Cabling technology: 10GBase-T
• Shielding: S/FTP (overall foil + individually shielded pairs / PIMF)
• Connectors: RJ-45 to RJ-45
• Maximum data rate: up to 10000 Mbit/s
• Colour: Grey

How to use

Connect one RJ-45 end to a network port on a router, switch or network card and the other RJ-45 end to the corresponding device. Ensure both ends are fully inserted until the connector latch engages. Route the cable to avoid sharp bends, excessive tension and sources of strong electromagnetic interference. For permanent installations, follow local cabling standards and secure the cable using appropriate clips or trunking.

Recommendations

For best performance, pair the cable with network equipment that supports 10GBase-T. Maintain bend radii recommended by cabling standards and avoid running the cable parallel to high-voltage power lines to minimise interference. Use shielded connectors and properly terminate shielding where required in structured cabling installations.
