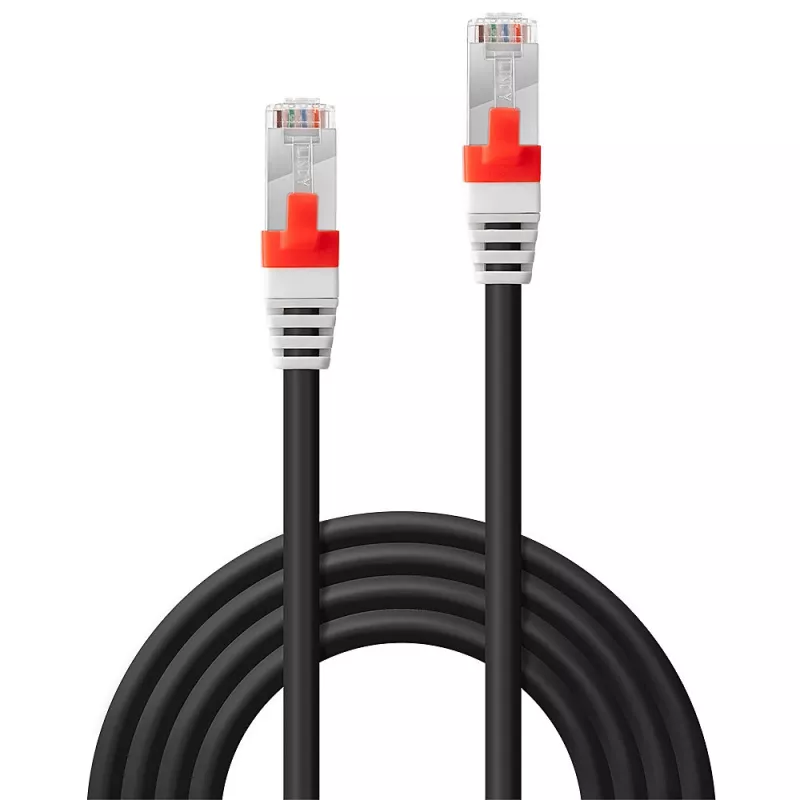

Sieťový kábel Lindy Cat.6 (A) SSTP/S/FTP PIMF 10 m RJ-45 čierny

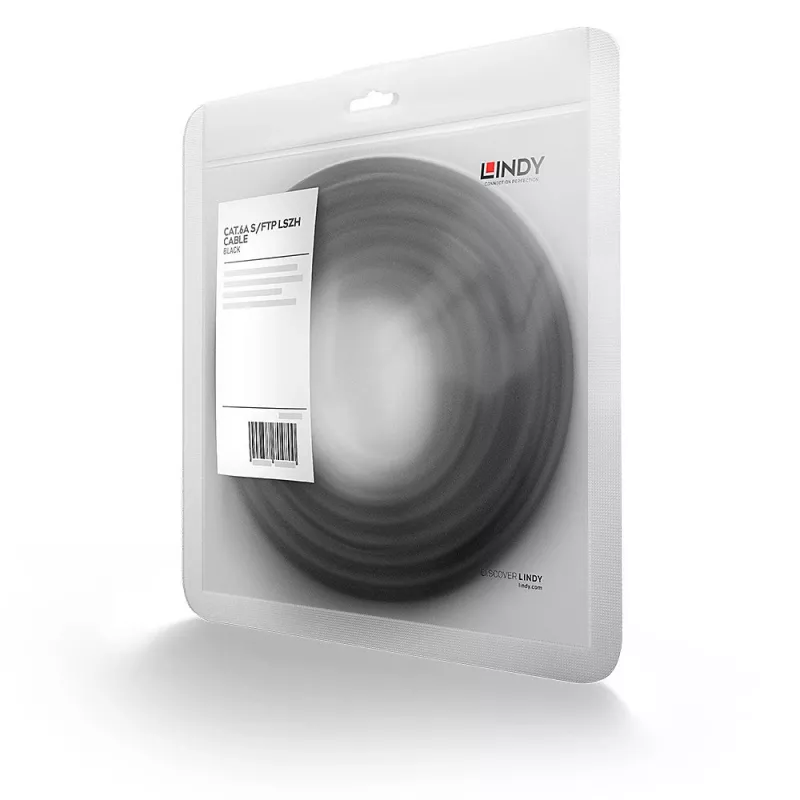

Cat.6A S/FTP network cable supporting bandwidths up to 500 MHz, designed for Ethernet standards up to 10GBase-T. The 10 m Lindy Cat.6(A) SSTP/S/FTP PIMF cable is shielded with an overall braid and foil around each twisted pair, manufactured and tested to ISO/IEC 11801 and supplied in an individual polybag. Connectors on both ends are RJ-45 with gold-plated contacts, and the cable sheath is halogen-free (LSZH) for reduced smoke and no halogen emissions.

Advantages

The shielded S/FTP (SSTP) construction reduces electromagnetic interference and crosstalk, supporting stable high-speed 10 Gigabit Ethernet at frequencies up to 500 MHz. Gold-plated RJ-45 contacts provide corrosion resistance and reliable long-term connectivity. The snagless strain-relief connector design protects the latch during installation and removal. The LSZH outer sheath lowers smoke output and prevents toxic halogen release, making the cable suitable for public or enclosed spaces.

Suitable for

• High-speed LAN installations requiring 10GBase-T performance
• Wired connections between switches, routers, servers and workstations
• Environments sensitive to electromagnetic interference (shielded cabling needed)
• Public or indoor spaces where low-smoke, halogen-free materials are required

Key specifications

• Cable category: Cat.6A (ISO/IEC 11801)
• Shielding: S/FTP (overall braid + foil per pair), PIMF drain
• Maximum frequency: 500 MHz
• Ethernet standard: up to 10GBase-T
• Length: 10 m

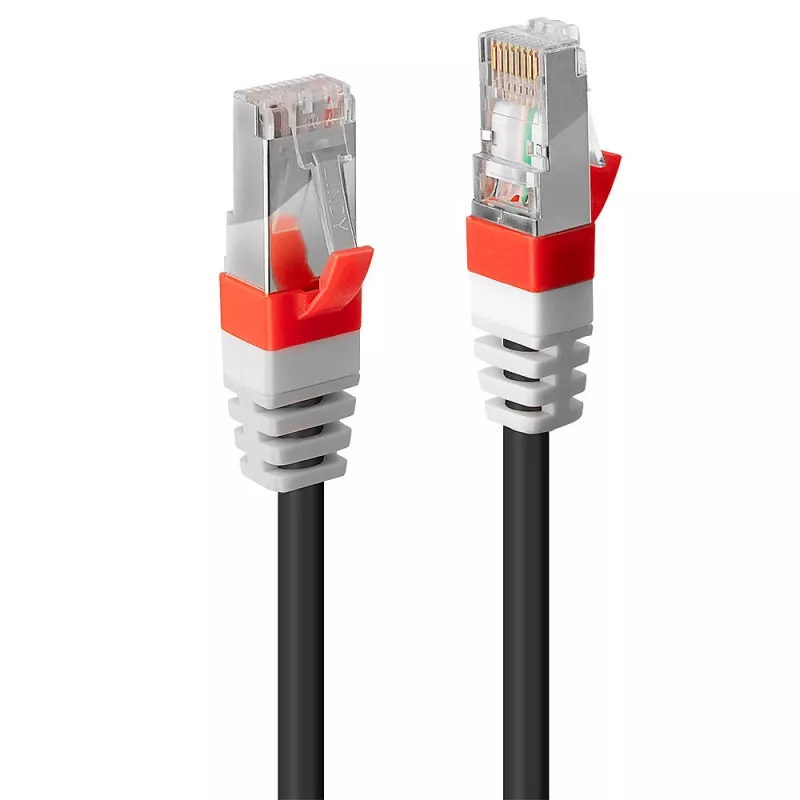

• Connectors: RJ-45 to RJ-45, gold-plated contacts
• Sheath: LSZH (halogen-free)
• Colour: Black

How to use

Connect one RJ-45 connector to your network device (for example a switch, router or network card) and the other RJ-45 connector to the corresponding port on the remote device. Ensure connectors are fully inserted until the latch clicks; the snagless design protects the latch during routing and removal. Route the cable without sharp bends and avoid tight bundling with power cables to maintain signal integrity. For best 10GBase-T performance, use terminated runs within recommended lengths and proper grounding of shielded installations.

Recommendations

For installations requiring full shielding effectiveness, ground the cable shield at a single point per run and avoid creating loops. Use this Cat.6A S/FTP cable for backbone links, server connections and other applications where reduced interference and LSZH construction are required.
