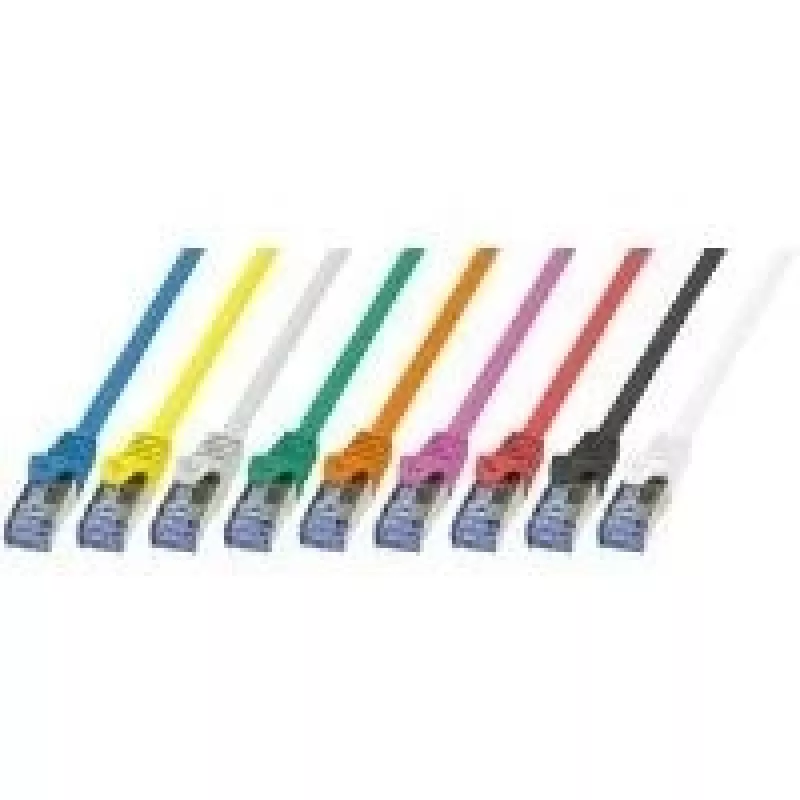

Sieťový kábel LogiLink 15 m Cat.6A RJ-45 S/FTP biely

Patch Cable Cat.6A 10G S/FTP PIMF PrimeLine white 15m LogiLink® is a 15-meter networking cable with RJ45 connectors designed for high-speed data transmission. The cable uses S/FTP (screened foiled twisted pair) construction with PIMF shielding and bare copper conductors to provide stable 10 Gbps performance and reduced electromagnetic interference. The outer jacket is LSZH (low smoke zero halogen), and the cable conforms to ISO/IEC 11801, EN50288 and TIA/EIA 568-C.2 standards.

Advantages

The LogiLink Cat.6A S/FTP cable combines PIMF shielding and 26/7 AWG stranded conductors to maintain signal integrity over 15 m while supporting 10G Ethernet. Its LSZH jacket minimizes toxic smoke in case of fire and is suitable for installations where low emission materials are required. Standard compliance (ISO/IEC 11801, EN50288, TIA/EIA 568-C.2) ensures compatibility with structured cabling systems.

Suitable for (tasks / use cases)

• 10 Gigabit Ethernet connections in home and office networks
• Connections between switches, routers and patch panels
• High-bandwidth applications such as streaming, backups and large file transfers
• Installations requiring LSZH jacketed cables (public buildings, data centers)

Key specifications

• Cable length: 15 m
• Category: Cat.6A, 10G
• Shielding: S/FTP (PIMF)
• Conductor: bare copper, AWG 26/7 (stranded)
• Connectors: RJ-45 to RJ-45
• Jacket: LSZH (low smoke zero halogen)
• Weight: 0.52 kg
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2

How to use

Connect one RJ-45 end to your network device (switch, router or NIC) and the other end to the corresponding port on the paired device or patch panel. Ensure connectors are fully inserted and locked. Route the cable to avoid sharp bends and keep it clear of high-power electrical lines to minimize interference. For permanent installations, secure the cable with appropriate clips or cable management accessories, maintaining the bend radius recommended by the connector and cable manufacturer.

Recommendations

For optimal 10G performance, keep individual cable runs within the recommended 100 m channel length for Cat6A and avoid running parallel to mains power cables for extended distances. Use the LSZH jacketed cable in public or enclosed spaces where low-smoke materials are required.
