Sieťový mediakonvertor EFB Elektronik EL024V2

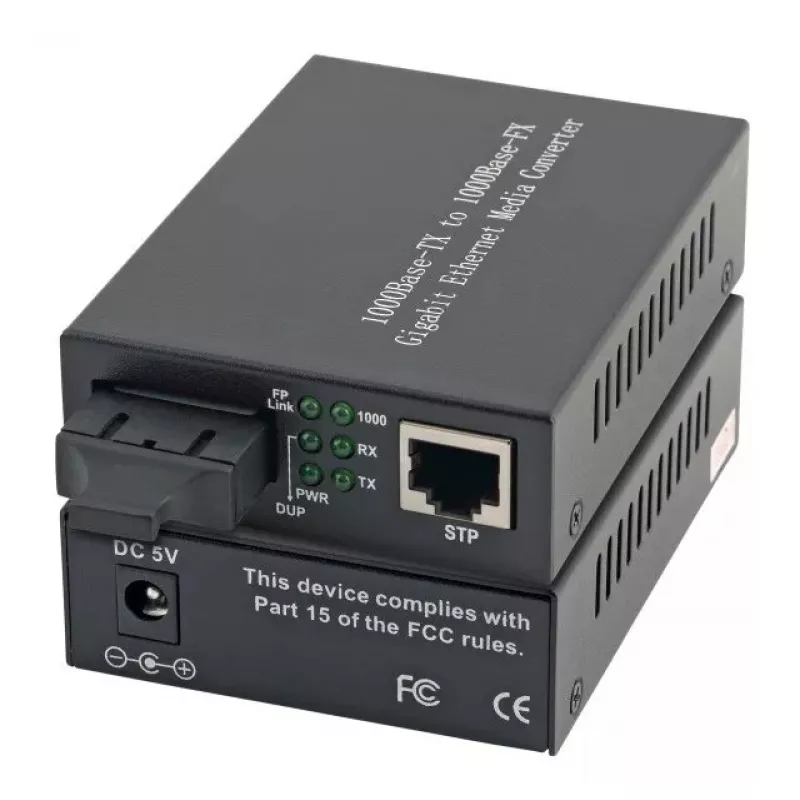

The EFB Elektronik EL024V2 is a network media converter designed to bridge copper Gigabit Ethernet and multimode fiber connections. It accepts a 1000Base-T copper input via an RJ-45 port and provides a 1000Base-SX fiber output with SC connectors, supporting up to 1000 Mbit/s throughput and multimode links to a maximum distance of 550 m. Housed in a compact black enclosure, the device enables seamless integration of fiber segments into existing LAN infrastructure while maintaining Gigabit speeds.

Advantages

The EL024V2 supports full Gigabit Ethernet data rates, ensuring wire-speed transfer between copper and fiber segments. Its SC fiber connector and multimode 1000Base-SX interface provide reliable physical connections for short- to medium-range fiber links. With a single RJ-45 port for 1000Base-T input and two fiber ports, the unit offers a straightforward solution for extending network reach without complex configuration. The compact, black housing is suitable for rack or tabletop placement where a discreet, professional appearance is required.

Suitable for

• Extending local area networks over multimode fiber up to 550 m
• Connecting copper Gigabit switches or servers to fiber backbone segments
• Segmenting network domains where electrical isolation is needed

Key specifications

• Maximum data transfer rate: 1000 Mbit/s
• Ethernet interface type: Gigabit Ethernet (1000Base-T input)
• Fiber interface: 1000Base-SX multimode
• Fiber optic connector type: SC
• Ethernet LAN (RJ-45) ports: 1
• Fiber ports quantity: 2
• Maximum transfer distance over multimode fiber: 550 m
• Product colour: Black

How to use

Connect a Gigabit Ethernet cable from your switch, router, or server to the RJ-45 port on the EL024V2. Terminate the fiber link with compatible multimode SC connectors and plug them into the fiber ports. Power the unit following the manufacturer's power specifications, then verify link and activity LEDs to confirm successful connection and data transmission. No advanced configuration is required for basic media conversion; the device operates transparently at layer 1 to pass traffic between copper and fiber segments.

Recommendations

For reliable operation, use multimode fiber cables that match the 1000Base-SX transmission characteristics and maintain proper fiber handling practices to avoid bend losses. Ensure connectors are clean and intact before mating. Place the converter in a ventilated environment away from extreme temperatures and electromagnetic interference. When integrating into larger networks, verify duplex and speed settings on connected devices if link negotiation issues occur.
