Sieťový switch EDIMAX FS-5428X — 24 Gigabit-SFP portov, 4 × 10GbE SFP+ porty

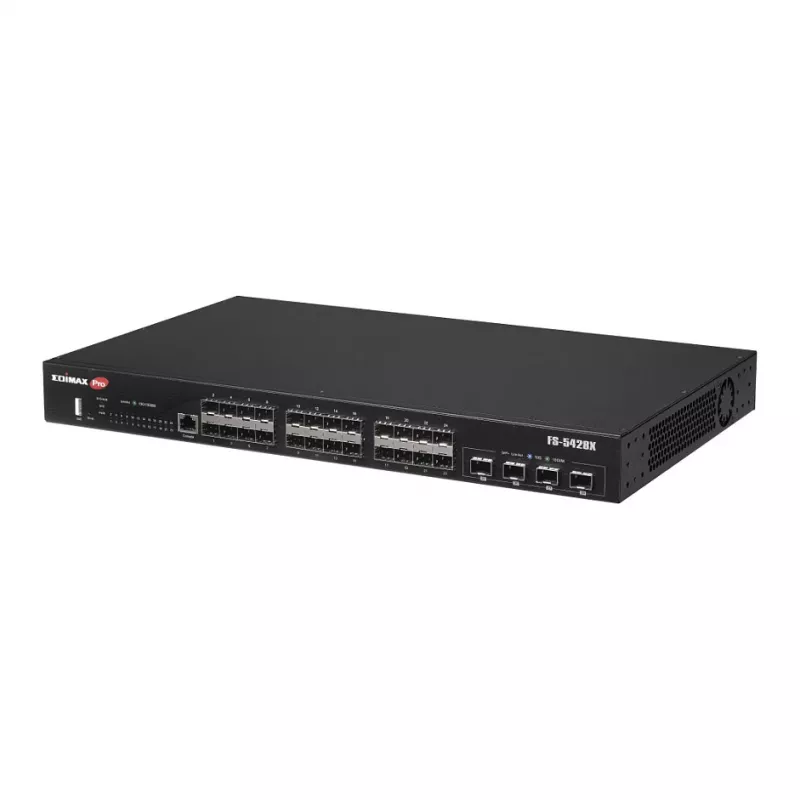

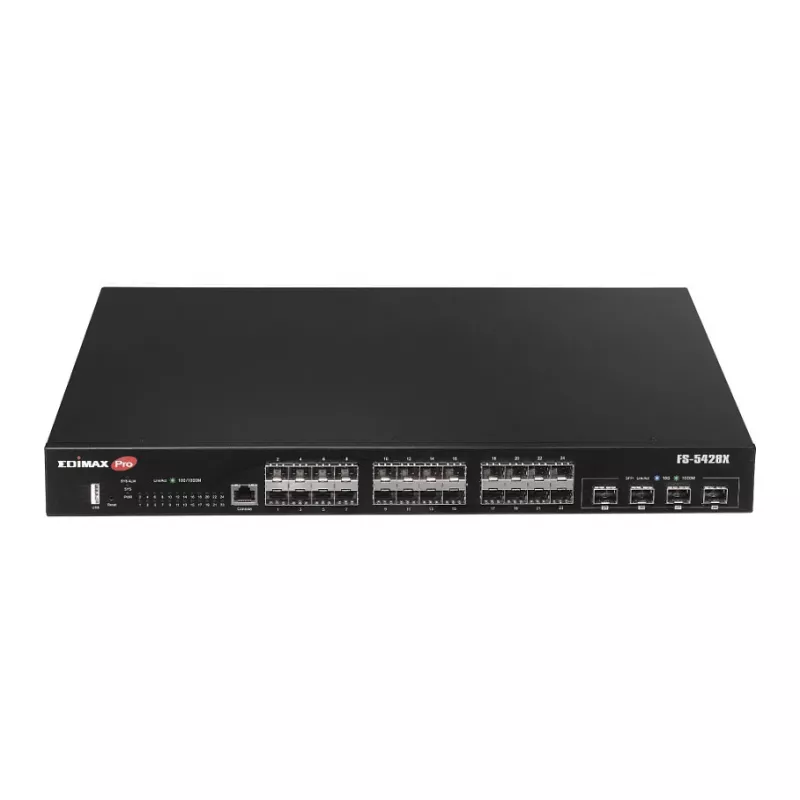

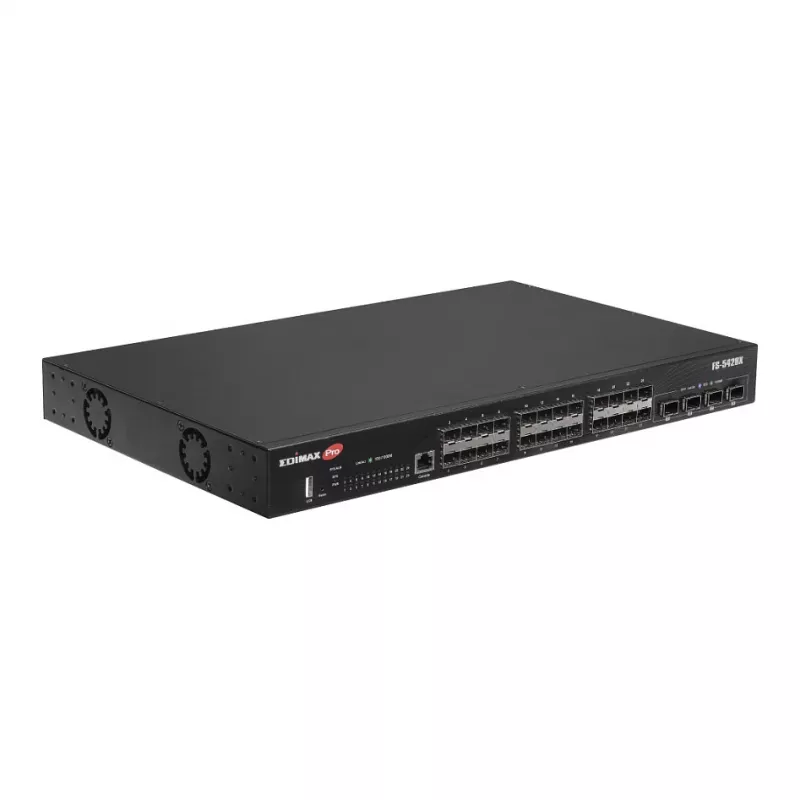

EDIMAX FS-5428X is a rack-mountable network switch that provides 24 Gigabit SFP fiber ports alongside 4 × 10GbE SFP+ uplink ports. Engineered for fiber-based networks and aggregation layers, this switch supports high-density SFP connectivity and 10Gb uplinks for backbone and distribution roles in data centers, ISP edge locations, and enterprise networks. The compact 1U form-factor fits standard racks and is intended for environments that require reliable fiber switching and high-throughput uplink capacity.

Advantages

The FS-5428X combines 24 Gb SFP ports with four 10GbE SFP+ uplinks to enable flexible network design where multiple fiber links must be aggregated or connected to higher-speed backbones. Its rack-mountable 1U design saves space in equipment racks while providing fiber-only port density to minimize media conversion. The presence of dedicated SFP and SFP+ cages supports a mix of transceiver types and reach options, and the switch is designed to integrate into existing fiber infrastructures with predictable throughput and low-latency switching.

Suitable for

• Fiber backbone switching in campus and data center aggregation layers
• Server uplinks and top-of-rack fiber aggregation
• ISP edge and metropolitan fiber access points
• Interconnecting multiple SFP-based switches and media converters

Key specifications

• Port count: 24 Gigabit SFP fiber ports and 4 × 10GbE SFP+ ports
• Form factor: 1U rack-mount design suitable for standard server racks
• Layer: Ethernet switching optimized for fiber connections and uplink aggregation
• Uplink speed: Four 10GbE SFP+ ports for high-capacity aggregation
• Media support: SFP and SFP+ transceiver compatibility for single-mode and multi-mode fiber (dependent on chosen transceivers)
• Intended use: Aggregation and distribution of SFP-based fiber links

How to use

Install the FS-5428X into a standard 19-inch equipment rack using the supplied rack ears and secure with appropriate screws. Populate the SFP and SFP+ slots with compatible fiber transceivers according to desired reach and fiber type, then connect fiber patch cables to the network. Configure basic switch settings such as VLANs, link aggregation, and port speed/duplex through the management interface or console according to your network design. Ensure proper cooling and power source for continuous operation.

Recommendations

Choose transceivers that match your fiber type (single-mode or multi-mode) and required reach, and use high-quality patch cords and cable management to maintain signal integrity. When deploying as an aggregation switch, configure link aggregation on uplink ports to increase available bandwidth and redundancy. Monitor port status and temperature through the management interface and plan for appropriate rack ventilation when several fiber switches are installed together.
