Sieťový transceiver modul Netgear AGM732F-C SFP 1310 nm 1250 Mbit/s 3,3 V hliník

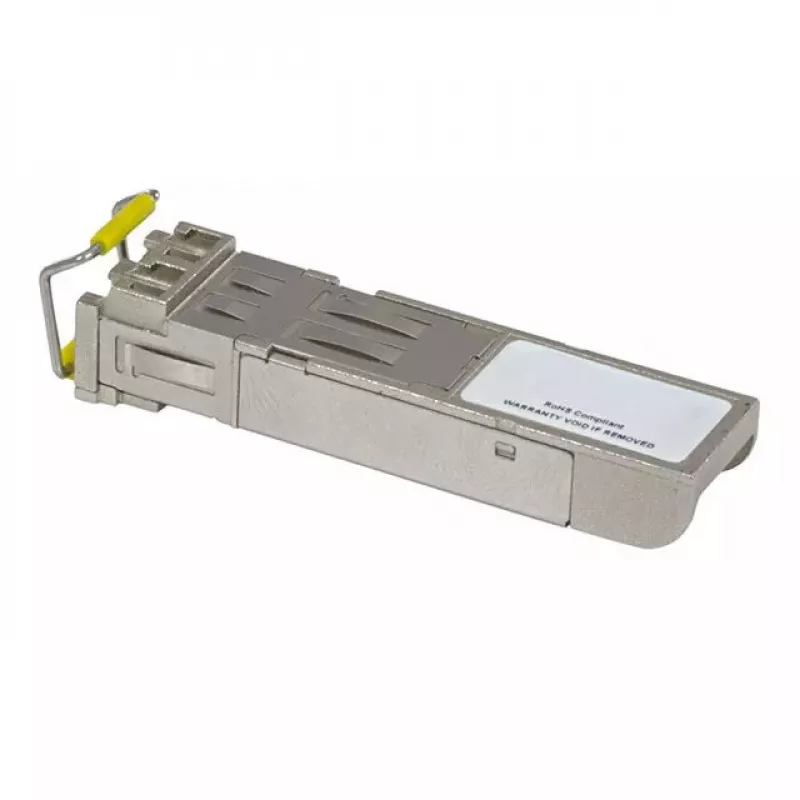

Netgear AGM732F-C is an SFP fiber optic transceiver module designed for standard SFP ports. It supports a data rate up to 1250 Mbit/s and operates at a wavelength of 1310 nm. The module uses a 3.3 V interface and is housed in a compact aluminium enclosure measuring approximately 45 × 20 × 115 mm, with a weight of about 32 g. Its form factor and electrical characteristics make it suitable for short- to medium-range fiber links in network switches and compatible Netgear equipment.

Advantages

The transceiver provides a straightforward SFP interface with a standardized electrical supply of 3.3 V and supports a 1250 Mbit/s line rate, allowing integration into existing SFP ports without additional power adaptations. The aluminium housing offers a lightweight and robust package that aids heat dissipation and mechanical protection. Compact dimensions and a small footprint enable installation in dense networking environments where space is limited.

Suitable for

• Short- to medium-range fiber optic links in enterprise networks
• Network switches and routers with SFP slots
• Equipment requiring 1310 nm single-fiber or multimode links operating at 1250 Mbit/s
• Replacement or spare transceivers for compatible Netgear systems

Key specifications

• Interface type: SFP
• Operating wavelength: 1310 nm
• Maximum data transfer rate: 1250 Mbit/s
• Supply voltage: 3.3 V
• Housing material: aluminium
• Approximate dimensions: 45 × 20 × 115 mm
• Weight: 0.032 kg

How to use

Insert the AGM732F-C into an available SFP port on a compatible switch or router while the device is powered down or follow hot-swap guidance from the equipment vendor. Connect the appropriate 1310 nm fiber cable and secure any required fiber connectors. Ensure the host device recognizes the module; check link status and interface settings in the network equipment management console. Verify that data rate and wavelength parameters match the remote transceiver or optical link specifications before placing the link into production.

Recommendations

Use clean, inspected fiber connectors and follow manufacturer guidance for DOM compatibility if provided by the network equipment vendor. Confirm interoperability with the host device and, where applicable, load any vendor-specific settings required by the switch or router. Store spare modules in anti-static packaging and handle the transceiver by the housing to minimize contamination of optical interfaces.
