Signálny kábel APC AP940-1525A, 4,57 m, DB9 na RJ45, konektor samec/samica, čierny

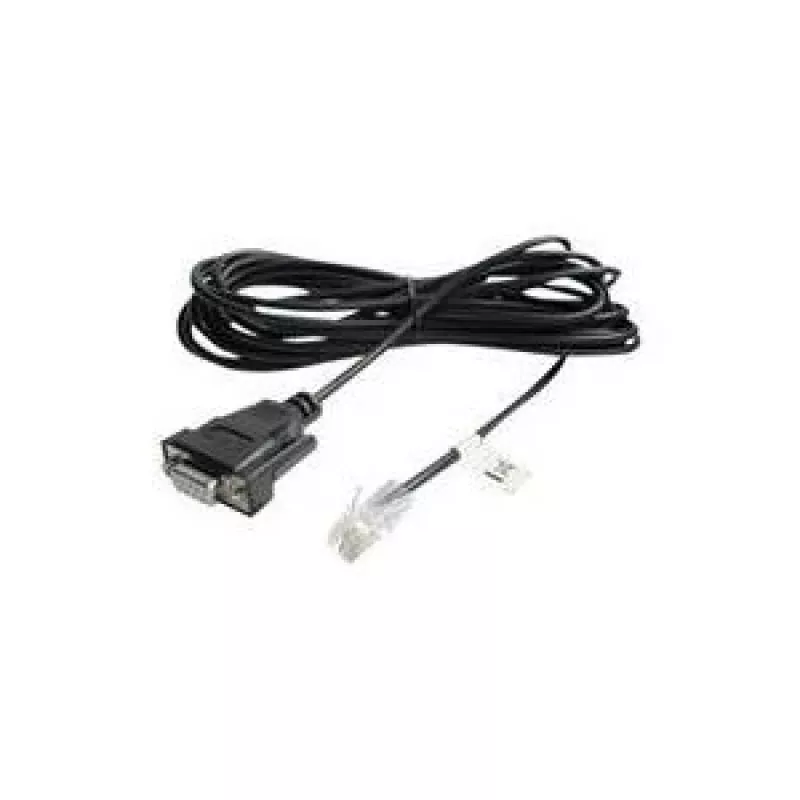

APC AP940-1525A is a 4.57 m signal cable with a DB9 (male) to RJ45 (female) configuration, designed to provide a dedicated serial/console connection between APC UPS units and network equipment, desktops, workstations or servers. The cable is black and intended for management, data and control signalling between devices.

Advantages

The APC AP940-1525A offers a ready-made, industry-standard DB9-to-RJ45 connection that simplifies linking UPS units to consoles or serial ports on network devices. Its 4.57 m length provides sufficient reach in typical rack and desktop installations, and the cable is supplied as a single, ready-to-use unit suitable for management and monitoring tasks.

Suitable for

• Connecting APC UPSs to network equipment for remote management
• Console or serial connections to desktops and workstations
• Linking UPS units to servers for data/control signalling

Key specifications

• Model: AP940-1525A
• Length: 4.57 m
• Connectors: DB9 (male) to RJ45 (female)
• Color: Black
• Packaging: single piece
• Dimensions (packaged): 222 × 108 × 57 mm
• Weight (packaged): 200 g
• Brand: APC
• MPN: AP940-1525A
• EAN: 731304310822

How to use

Connect the DB9 male end to the serial/COM port on the UPS or device that uses a DB9 interface and insert the RJ45 female end into the corresponding RJ45 console port on the receiving device. Ensure both devices are powered off or follow hot-plugging guidance in the device manuals when making connections. After physical connection, configure serial port parameters (baud rate, parity, data bits, stop bits) on the connected devices as required for console or management communication.

Recommendations

Route the cable to avoid sharp bends and areas with heavy foot traffic; secure with cable ties as needed. Verify connector orientation before insertion to prevent damage to ports. Use the cable for management and signalling purposes only and follow APC and equipment vendor guidelines for serial connections.
