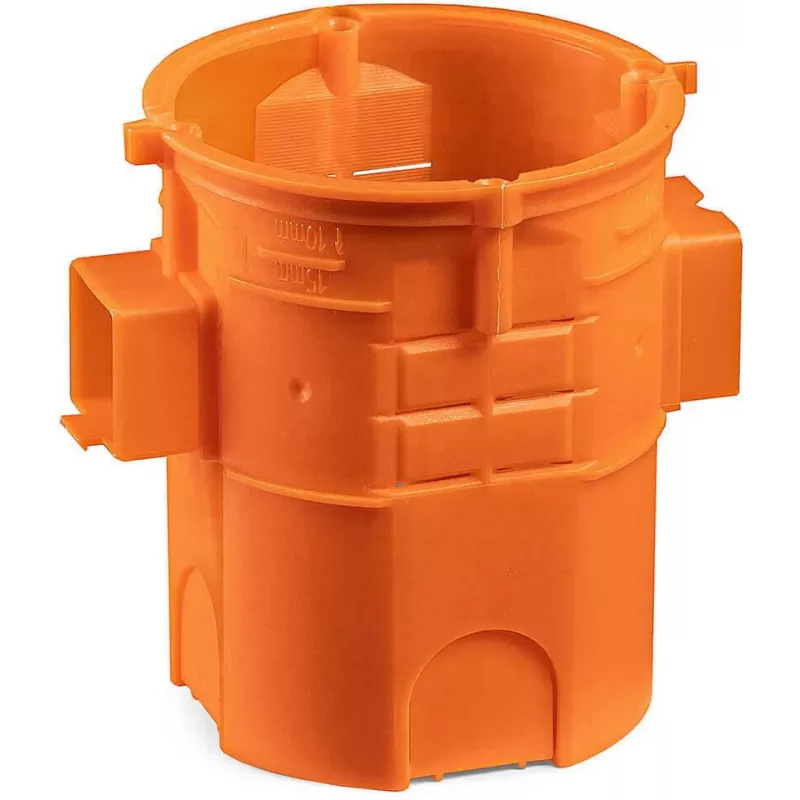

SIMET S60GF Zápustná odbočná krabica, spájateľná, extra hlboká, 60 mm, oranžová

For installers who need dependable connections in solid walls, the SIMET S60GF stands apart with its extra-deep 61 mm chamber and connectable design. Unlike standard round boxes, this model lets you link multiple units horizontally or vertically, creating a modular network without sacrificing stability. The vivid orange polypropylene body is easy to spot during rough-in, and its 8 cable entries with break-out membranes simplify wiring in brick or concrete.

Highlights

• Extra-deep 61 mm interior for comfortable wire bending and connector space
• Connectable housing – join boxes side-by-side or stacked for multi-gang setups
• Robust polypropylene (PP) construction, halogen-free and glow wire resistant to 850°C
• Eight cable entry points with easy knock-out membranes for flexible conduit routing
• IP20 protection, rated for 400 V / 16 A, compliant with PN-EN 60670-1:2005

In daily use

Mounting the S60GF is straightforward: set it into the prepared recess, secure with mortar or plaster, and bring cables through any of the eight entries. The connectable feature means you can align boxes precisely for multi-gang switch or socket combinations – no more uneven gaps. The orange colour provides high visibility against grey concrete, reducing the chance of accidental covering before wiring is complete. Its operating range from -25°C to +60°C ensures performance in unheated spaces or hot attics.

Full specifications

• Type: Surface-mounted (flush) junction box, connectable
• Shape: Round

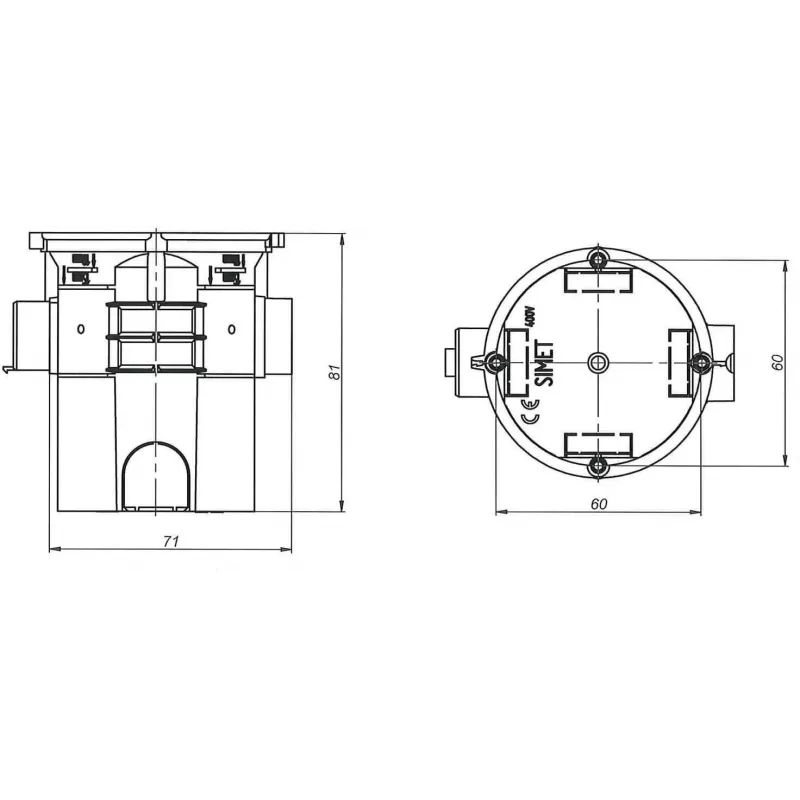

• Nominal diameter: 60 mm
• Depth: 61 mm (extra-deep)
• Material: Polypropylene (PP), halogen-free
• Colour: Orange
• Number of cable entries: 8
• Connectability: Yes (horizontal and vertical)
• Ingress protection: IP20
• Glow wire test: 850°C
• Operating temperature: -25°C to +60°C
• Rated voltage: 400 V
• Rated current: 16 A
• Application: Solid walls (brick, concrete, etc.)
• Mounting: Recessed, for plaster/mortar
• Standard compliance: PN-EN 60670-1:2005

Final note

Choose the SIMET S60GF when your project demands extra depth, modular expansion, and a tough, code-compliant enclosure. It’s a practical choice for professional electrical installations in residential and commercial buildings.
