Sklolaminátový kábel EFB Elektronik LC-ST 50/125µ OM3 15m

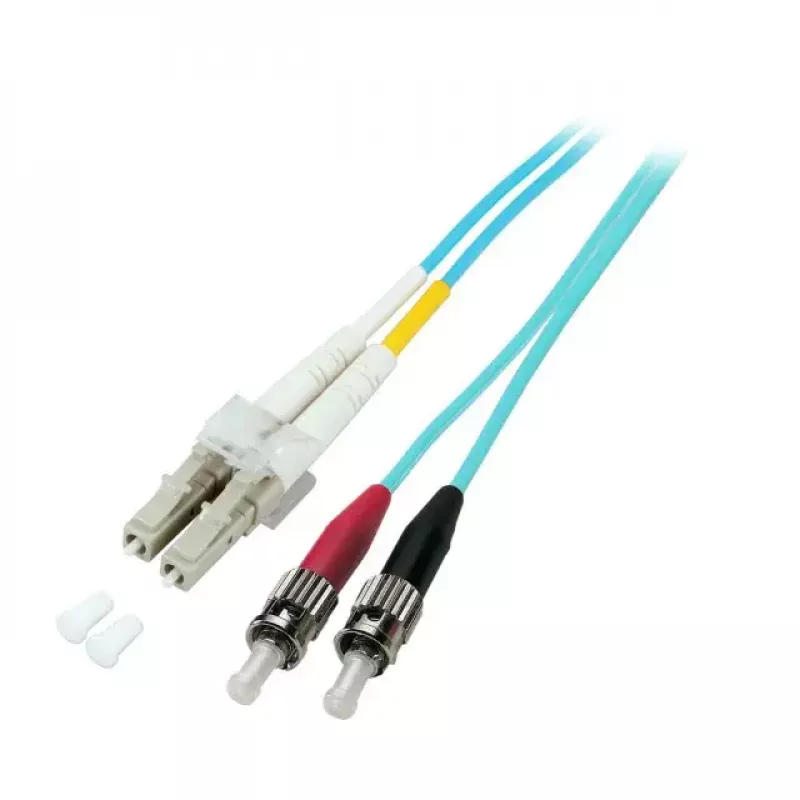

The EFB Elektronik LC‑ST 50/125µ OM3 fibre optic cable is a 15 m duplex patchcord designed for structured cabling environments. It uses 50/125 µm multimode OM3 fiber and combines LC and ST connectors to provide a short, reliable connection between active device ports and passive interfaces in data networks. The cable follows common international standards for fibre jumpers and is individually tested with a supplied test protocol.

Advantages

The cable features aramid yarn reinforcement for improved tensile strength and long‑term stability. Its LSZH (halogen‑free, flame‑retardant) sheath complies with IEC‑60754‑2, IEC‑60332‑1 and IEC‑61034. Connectors meet quality grades for fibre performance: grade B/2 for singlemode and grade A/1 for multimode according to relevant IEC documents. Each patchcord is 100% inspected and delivered with an individual test report.

Suitable for

• Short‑reach multimode network links in enterprise and data‑center racks
• Connections between switches, transceivers and patch panels
• OM3 multimode applications requiring 50/125 µm fiber

Key specifications

• Brand: EFB Elektronik
• Model / MPN: O0313.15
• EAN: 4049759024376
• Length: 15 m
• Fiber type: Multimode 50/125 µm (OM3)
• Configuration: Duplex
• Connectors: LC to ST
• Sheath: LSZH (halogen‑free, flame‑retardant)
• Reinforcement: Aramid yarn
• Inspection: 100% tested with individual test protocol

How to use

Identify the required device ports and passive interfaces, then connect the LC end to the corresponding LC port and the ST end to the ST socket. Ensure connectors are clean before mating to avoid signal loss. Route the cable along existing cable management paths, avoiding sharp bends and high‑tension points. Verify link status on the connected devices and consult the supplied individual test protocol for performance verification.

Recommendations

Store and handle the OM3 patchcord in a clean environment; use dust caps when connectors are not in use and maintain bend radius recommendations to preserve fiber performance. For permanent links or environments with different connector standards, consider appropriate adapters or pre‑terminated assemblies.
