Skriňa na zváranie optických vlákien Telegärtner H02050A0004

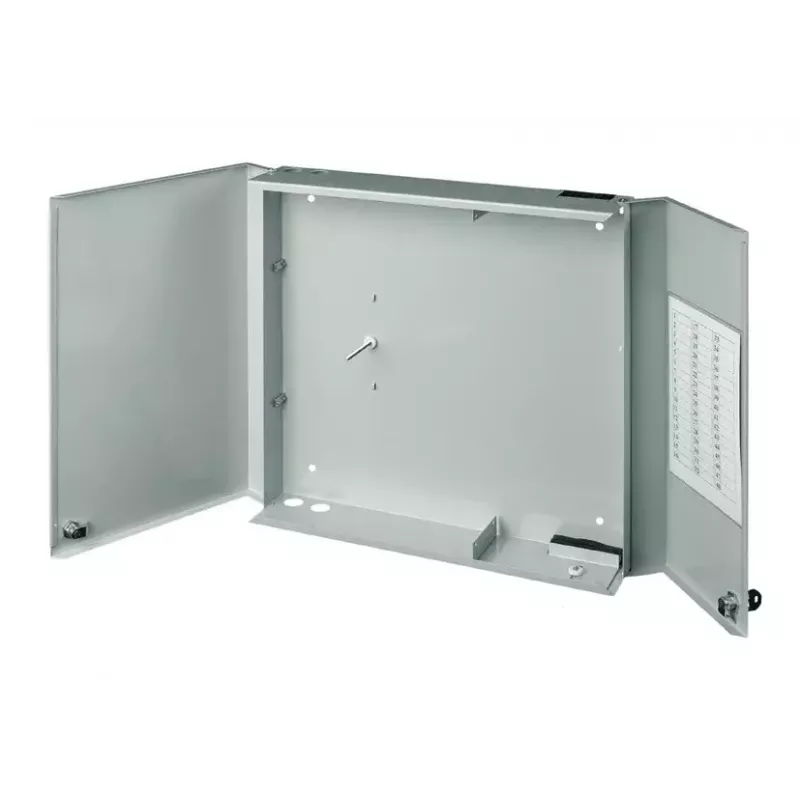

The Telegärtner H02050A0004 fibre optic splice enclosure is a durable aluminium housing designed for organised storage and protection of fibre splices. The grey enclosure measures 440 mm (W) × 95 mm (D) × 440 mm (H) and provides secure access for installation and maintenance of optical fibres and splice cassettes.

Advantages

This enclosure features two separately lockable swivel doors for controlled access and four cable entry holes compatible with M25 glands—two on the top and two on the bottom. It accommodates up to eight splice cassettes and includes additional strain-relief clamps and guiding clips to secure and route fibres and cables inside the housing. Constructed from aluminium, the unit offers mechanical protection and a compact footprint suitable for a range of installation environments.

Suitable for

• Indoor fibre splice storage and management
• Telecommunications cabinets and rack installations
• FTTx distribution points and building entry points
• Small to medium fibre deployment where up to 8 splice cassettes are required

Key specifications

• Brand: Telegärtner
• Model / MPN: H02050A0004
• EAN: 4018359088392
• Material: Aluminium
• Dimensions (W×D×H): 440 × 95 × 440 mm
• Maximum splice cassettes: 8
• Cable entries: 4 × M25 compatible holes (2 top, 2 bottom)
• Access: Two separately lockable swivel doors
• Includes: Strain-relief clamps and fibre/cable guiding clips

How to use

Mount the enclosure in the intended indoor location or rack space and secure it according to local installation rules. Fit M25 glands into the provided cable entry holes and route incoming fibres through the entries. Install splice cassettes up to the maximum of eight and perform splicing following standard fibre handling procedures. Use the supplied strain-relief clamps and guiding clips to secure fibres and maintain bend radii. Close and lock the swivel doors to protect the splices after completing installation.

Recommendations

Use only compatible M25 cable glands and ensure correct bend radius and strain relief for all fibres. Perform splicing and handling in clean conditions and follow manufacturer safety and installation guidelines to maintain optical performance and mechanical integrity.
