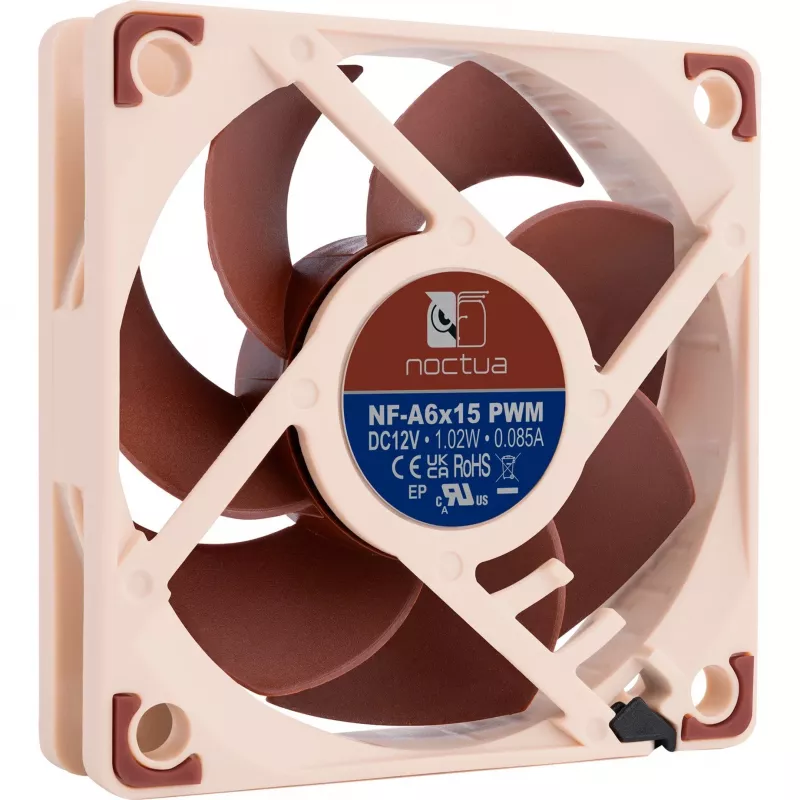

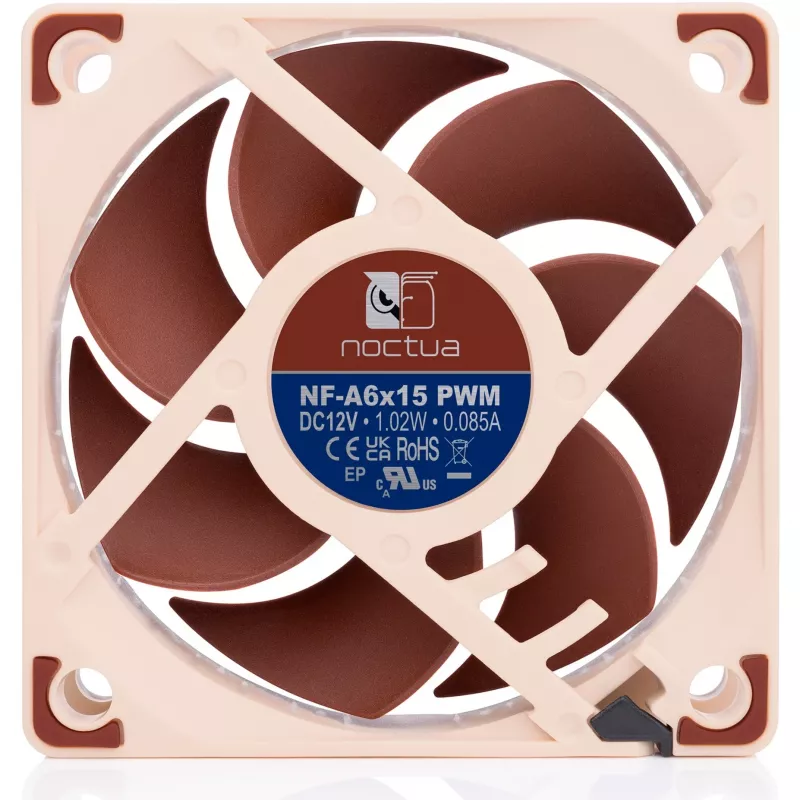

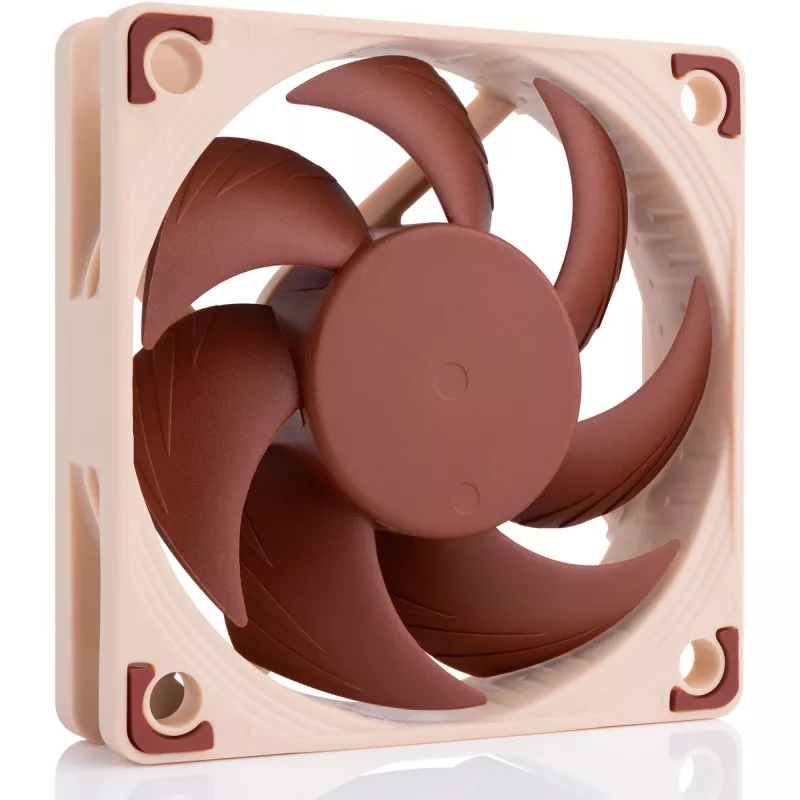

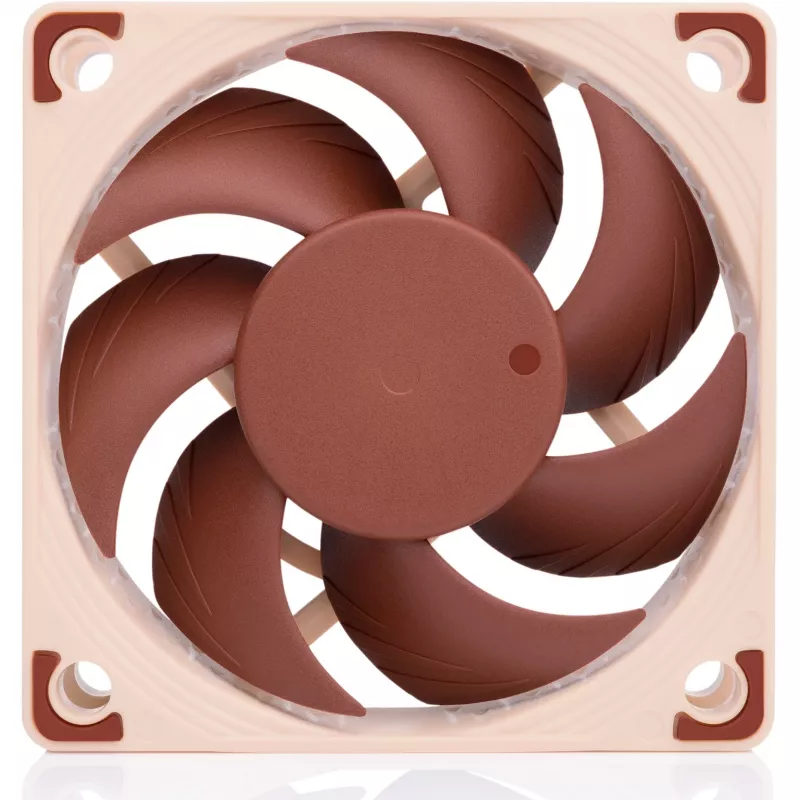

Skriňový ventilátor Noctua NF-A6x15 PWM 60mm, PWM ovládanie, tichý dizajn

Noctua NF-A6x15 PWM is a 60 mm case fan engineered for compact chassis cooling where quiet, reliable airflow is required. The fan features PWM support for automated speed control from compatible 4-pin motherboard or controller headers and a low-noise design optimized for continuous operation in small form-factor PCs, HTPCs and network devices. Its compact 60 mm frame and conventional mounting pattern allow straightforward replacement or addition to confined spaces without major modifications.

Advantages

The NF-A6x15 PWM combines a low-noise impeller profile with precision-engineered blades that reduce turbulence and increase static pressure for effective airflow in restricted environments. PWM control enables automatic adjustment of fan speed according to system temperature, improving energy efficiency and minimizing acoustic output under light load. The fan is built for long-term stability and reliable operation, with manufacturing focused on smooth bearings and vibration-damping features to reduce transfer of noise to the chassis.

Suitable for

• Small form-factor desktop PCs and mini-ITX builds
• Home theater PCs (HTPC) and compact media enclosures
• Network equipment, NAS units and small servers
• Cooling tight spaces around GPUs, chipsets or VRM areas

Key specifications

• Fan size: 60 mm diameter
• Thickness: 15 mm
• Interface: 4-pin PWM connector for automatic speed control
• Design focus: low-noise operation and optimized blade geometry
• Intended use: chassis cooling in compact systems

How to use

Install the fan into a compatible 60 x 60 x 15 mm mounting location using the standard screw holes or compatible vibration-damping mounts. Connect the 4-pin PWM cable to a motherboard or fan controller header that supports PWM for automatic speed regulation. Ensure orientation matches the intended airflow direction and that power is supplied only after confirming secure mechanical and electrical connections. For systems without a PWM header, the fan may run at a default speed when connected to a 3-pin header depending on the controller.

Recommendations

Place the fan where it can move air unobstructed and avoid tightly packed cable bundles near the intake or exhaust. For lowest noise, enable PWM control in BIOS or your system fan control software and set a temperature curve that keeps the fan at lower speeds under light loads. Regularly check for dust buildup and clean the blades gently to maintain optimal airflow and acoustic performance.
