SMART HOME ALARM KIT/ALARM KIT-EU-11 IMOU

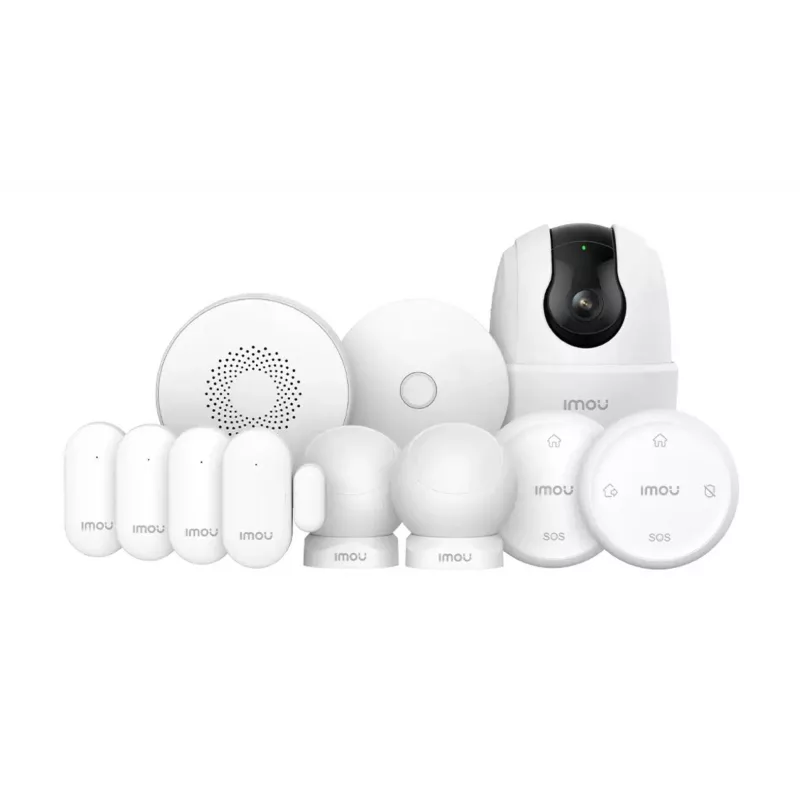

The IMOU SMART HOME ALARM KIT (ALARM KIT-EU-11) is a compact security system for apartments, houses and small offices. The kit contains a ZG2 gateway, ZB1 remote control(s), ZD1 door and window sensors, ZP1 motion sensor(s), ZR1 alarm siren and a Ranger 2C camera. Devices in the kit connect through the IMOU mobile app so you can monitor events, link camera and alarm actions via scenes, and arm or disarm the entire system remotely.

Advantages

The kit provides integrated intrusion detection with multiple sensor types and a camera, centralised control via the ZG2 gateway and smartphone app, and the ability to activate or disable the whole system on demand. Included remote controls allow local arming and disarming, while the siren provides audible alerts. The modular sensor set enables quick installation and basic home security coverage.

Suitable for

• Apartments and private homes
• Small offices and workplaces
• Temporary sites or short-term installations

Key specifications

• Model: ALARM KIT-EU-11 (SMART HOME ALARM KIT/IMOU)
• Included accessories: Gateway ZG2 x1, Motion Sensor ZP1 x2, Door/Window Sensor ZD1 x4, Alarm Siren ZR1 x1, Remote Control ZB1 x2, Ranger 2C Camera x1
• Product net weight: 1.2 kg
• Unit calculated weight: 1.37 kg
• Unit calculated volume: 0.007867 m³
• Category code: HAU; CN code: 85176200

How to use

Install the ZG2 gateway in a central location and power it according to the included instructions. Place door/window sensors on frames and corresponding doors or windows, and mount motion sensors in rooms where movement detection is needed. Add the Ranger 2C camera to the app for video monitoring. Use the IMOU mobile app to register the gateway and devices, configure scenes linking camera and alarm actions, and set notification preferences. Use the ZB1 remote controls to arm or disarm locally and test the siren to confirm audible alerts.

Recommendations

For reliable detection and coverage, position motion sensors at 2–2.5 m height and avoid pointing them directly at windows or heat sources. Place door/window sensors on clean, flat surfaces and test each sensor after installation. Use the app to create scenes and notification rules that match your daily routines.
