Smart Home ovládanie osvetlenia Nanoxia NXRGBC bezdrôtové čierna biela

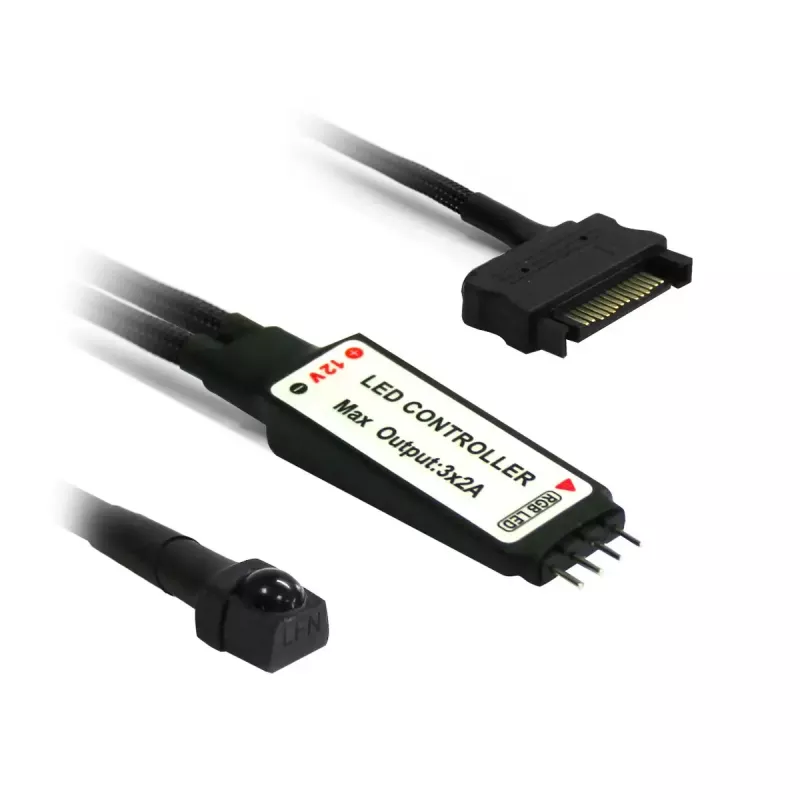

The Nanoxia NXRGBC Smart Home Light Controller is an optional accessory designed for Nanoxia RGB Rigid LED strips. It provides a simple wireless control solution with an infrared remote and connects to a 12V PC power supply via an S-ATA power connector. The controller features two 45 cm cables: one for power and one with the IR receiver, allowing flexible placement inside a PC case or other installations.

Advantages

This controller supports easy wireless operation using the included infrared remote, offers straightforward physical connection to RGB Rigid LED cables, and uses a common S-ATA power connection for reliable 12V power. The two 45 cm cables let you position both the controller and the IR receiver in convenient locations to ensure optimal signal reception and clean cable routing.

Suitable for

• Controlling Nanoxia RGB Rigid LED strips in PC cases
• Adding RGB lighting where a motherboard RGB header is unavailable or unused
• Small home installations that require a compact 12V controller with IR remote

Key specifications

• Model: Nanoxia NXRGBC
• Power input: 12 V via S-ATA power connector
• Current rating: 3 x 2 A
• Interface: Infrared remote control
• Cable lengths: two cables, each 45 cm (one power, one IR receiver)
• Colors available: Black, White

How to use

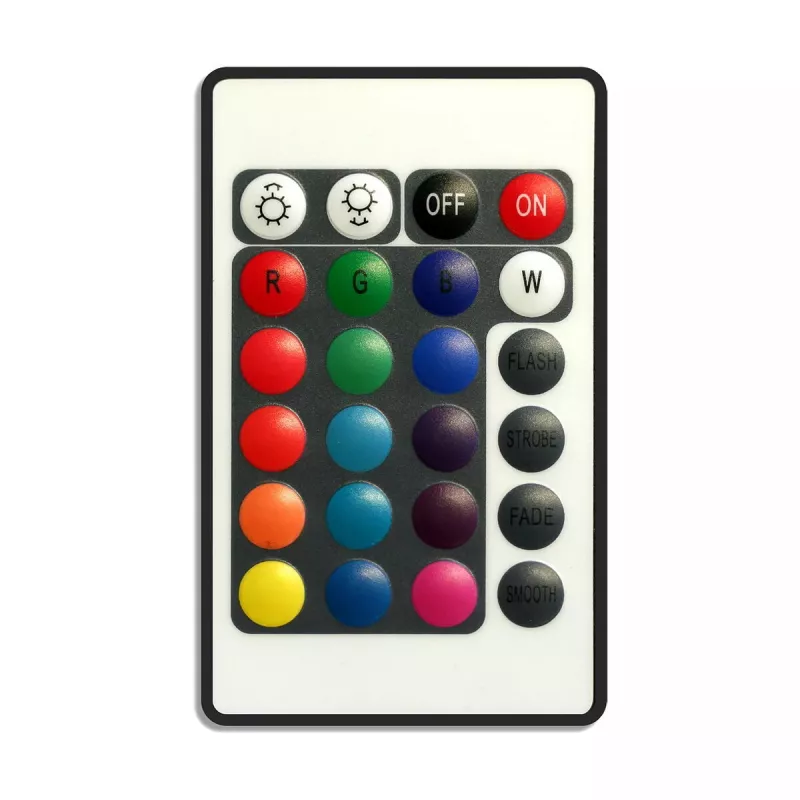

Connect the controller to the RGB Rigid LED cable supplied with your LED strip. Plug the S-ATA power connector into a 12V PC power supply outlet. Place the controller and the IR receiver where the infrared signal from the remote can reach them, then use the included remote control to select colors and lighting modes. If integrating with a motherboard is preferred, connect the LED directly to a compatible RGB header instead of using the controller.

Recommendations

Place the IR receiver in a visible location inside the case or room and avoid blocking it with metal parts. Ensure the S-ATA power connection is secure and that the total current draw does not exceed the controller’s 3 x 2 A rating.
