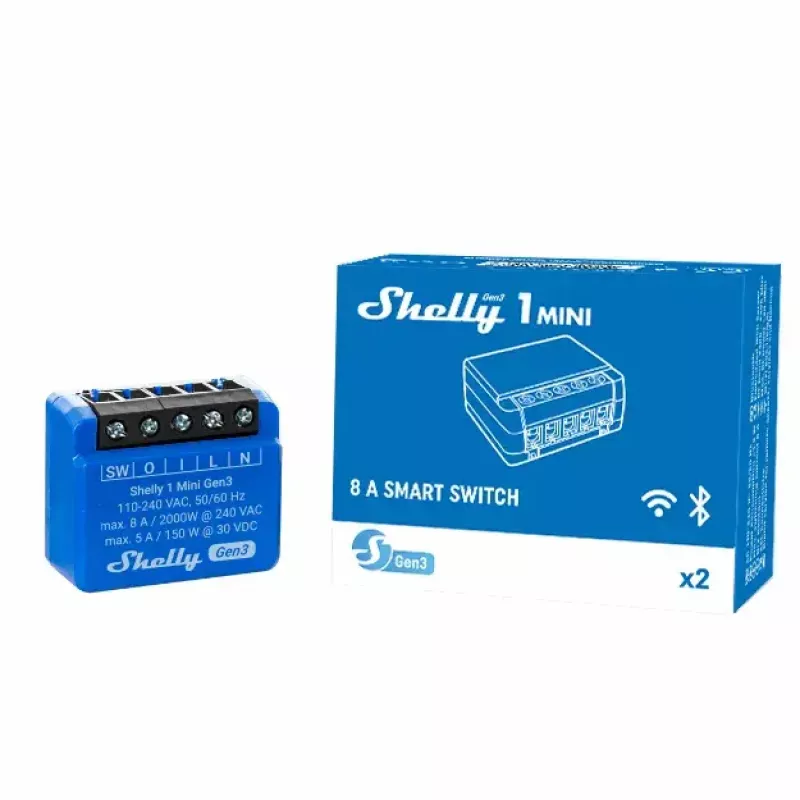

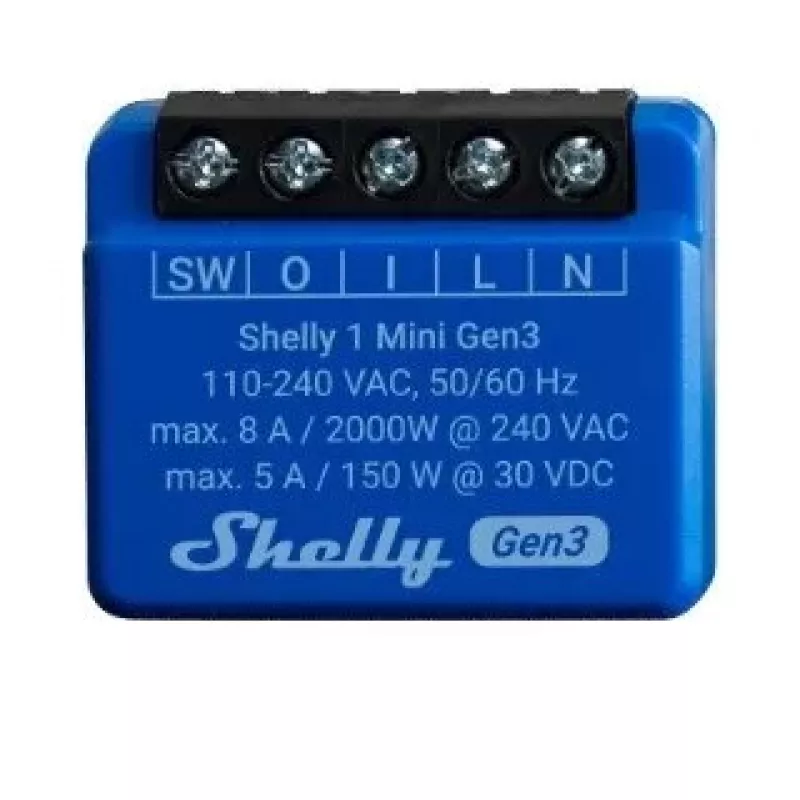

Smart Switch Shelly 1 Mini Gen3 1P Wireless 110-240V

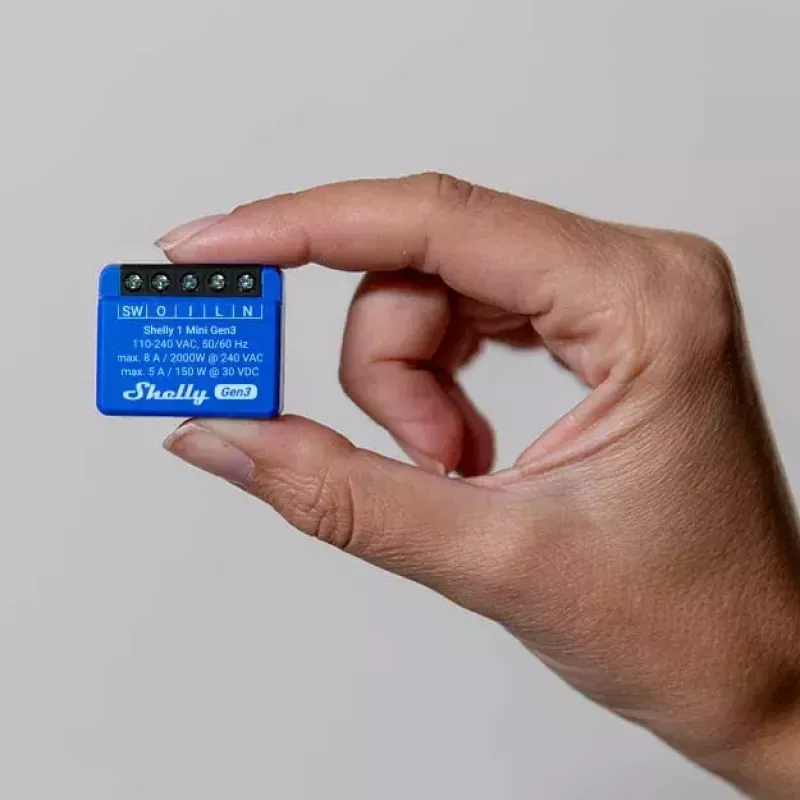

The Shelly 1 Mini Gen3 is a compact Wi‑Fi smart switch for wireless control of small electrical loads. Designed for 110–240 V AC systems, it supports up to 8 A switching and consumes approximately 1.2 W. Its very small dimensions (35 × 16 × 29 mm) make it suitable for installation behind wall switches, inside ceiling roses or tight switch boxes, enabling remote control without a hub.

Advantages

The device combines a miniaturized form factor with full-featured functionality: Wi‑Fi control without a hub, Bluetooth inclusion, dry contact support and built‑in scripting (mjS). The Gen3 hardware uses an 8 MB Shelly chip for improved responsiveness and future updates, including planned Matter compatibility. Shelly 1 Mini Gen3 also supports smart schedules, scenes and integration through the Shelly Smart Control app and common voice assistants.

Suitable for

• Lighting control in tight spaces (ceiling roses, wall boxes)
• Automating small appliances (lamps, coffee makers) up to 8 A
• Integration inside garage door opener housings for remote control
• Irrigation valve control when installed in protected enclosures

Key specifications

• Brand: Shelly
• Model: Shelly 1 Mini Gen3 (Shelly_Plus_1_Mini_G3)
• Power supply: 110–240 V AC
• Maximum switching current: 8 A
• Max switching voltage: 240 V
• Power consumption: ~1.2 W
• Dimensions: 35 × 16 × 29 mm
• Memory: 8 MB (Gen3 Shelly chip)
• Connectivity: Wi‑Fi, Bluetooth
• Contact type: Dry contacts

How to use

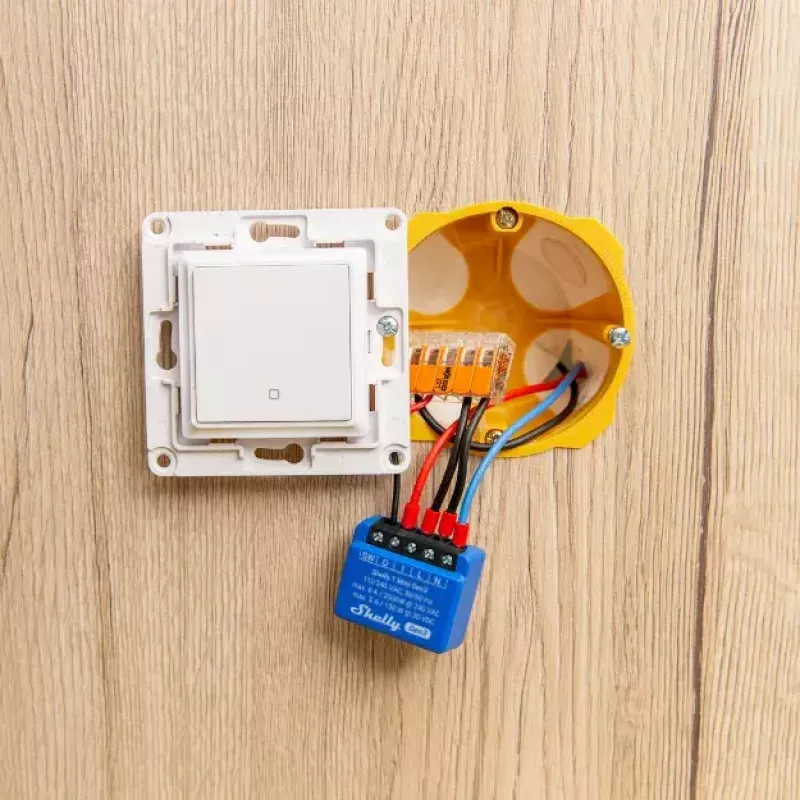

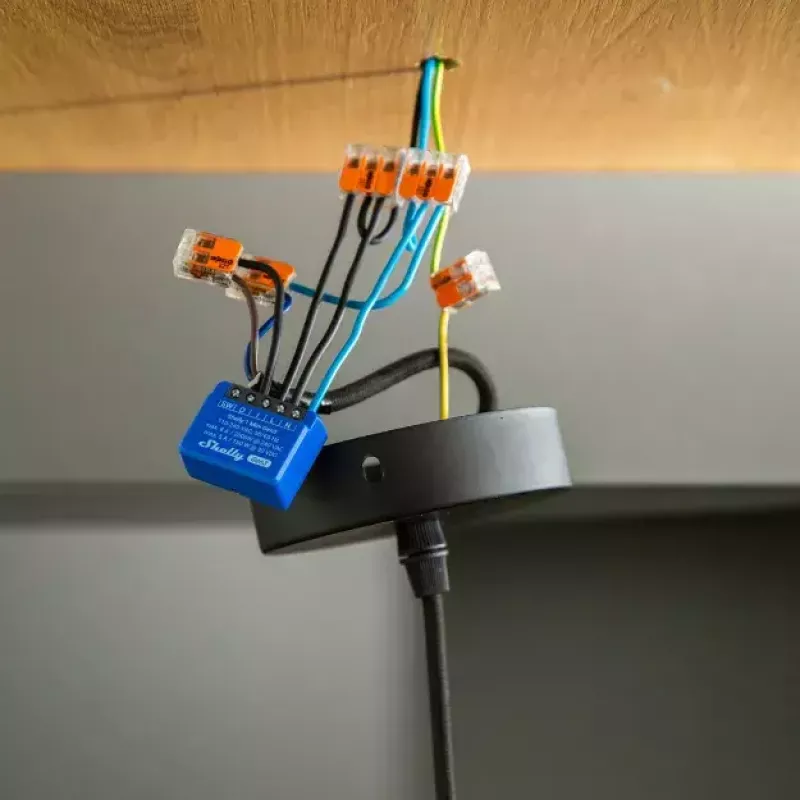

Install the Shelly 1 Mini Gen3 into the desired location (behind a wall switch, inside a lamp ceiling rose, or within an appliance or control box) following local electrical safety rules. Connect the device to the 110–240 V AC supply and wire the switched load to the relay output or dry contact terminals. Use the Shelly mobile app to add the device via Bluetooth for quick inclusion or connect it to your Wi‑Fi network for remote control. Configure schedules, scenes or mjS scripts in the app as needed.

Recommendations

Use the Shelly 1 Mini Gen3 for small to medium loads up to 8 A; avoid connecting devices with inrush currents or loads that exceed the rated current. If installing near moisture or outdoors, place the device in a suitable waterproof enclosure. Follow local wiring standards and, when in doubt, consult a qualified electrician.
