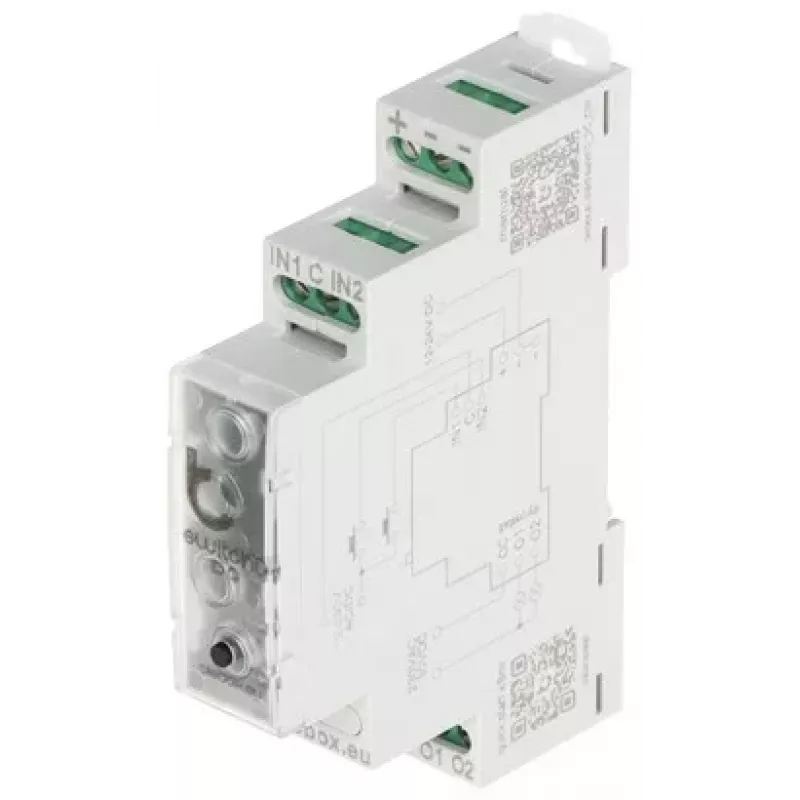

Smart Switch SwitchBox-D-DC-DIN, BLEBOX Wi-Fi

The BLEBOX SwitchBox-D-DC-DIN is a compact, DIN rail-mountable smart relay switch designed for remote and automated control of electrical loads in industrial, commercial, and residential applications. With Wi-Fi connectivity and support for Google Home and Amazon Alexa, it enables seamless integration into modern smart home and building automation systems.

Advantages

Easy installation on standard TS-35 DIN rails, low power consumption (<1W), and a potential-free relay output ensure safe and reliable switching of loads up to 10A at 30V DC. The device can be controlled locally via an external switch input or remotely through the BleBox wBox app, web browser, or REST API. Timer and scheduler functions allow for automated operation, enhancing energy efficiency and convenience.

Suitable for

• Smart home automation (lighting, blinds, pumps)
• Industrial control systems
• Building management (HVAC, access control)
• Remote switching of DC-powered devices

Key specifications

• Connectivity: Wi-Fi 802.11 b/g/n (2.4 GHz)
• Power Supply: 12-24V DC
• Max Load: 10A, 30V DC
• Relay: 1-channel, monostable, potential-free
• Mounting: DIN rail (TS-35)
• Operating Temperature: -20°C to 50°C
• Protection Rating: IP20
• Enclosure Material: ABS Plastic
• Certifications: CE, RoHS

Recommendations

For optimal performance, use a stable 12-24V DC power supply and ensure the Wi-Fi network is within range. The external switch input allows for manual override, making it ideal for retrofit projects.
