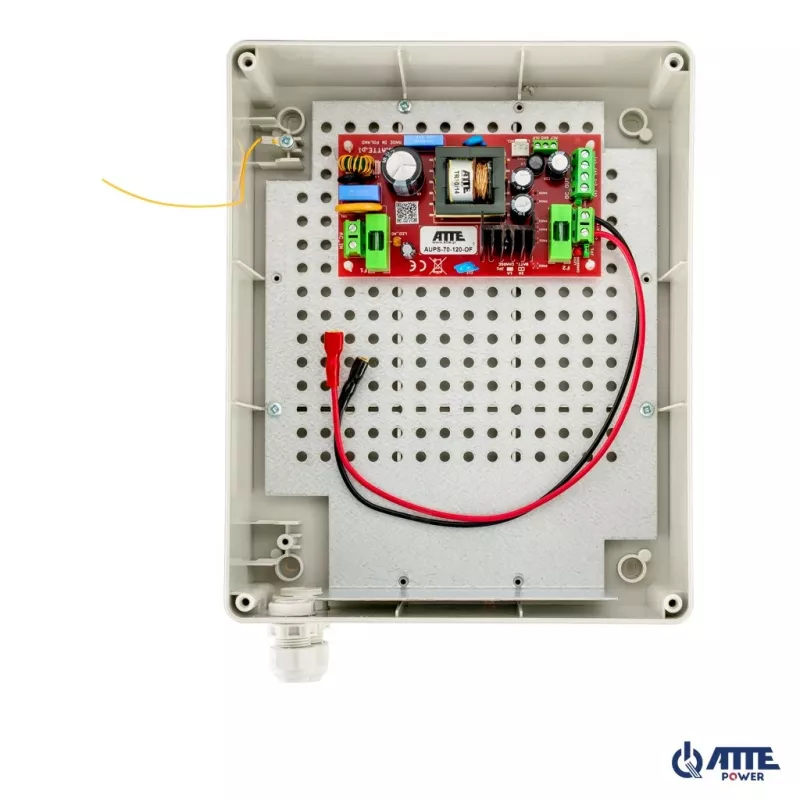

SMPS 12V 6A 72W záložný zdroj ATTE AUPS-70-120-L1

The ATTE AUPS-70-120-L1 is a buffer power supply designed for powering CCTV and access control systems, providing central buffered power for cameras and monitoring devices. It supports lead-acid or dry SLA batteries and features a high-efficiency impulse power supply with low heat generation inside the enclosure.

Key features

• Complete power solution for CCTV devices in a compact enclosure
• Central buffering of power
• Long backup time compared to classic UPS-based systems
• Low heating inside the enclosure due to high power supply efficiency
• Easy mounting of modules with 10.8 mm grid hole pattern
• Designed for lead-acid or dry SLA batteries
• Automatic start when battery is connected without AC power

Specifications

• Brand: Atte
• MPN: AUPS-70-120-L1
• Enclosure material: plastic, grey RAL7035
• Enclosure protection rating: IP56
• Enclosure dimensions (W × H × D): 240 × 190 × 90 mm
• Mounting: wall-mounted, mounting brackets
• Power supply type: impulse, efficiency 90%
• Power: 80 W continuous, 110 W maximum
• Output voltage: 11.5–13.9 V (mains operation), 10.5–12.6 V (battery operation)
• Battery charging current: 1 A or 2 A selectable via JP1 jumper
• Battery disconnection voltage: 10.2 V, automatic return after mains voltage returns
• Overload protection: 9 A threshold
• Short-circuit protection: 6.3 A fuse for battery operation; for mains operation a power supply restart is required
• Reverse battery connection protection: 6.3 A fuse
• Technical outputs: open collector type, max 50 mA per output; OUF – no voltage +DC_OUT, ACF – no voltage AC
• Operating temperature range: -10°C to +40°C
