Softing Psiber CableMaster PoE tester sieťových káblov s PoE detekciou a záťažovým testom 226102

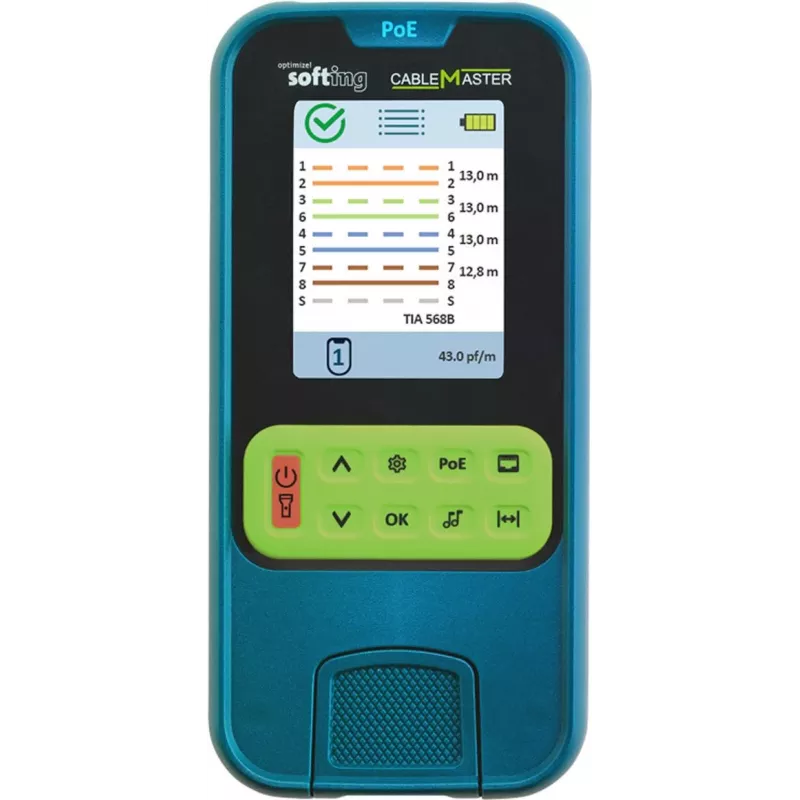

Network cable tester with integrated PoE detection and load test, capable of verifying cable integrity, measuring length, and identifying PoE parameters up to IEEE 802.3bt. The Softing Psiber CableMaster PoE is a professional handheld tester for RJ45 data cables and coaxial connections, combining wiremap, length measurement, tone generation, and PoE analysis in one rugged device. Its backlit LCD displays clear pin-to-pin wiremaps and PoE voltage/power readings, while the built-in port flasher helps locate connected switch ports.

Advantages

The CableMaster PoE streamlines network troubleshooting by providing instant verification of cable continuity, length, and PoE availability. With support for IEEE 802.3af/at/bt, it detects PSE type, class, and measures actual voltage and power under load, ensuring connected devices receive sufficient power. The graphical wiremap identifies opens, shorts, miswires, and split pairs at a glance. Its tone generator with multiple tones works with standard inductive probes for cable tracing, and the included remote identifiers allow one-person testing of multiple drops.

Suitable for

• Network installers and technicians commissioning Ethernet cabling
• IT support staff troubleshooting PoE-powered devices such as IP cameras, access points, and VoIP phones
• Maintenance teams verifying cable runs in industrial or commercial buildings
• Anyone needing to test both UTP/STP data cables and coaxial connections

Key specifications

• Tests RJ45 (UTP/STP) and coaxial (F-connector) cables
• Wiremap, length measurement up to 610 m (2000 ft), distance to fault
• PoE detection and load test for IEEE 802.3af/at/bt (PoE/PoE+/PoE++)
• Measures PoE voltage, power, PSE type, and class (0-8)
• Link speed detection: 10/100/1000BASE-T
• Port flashing function to identify switch ports
• Backlit LCD display
• Powered by 4 x AA alkaline batteries (approx. 20 hours continuous use)
• Includes main unit, remote unit, coax adapter, patch cables, carrying case

Recommendations

For reliable network cable testing with advanced PoE analysis, the Softing Psiber CableMaster PoE is an excellent choice. Its rugged design and comprehensive feature set make it suitable for both field technicians and in-house IT teams. Always use the included remote unit for accurate length measurements and keep spare AA batteries on hand for extended jobs.
